Component Locations

COMPONENT LOCATIONS

Component	Location
Engine Compartment Relay Box	In right side of engine compartment. See Fig 3 .
Multipurpose Fuse Box	Under lower left side of dash
Power Window Relay	In relay box behind left side of dash. See Fig 2 .
Sub Fusible Link No. 9	In right side of engine compartment. See Fig 3 .
System Ground	Behind far left side of dash. See Fig 1 .

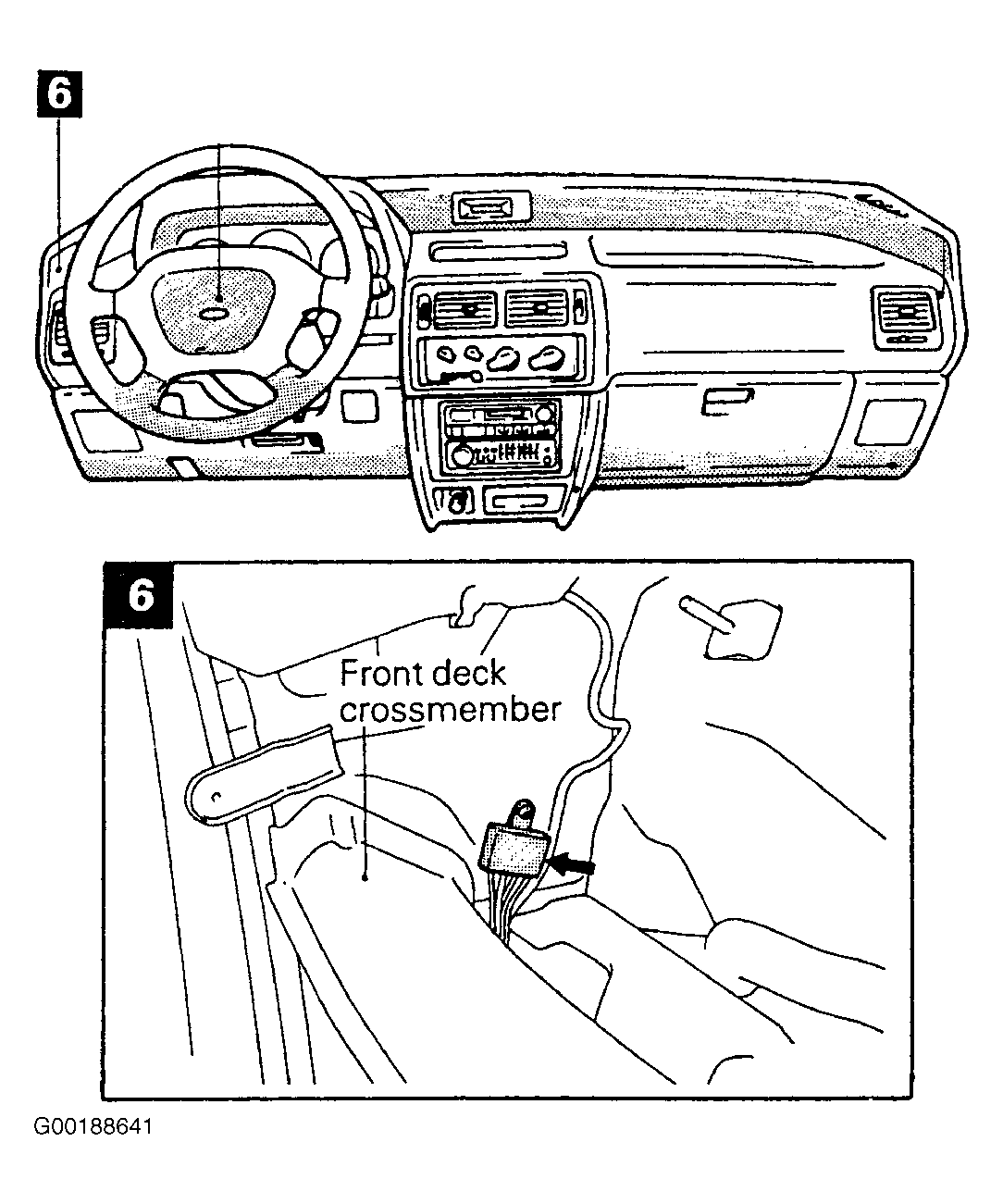

Fig 1: Locating Power Window Ground Point

G00188641

Courtesy of CHRYSLER CORP.

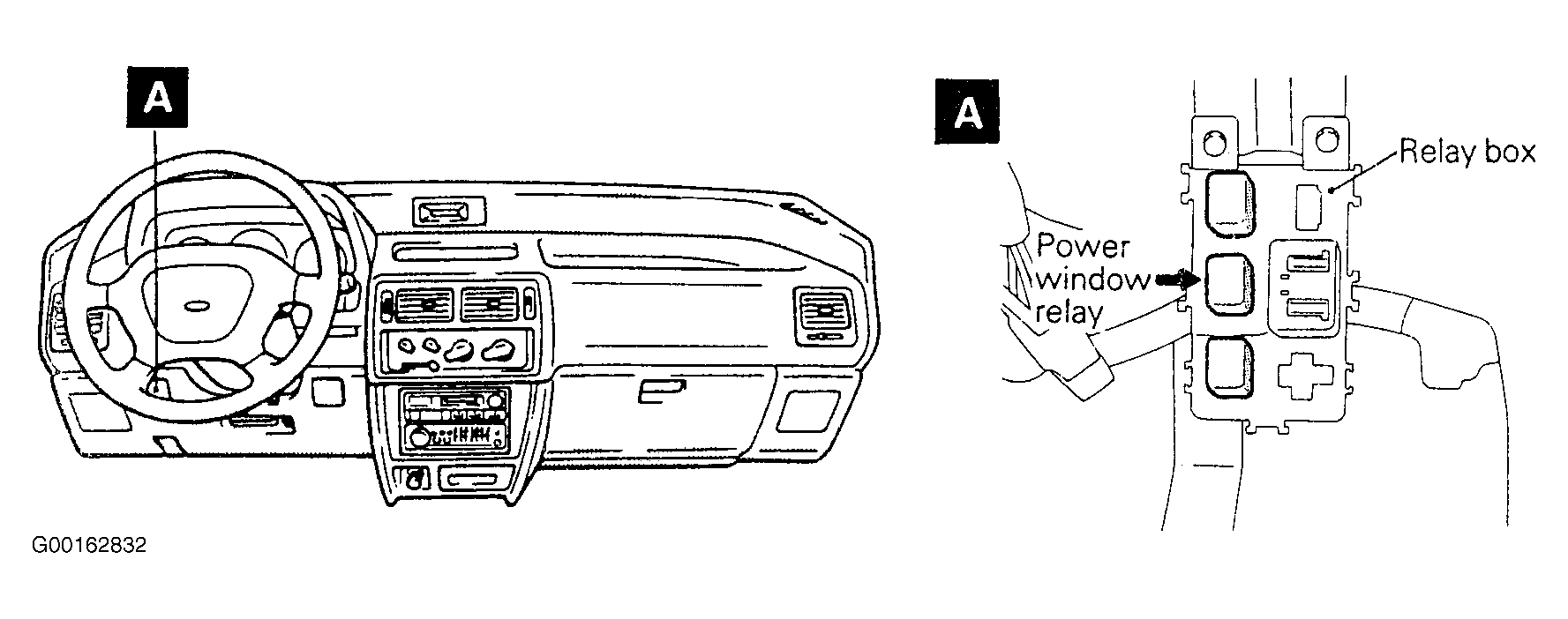

Fig 2: Identifying Power Window Relay Location

G00162832

Courtesy of CHRYSLER CORP.

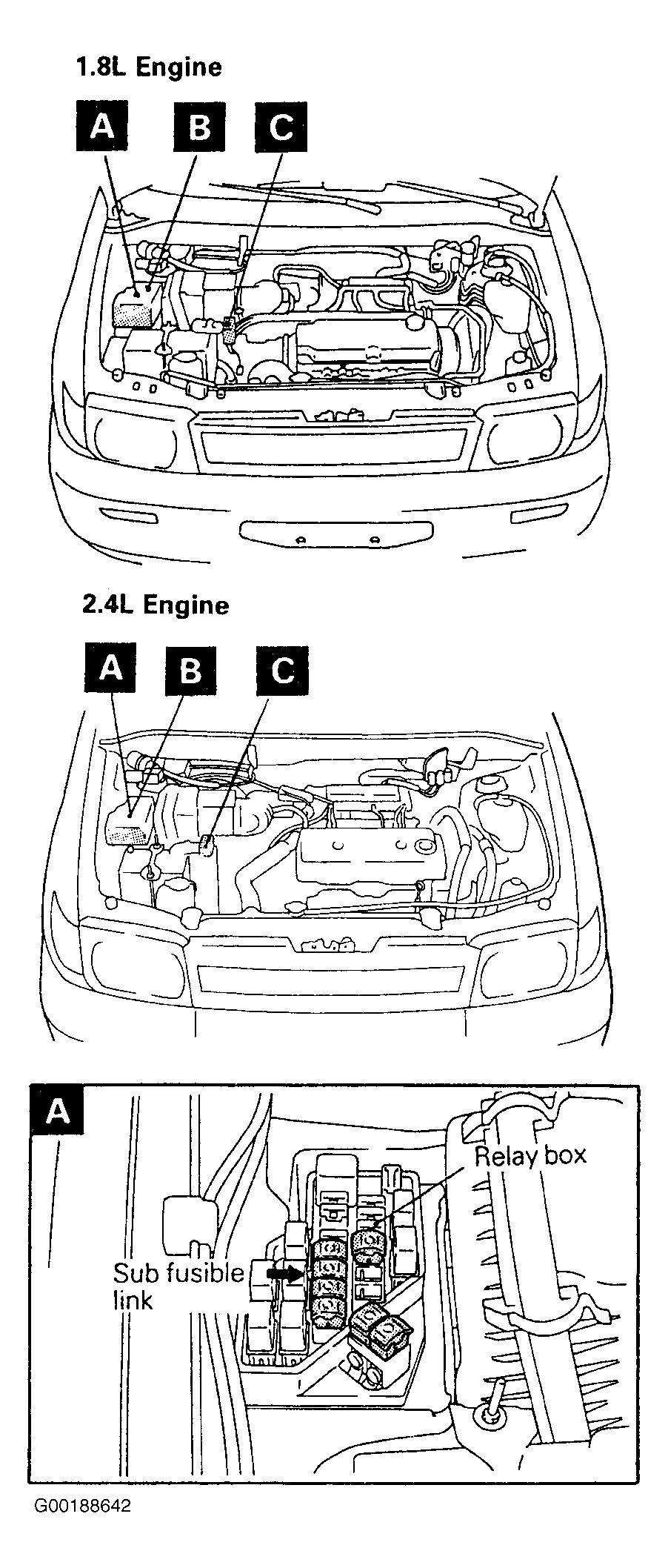

Fig 3: Locating Sub Fusible Link No. 9

G00188642

Courtesy of CHRYSLER CORP.
