Door Glass
- Remove the door trim and waterproof film. See FRONT DOOR TRIM

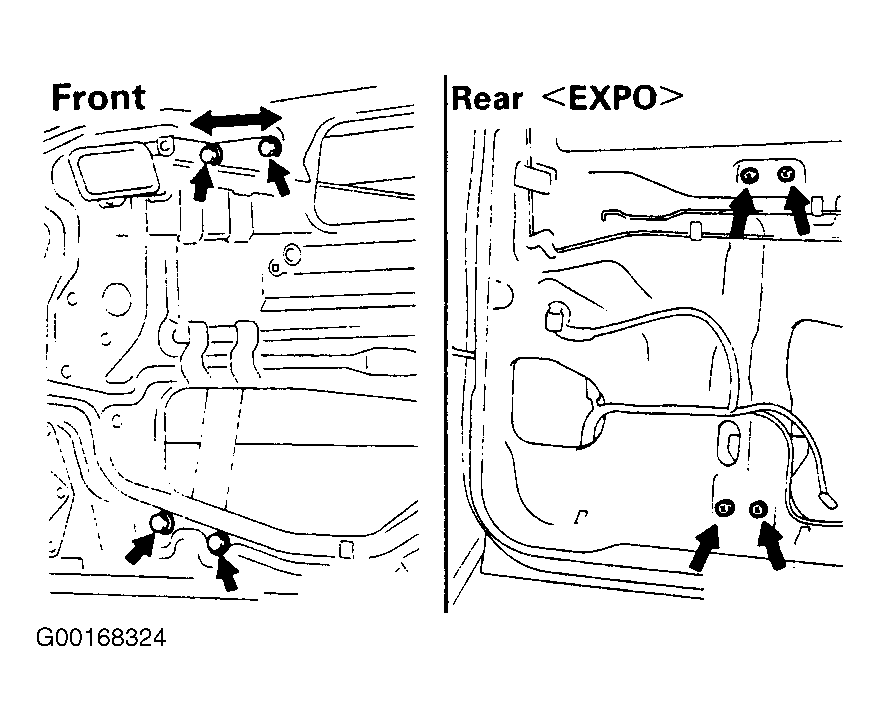

in REMOVAL & INSTALLATION. Loosen the installation bolt of the window regulator assembly; then move the upper installation back and forth and adjust the tilted angle of the glass. See Fig 1
.

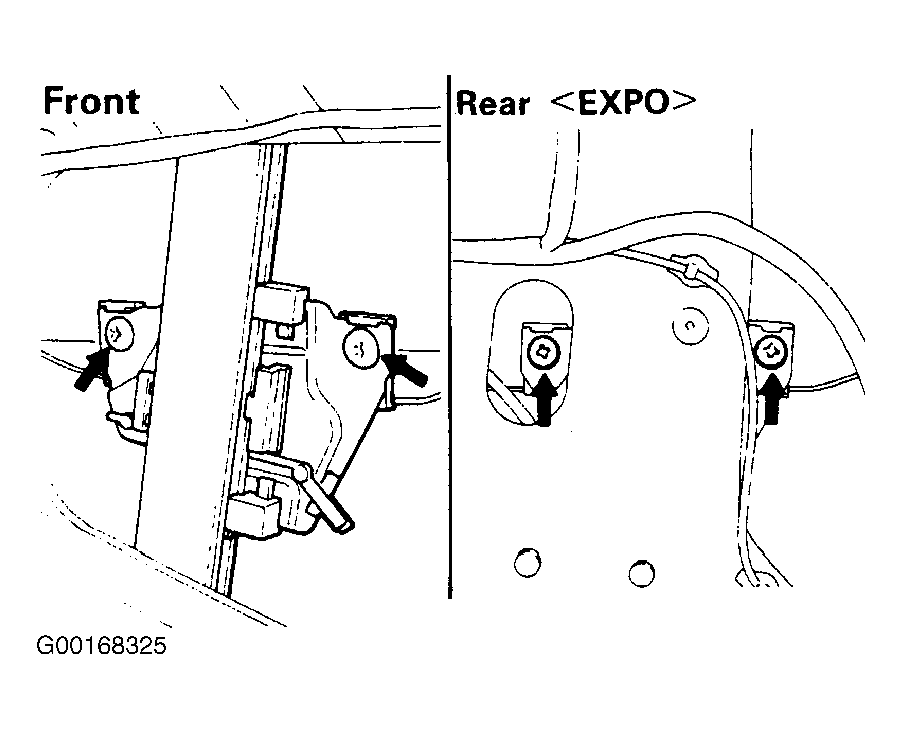

- Lower the door window glass to the position of the access hole. Loosen the door glass installation screw, and adjust the forward/backward position of the glass. See Fig 2
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
