Component Locations
COMPONENT LOCATIONS
Component
Location
Body Ground
Behind far left side of instrument panel, above kick panel.
No. 5 (15A) Power Window Fuse
In fuse panel under lower left side of instrument panel.

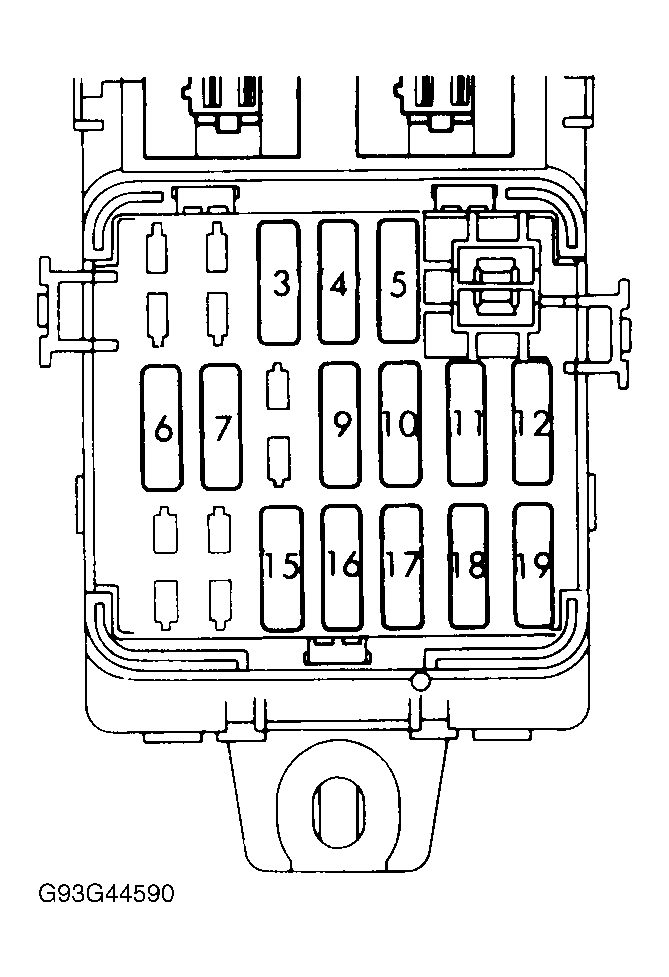

Fig 1: Fuse Panel Identification (1992)
Courtesy of CHRYSLER CORP.
