NS-2A: Testing Ignition Circuit

Fig 1: Test NS-2A Schematic - DOHC Testing Ignition Circuit
G92E26314

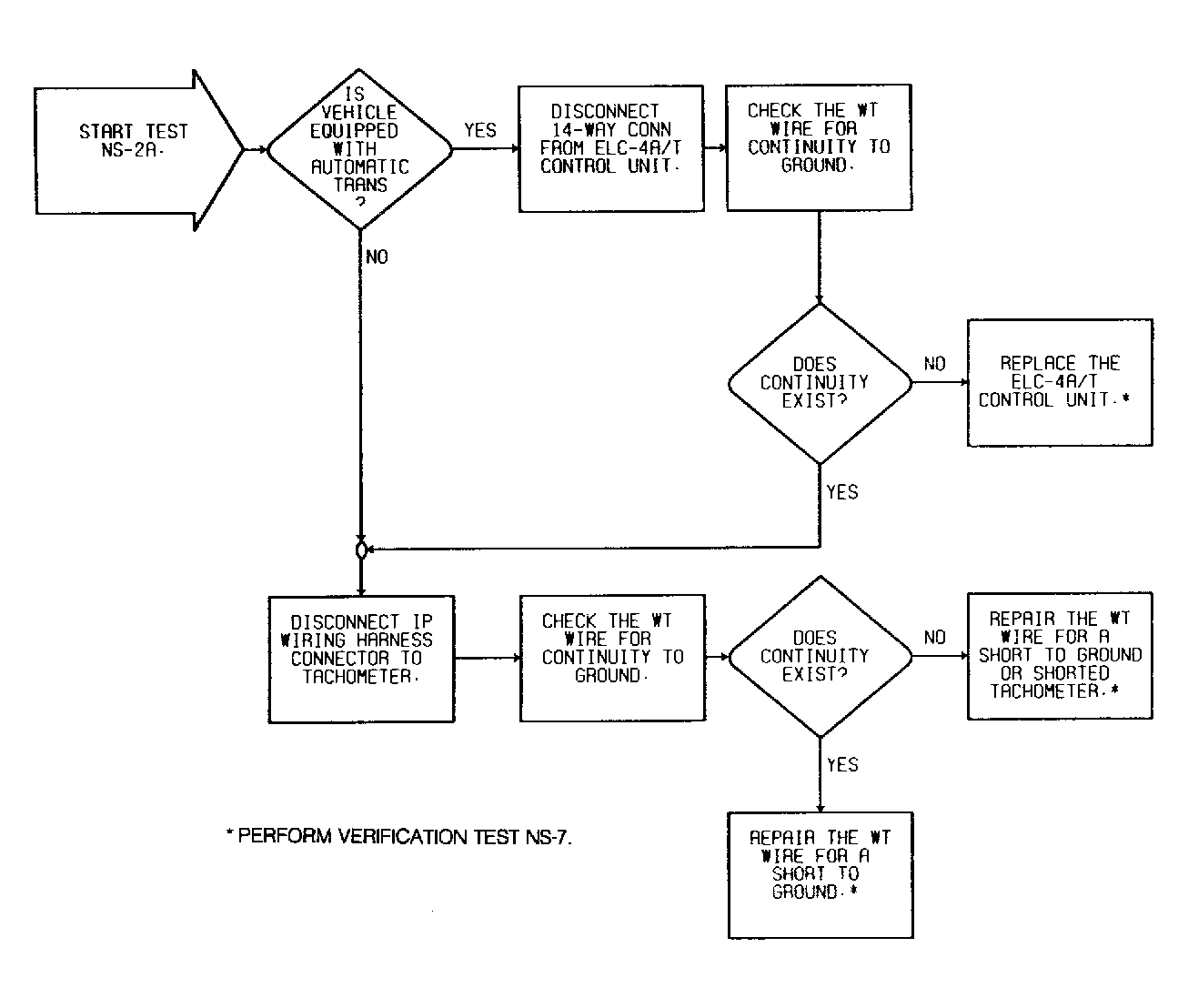

Fig 2: Test NS-2A Flow Chart - DOHC Testing Ignition Circuit
G92J26319
