NS-1: Checking For Fault Codes

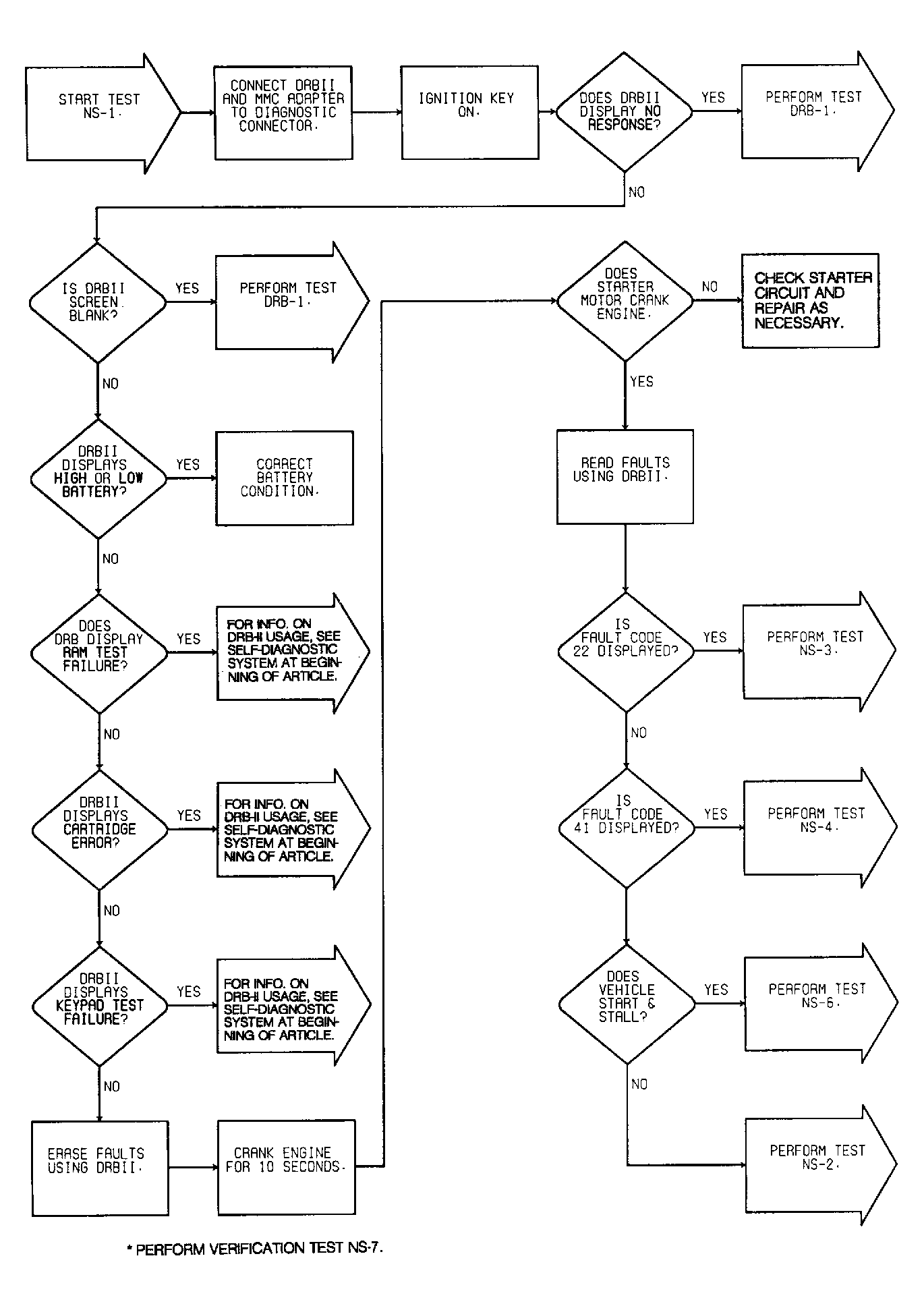

Fig 1: Test NS-1 Schematic Flow Chart - DOHC Checking For Fault Codes

G92D26313
