NS-5: Testing Fuel Pump Circuit

Fig 1: Test NS-5 Schematic (Turbo) - DOHC Testing Fuel Pump Circuit

Fig 2: Test NS-5 Schematic (Non-Turbo) - DOHC Testing Fuel Pump Circuit

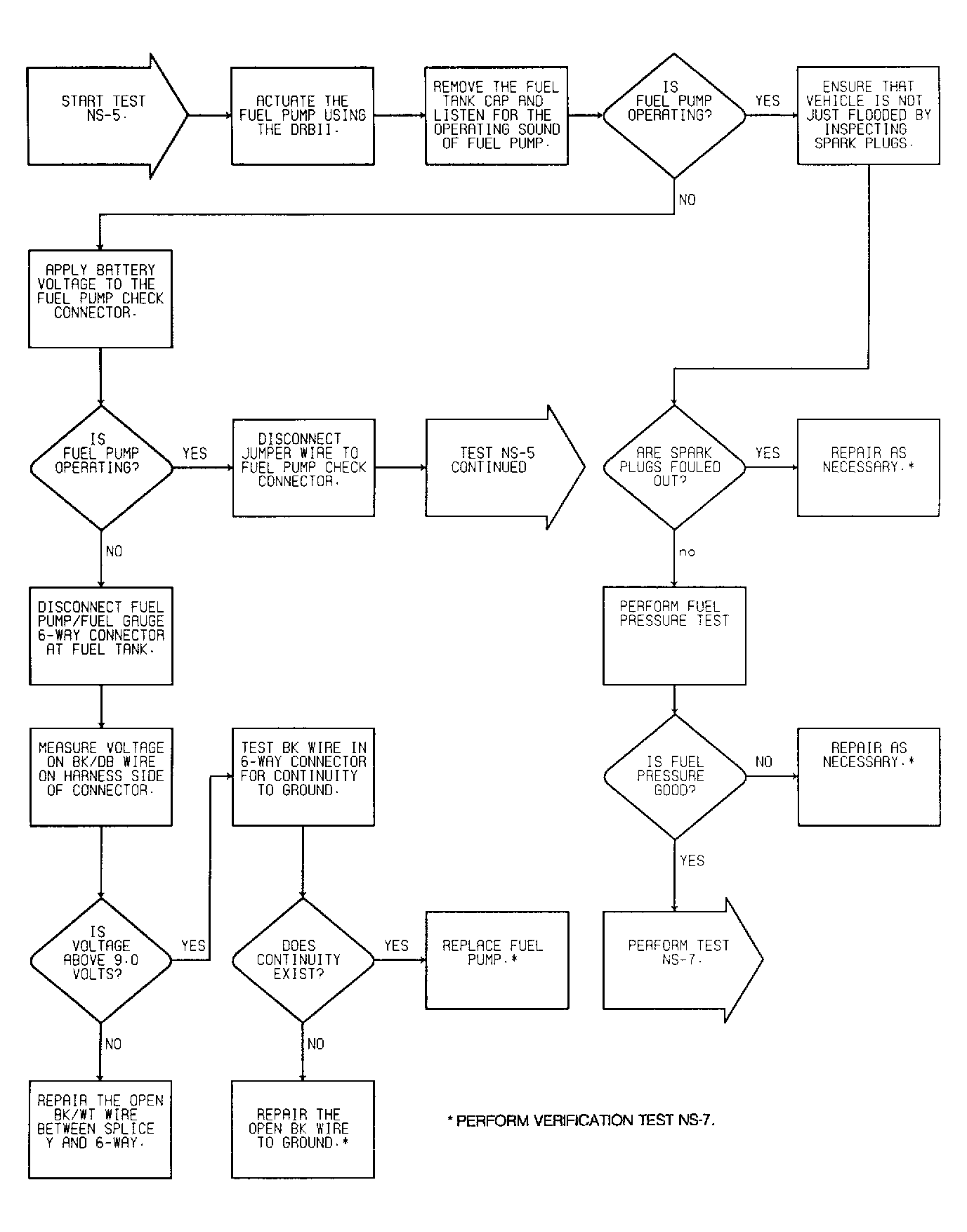

Fig 3: Test NS-5 Flow Chart - DOHC (1 Of 3) Testing Fuel Pump Circuit

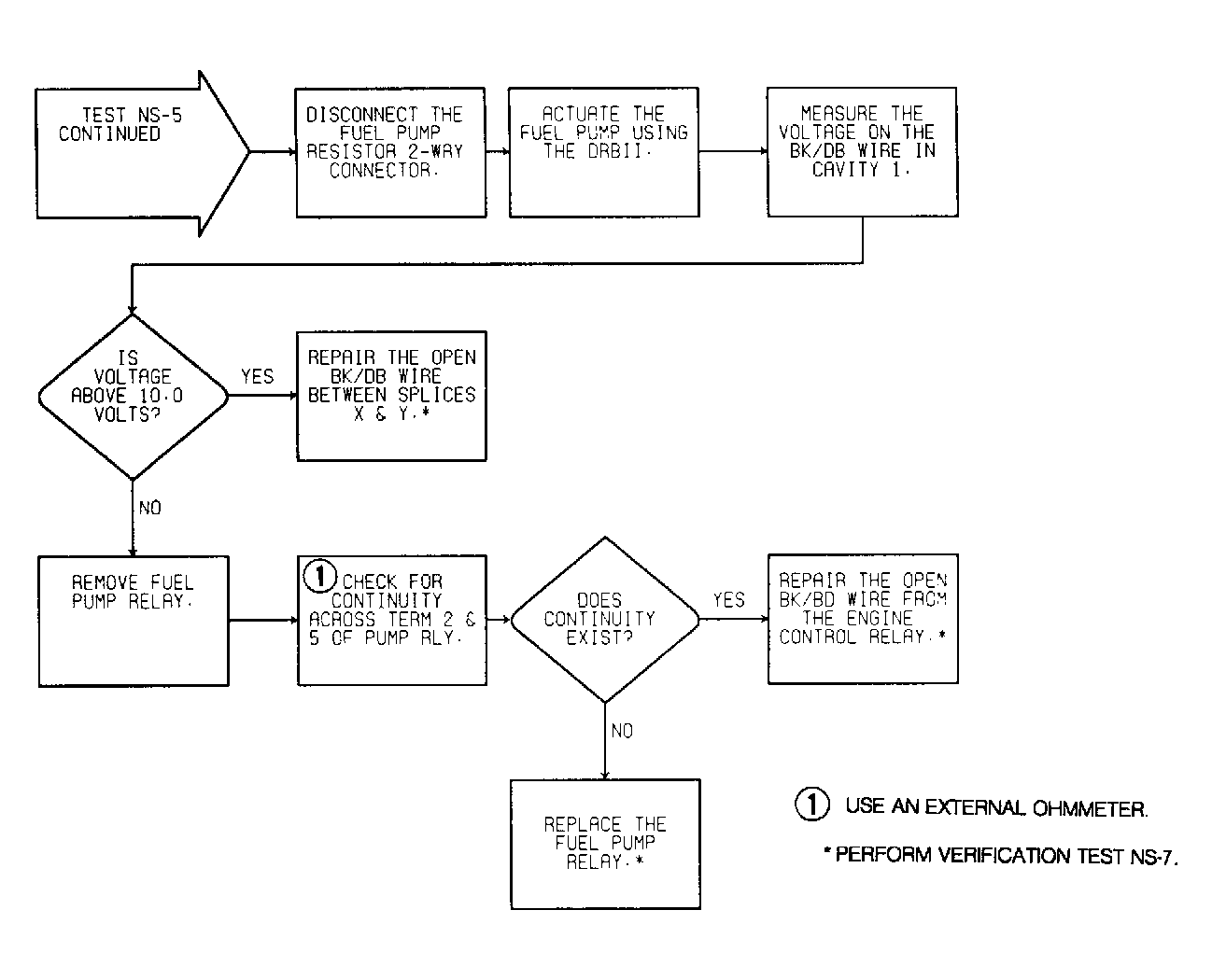

Fig 4: Test NS-5 Flow Chart - DOHC (2 Of 3) Testing Fuel Pump Circuit

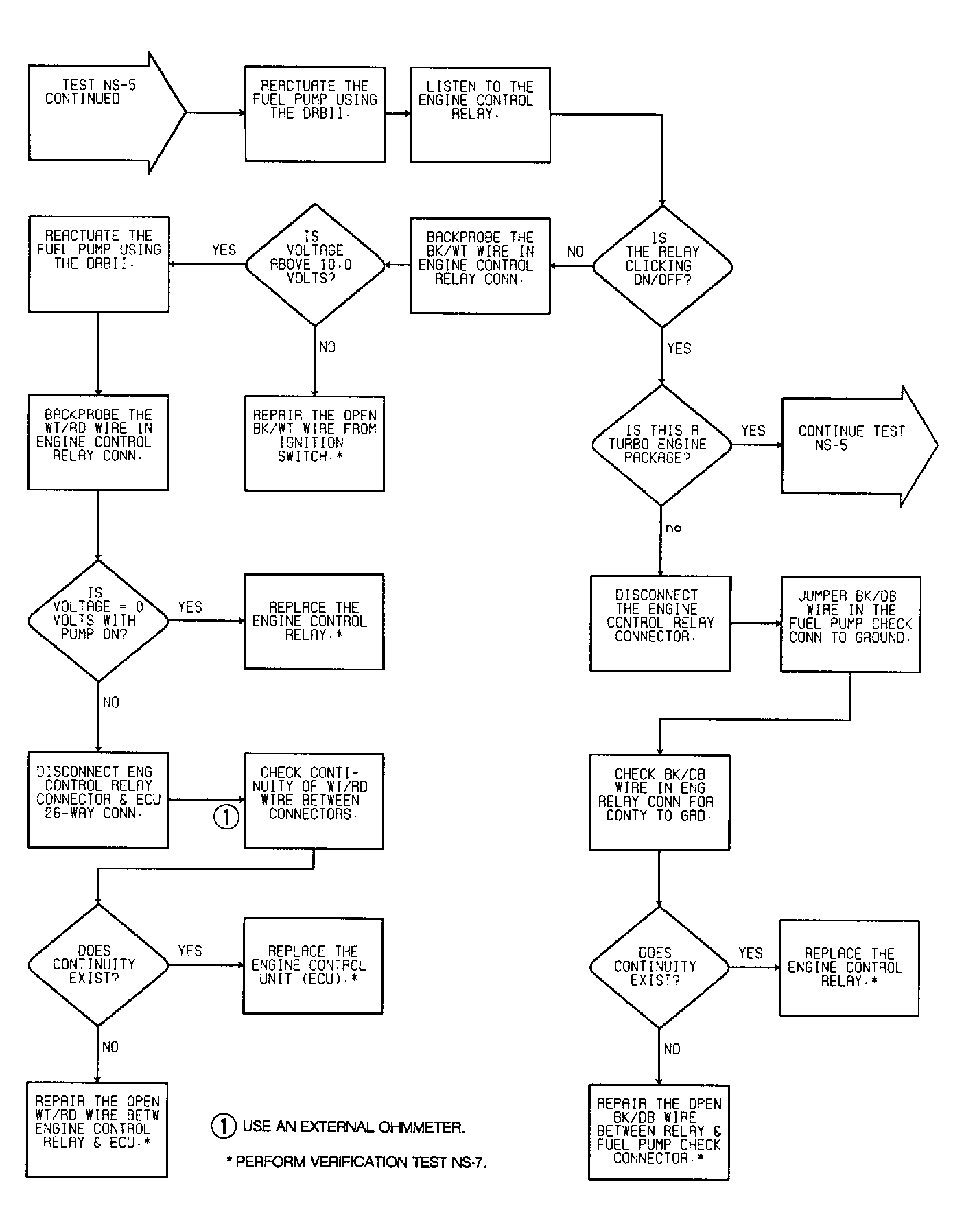

Fig 5: Test NS-5 Flow Chart - DOHC (3 Of 3) Testing Fuel Pump Circuit
