Dr-7: Code 22, Crank Angle Sensor Circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Dr-7: Code 22, Crank Angle Sensor Circuit
Fig 1: Test DR-7 Schematic - Code 22 - DOHC Crank Angle Sensor Circuit

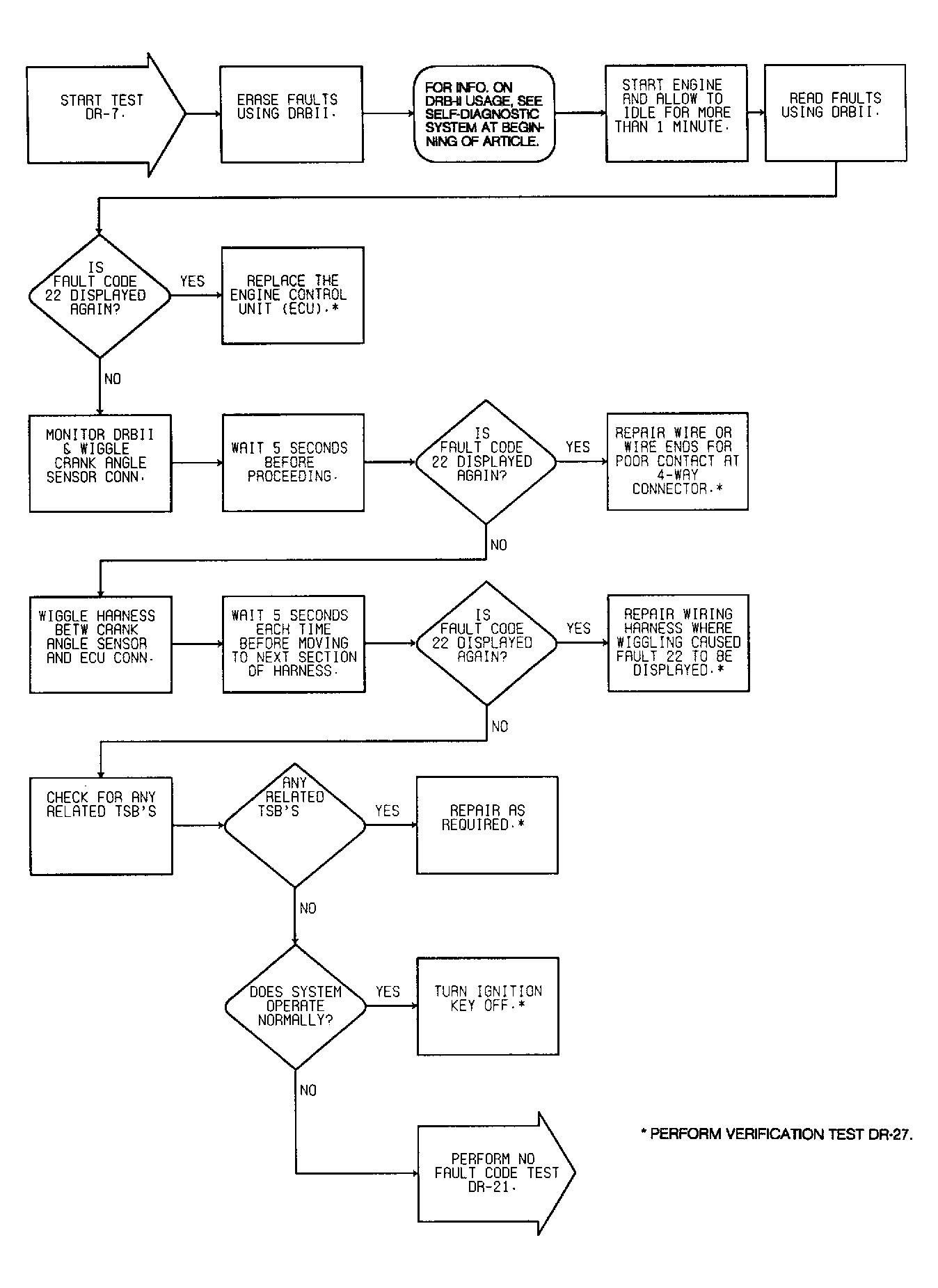

Fig 2: Test DR-7 Flow Chart - Code 22 - DOHC Crank Angle Sensor Circuit.
