Dr-21: No Fault Code Switch Tests

Fig 1: Test DR-21 Schematic - DOHC No Fault Code Switch Tests

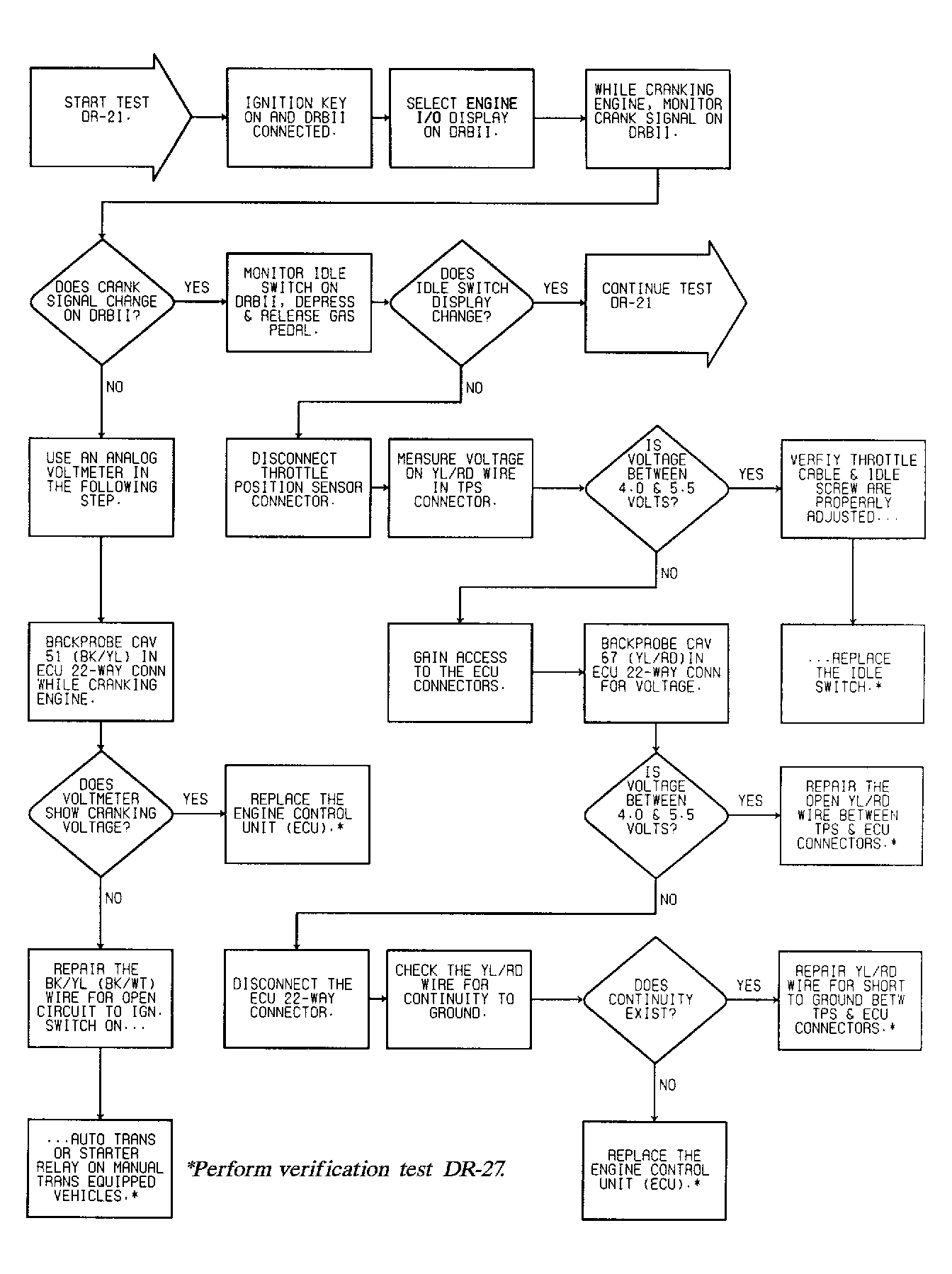

Fig 2: Test DR-21 Flow Chart - DOHC (1 Of 3) No Fault Code Switch Tests

Fig 3: Test DR-21 Flow Chart - DOHC (2 Of 3) No Fault Code Switch Tests

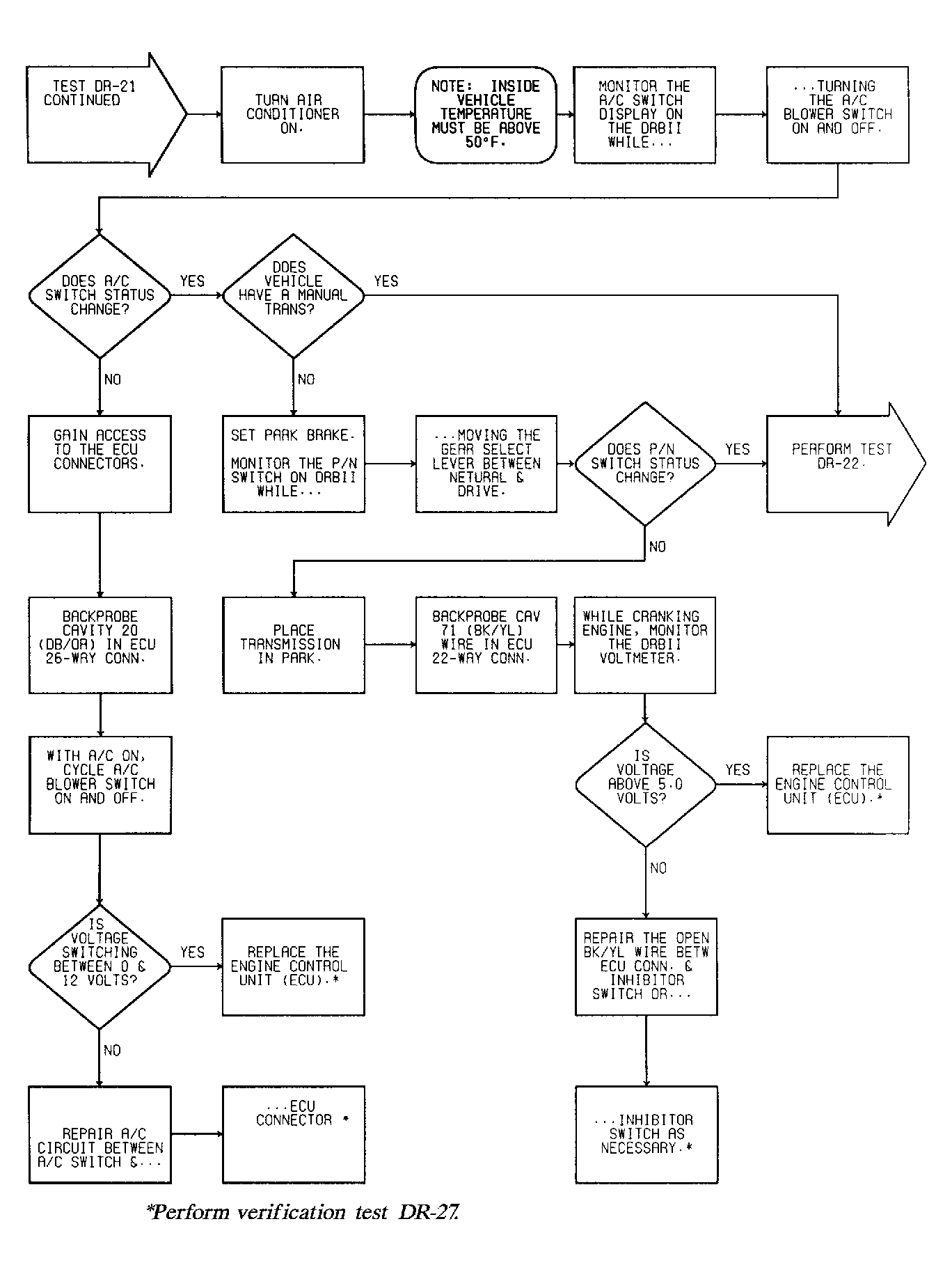

Fig 4: Test DR-21 Flow Chart - DOHC (3 Of 3) No Fault Code Switch Tests
