Scan Tool Testing and Procedures

5. CHECKING THE CONTROL SYSTEM
(1) Use the multi-use tester and check, following the procedure the control system checking chart.

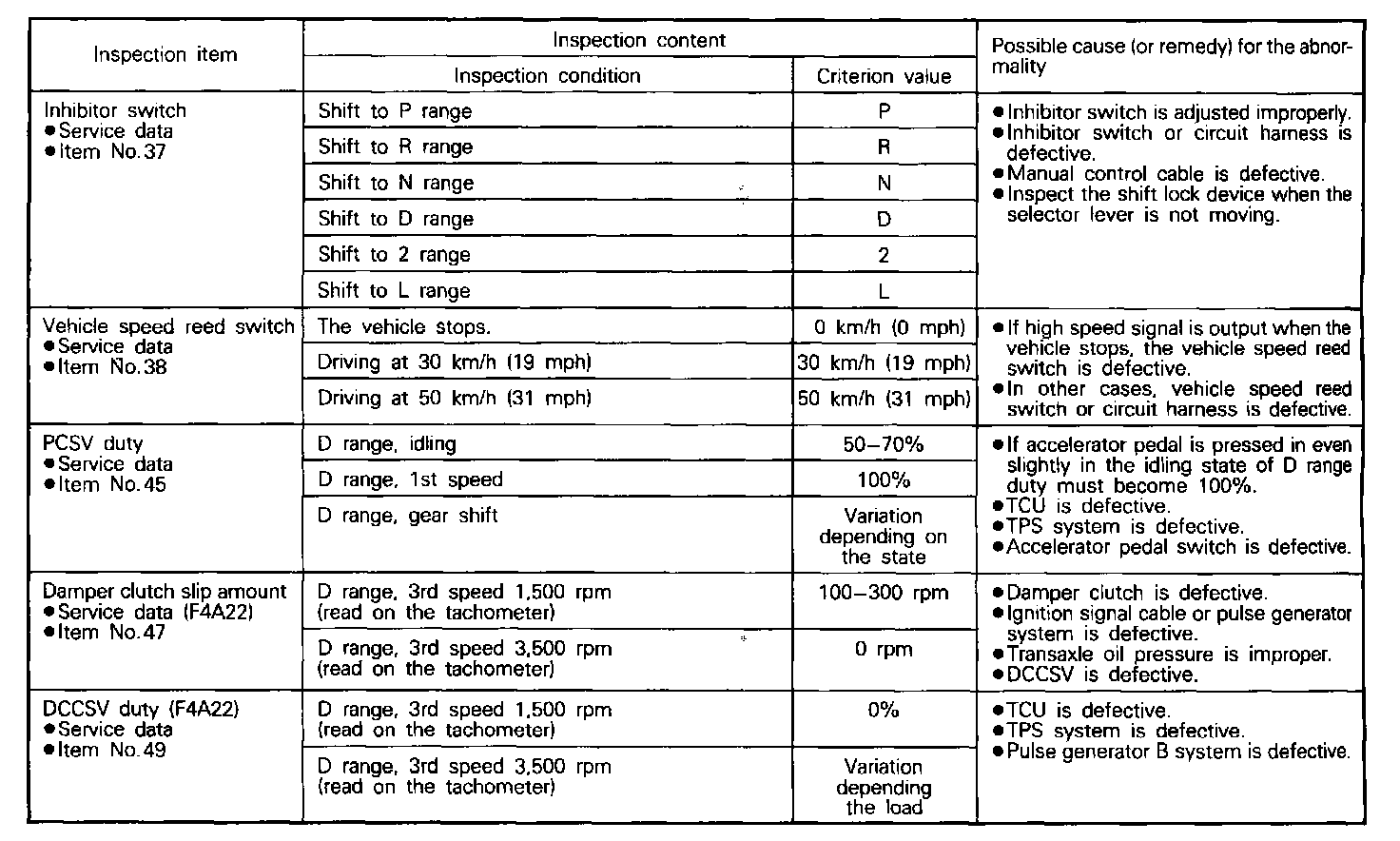

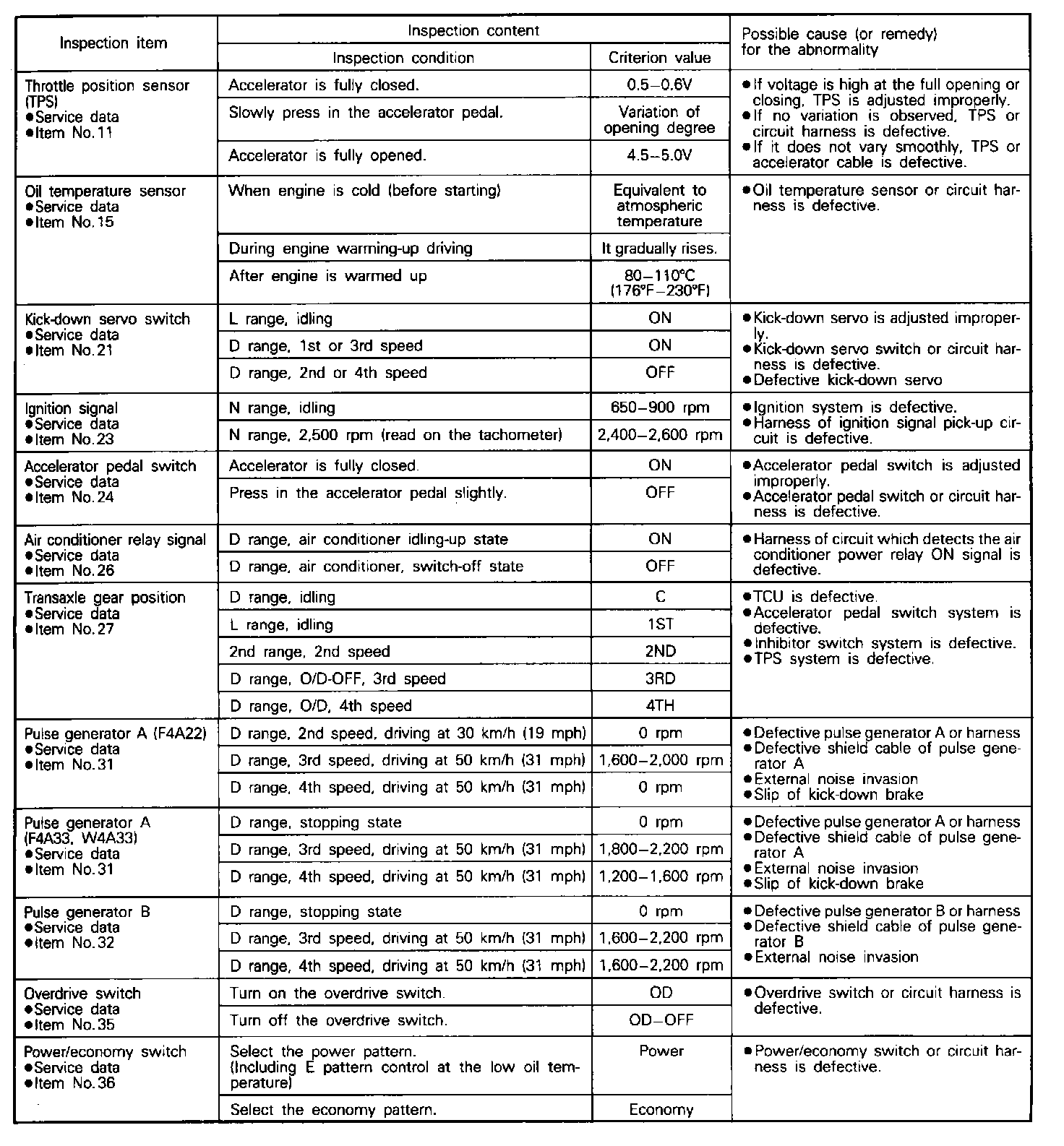

Control system checking chart
