Dr-8A: Testing No. 1 Cylinder TDC Sensor

Fig 1: Driveability Test DR-8A: Circuit Diagram
G91A10702

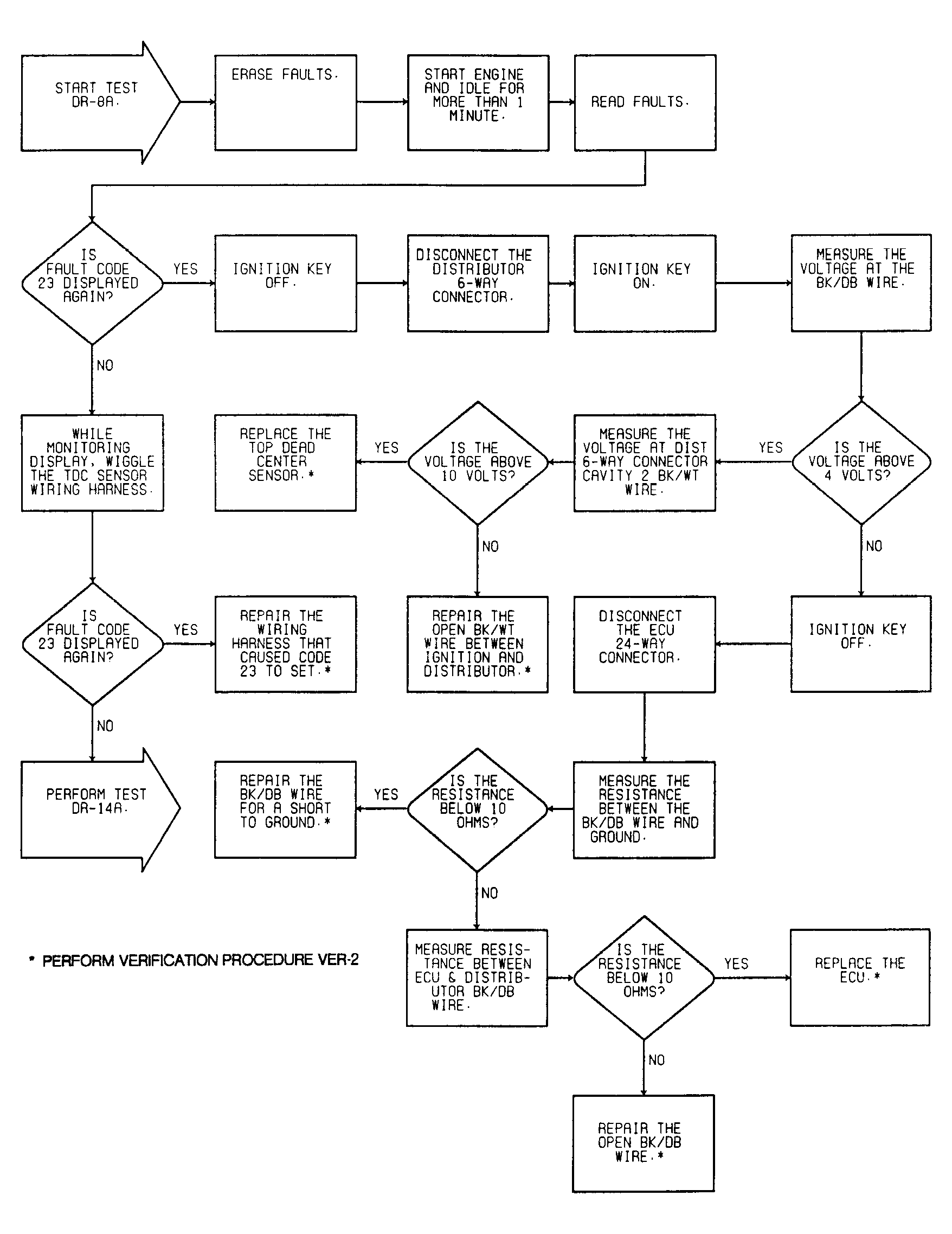

Fig 2: Driveability Test DR-8A: Diagnostic Flow Chart
G91J10735
