Boost Meter - Turbo

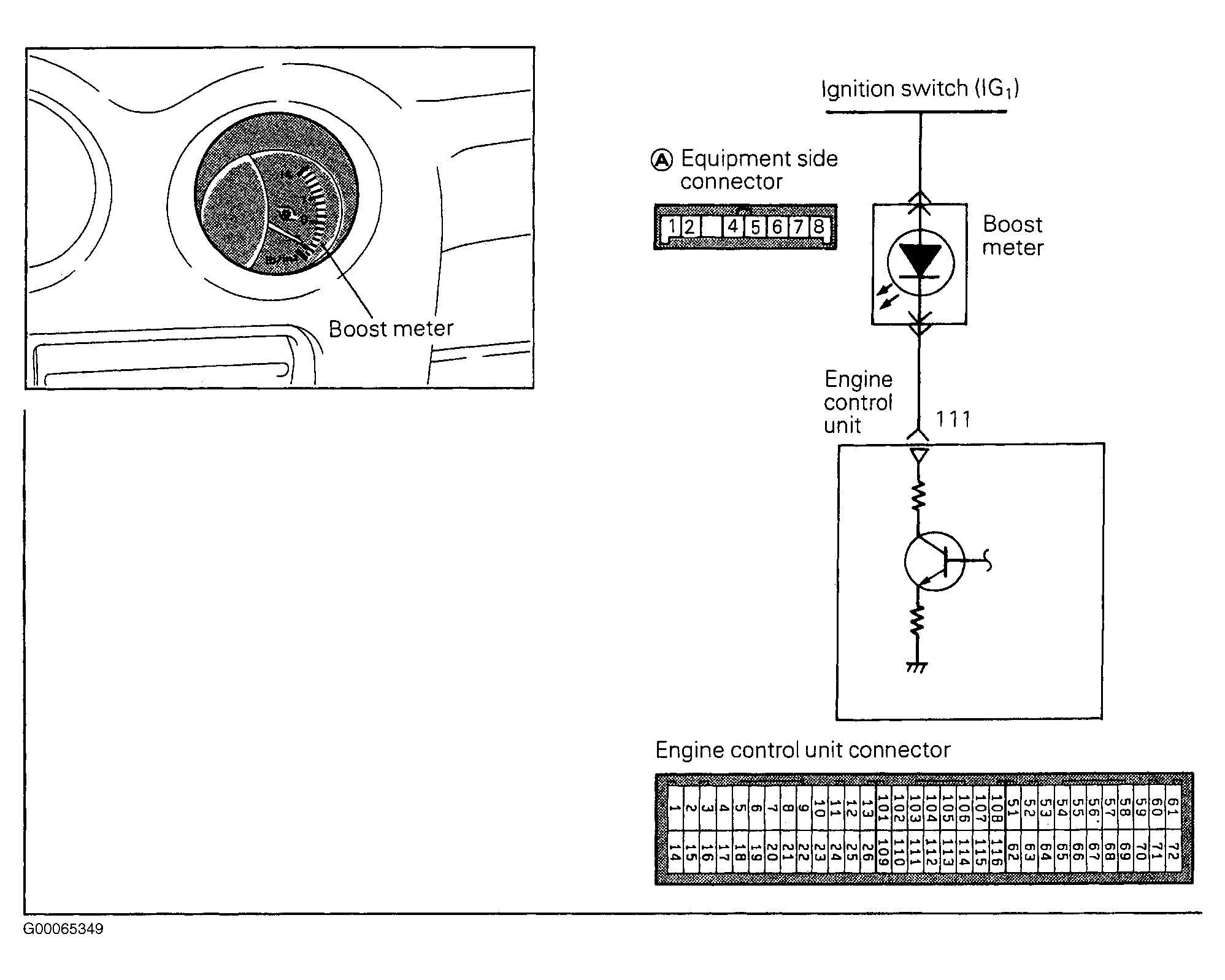

Fig 1: Boost Meter - Turbo (1 Of 2)
G00065349Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

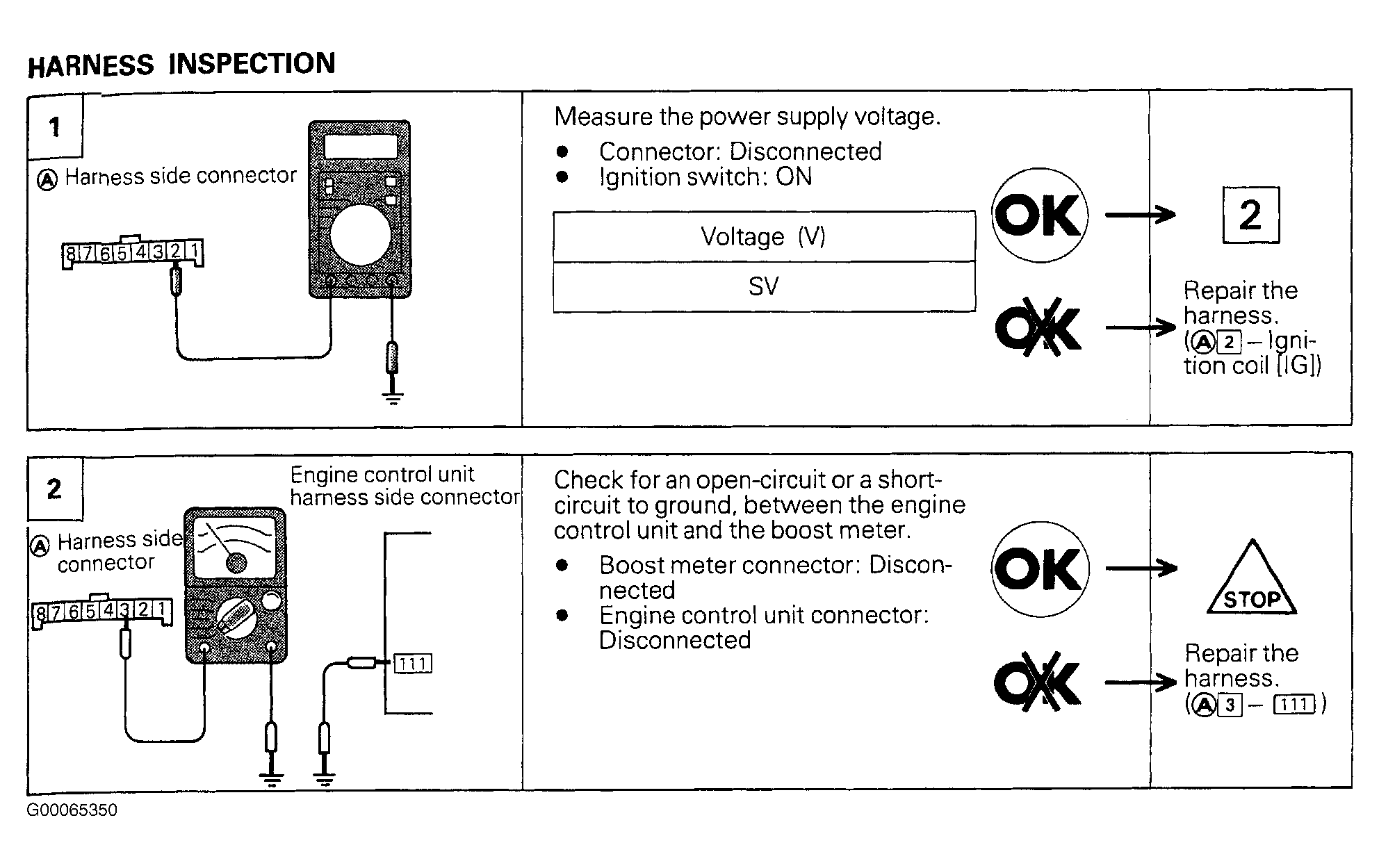

Fig 2: Boost Meter - Turbo - Steps 1 & 2 (2 Of 2)
G00065350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
