Speed Adjustment Screw (SAS) Fixed Position
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Speed Adjustment Screw (SAS) Fixed Position

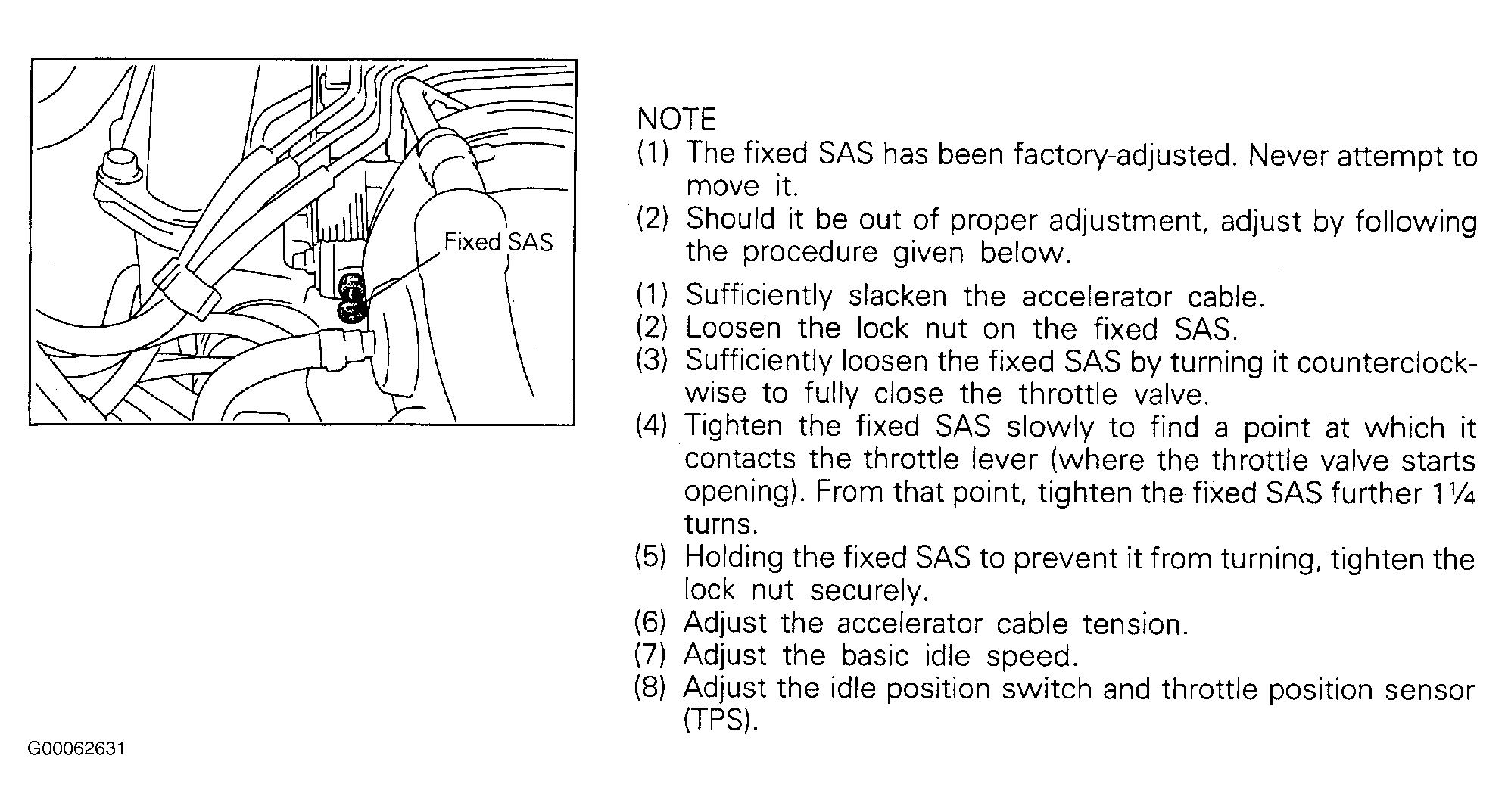

Fig 1: Speed Adjustment Screw (SAS) Fixed Position - Steps 1-8
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
