Active Exhaust Control Unit - Turbo

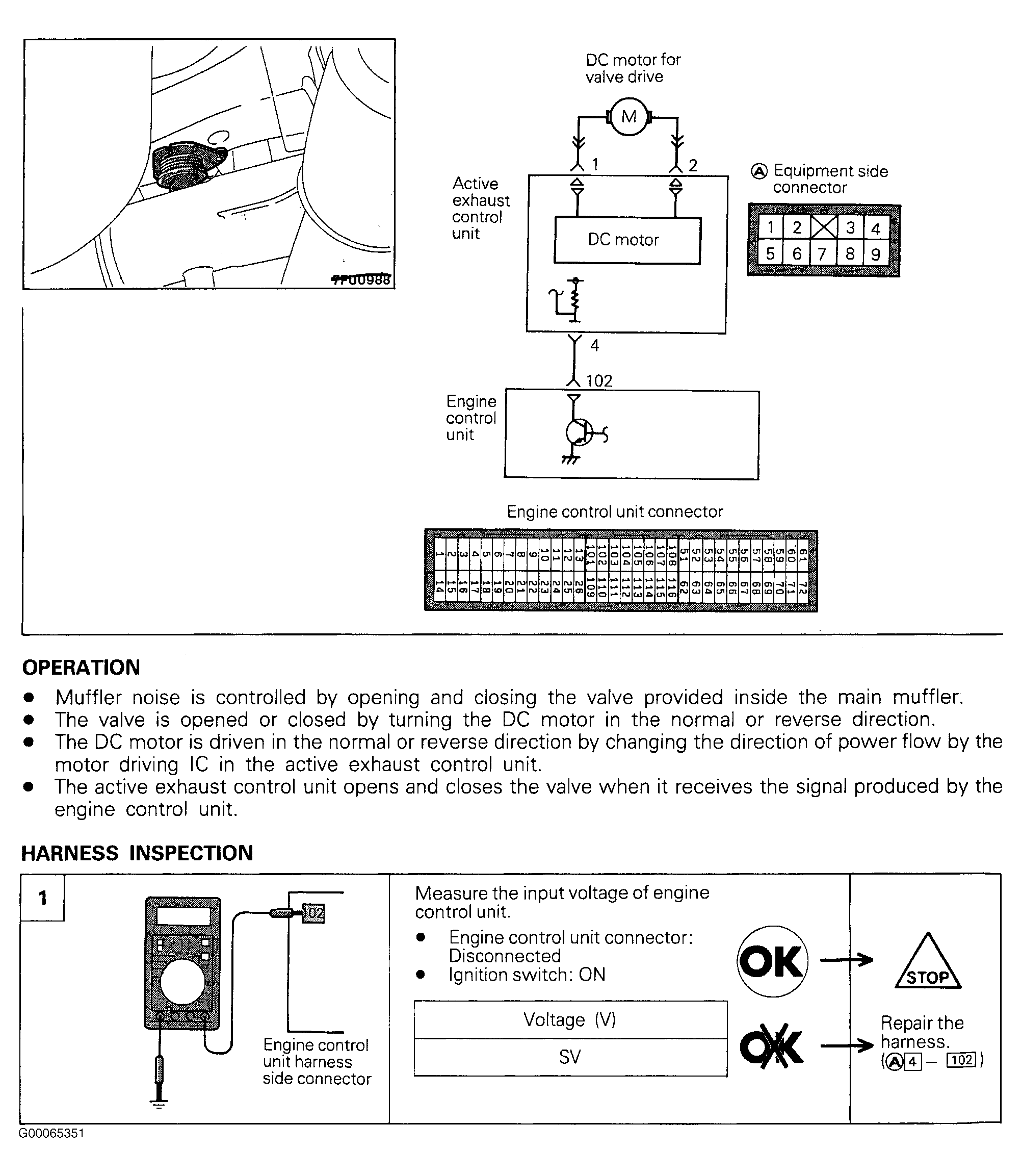

Fig 1: Active Exhaust Control Unit - Turbo
G00065351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
