Neutral Safety Switch Adjustment: Montero

  1. Neutral safety switch is located under shift lever console. Set shift lever so pin at end of rod is positioned correctly. See Fig 1.

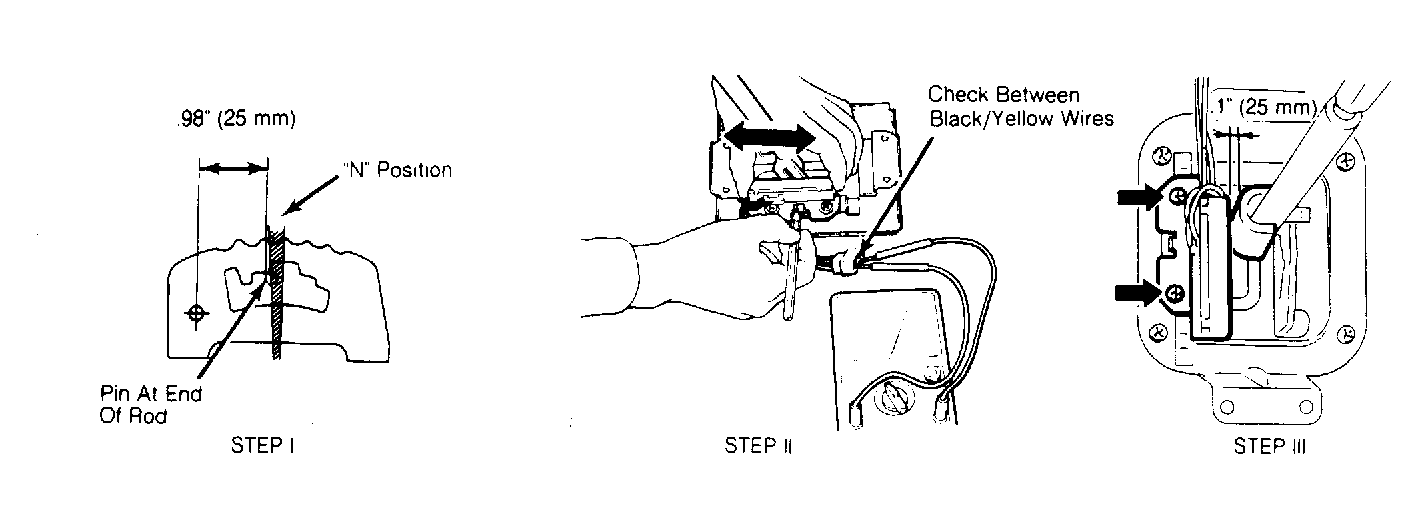

    Fig 1: Adjusting Neutral Safety Switch (Montero)
    G82791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Using an ohmmeter, check continuity between Black/Yellow wires when neutral safety switch is moved back and forth. Mark bracket.
  3. Tighten neutral safety switch mounting screws so clearance between switch and selector lever is .1" (2.5 mm).
