NS-5: Testing Self-Diagnostic Connector
Fig 1: Circuit Diagram NS-5 (2.4L)

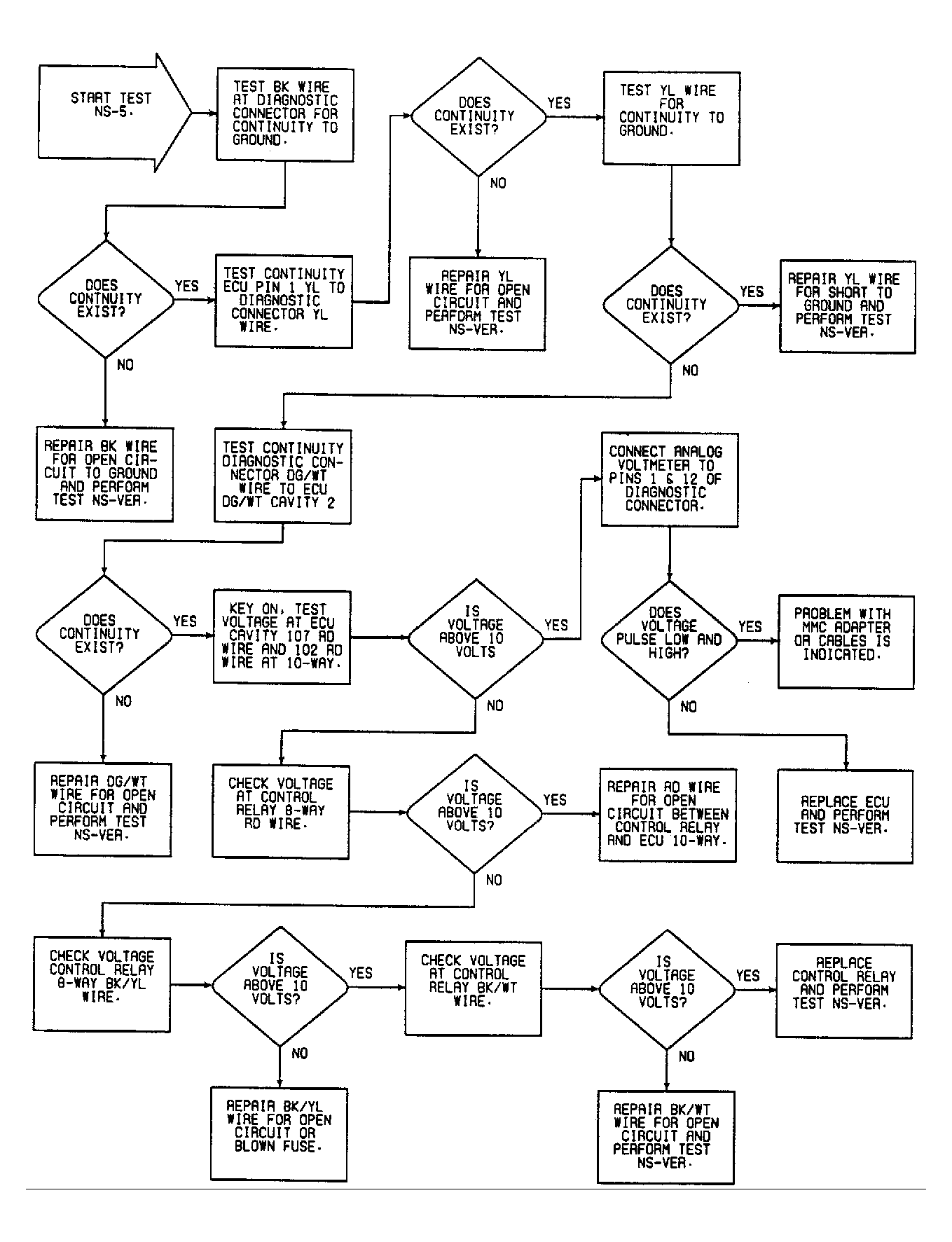

Fig 2: Flow Chart NS-5 (2.4L)
