Stop Light/Brake Switch

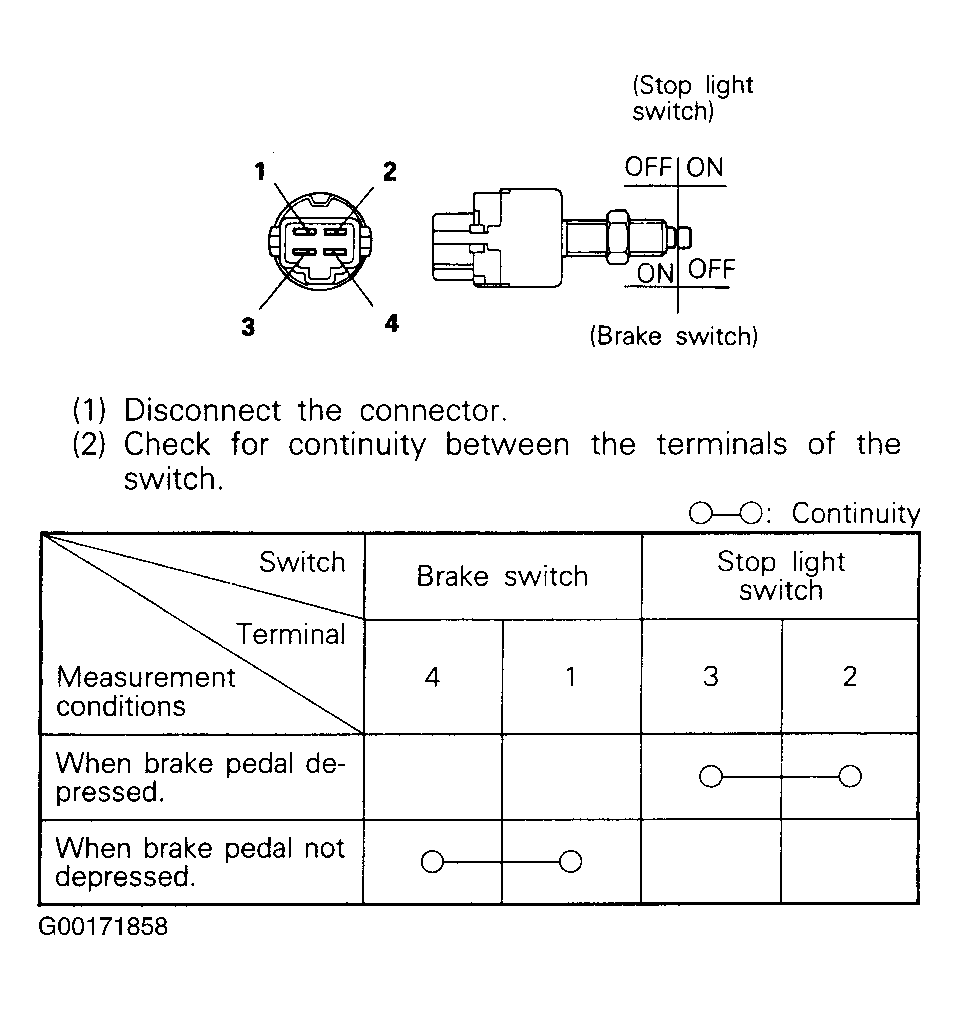

Fig 1: Testing Stop Light/Brake Switch

G00171858

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
