Firing Order (Galant 2.0L SOHC)

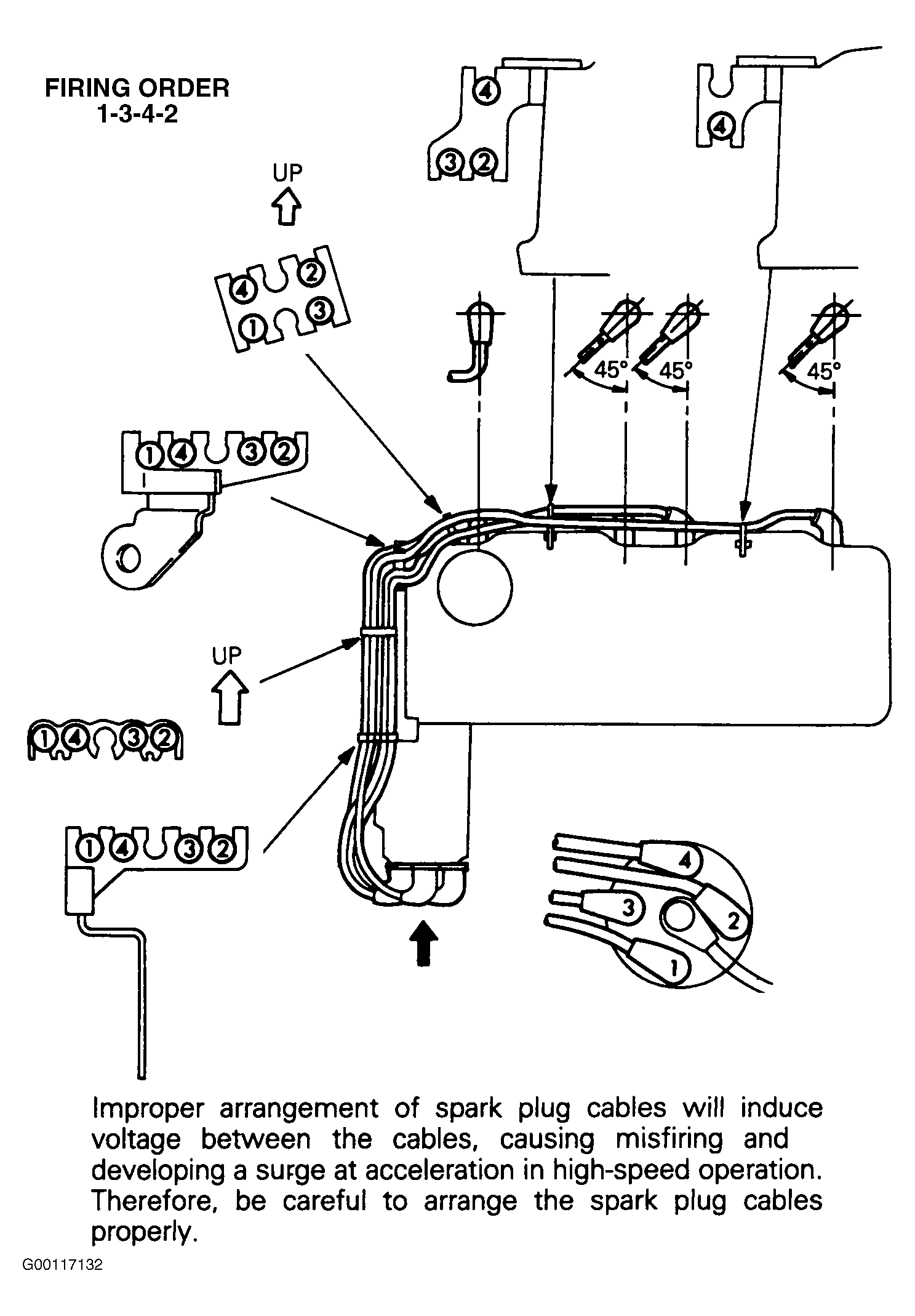

Fig 1: Firing Order & Plug Wire Routing (Galant 2.0L SOHC)
G00117132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
