Injector Inspection

For injector inspection, see Fig 1 .

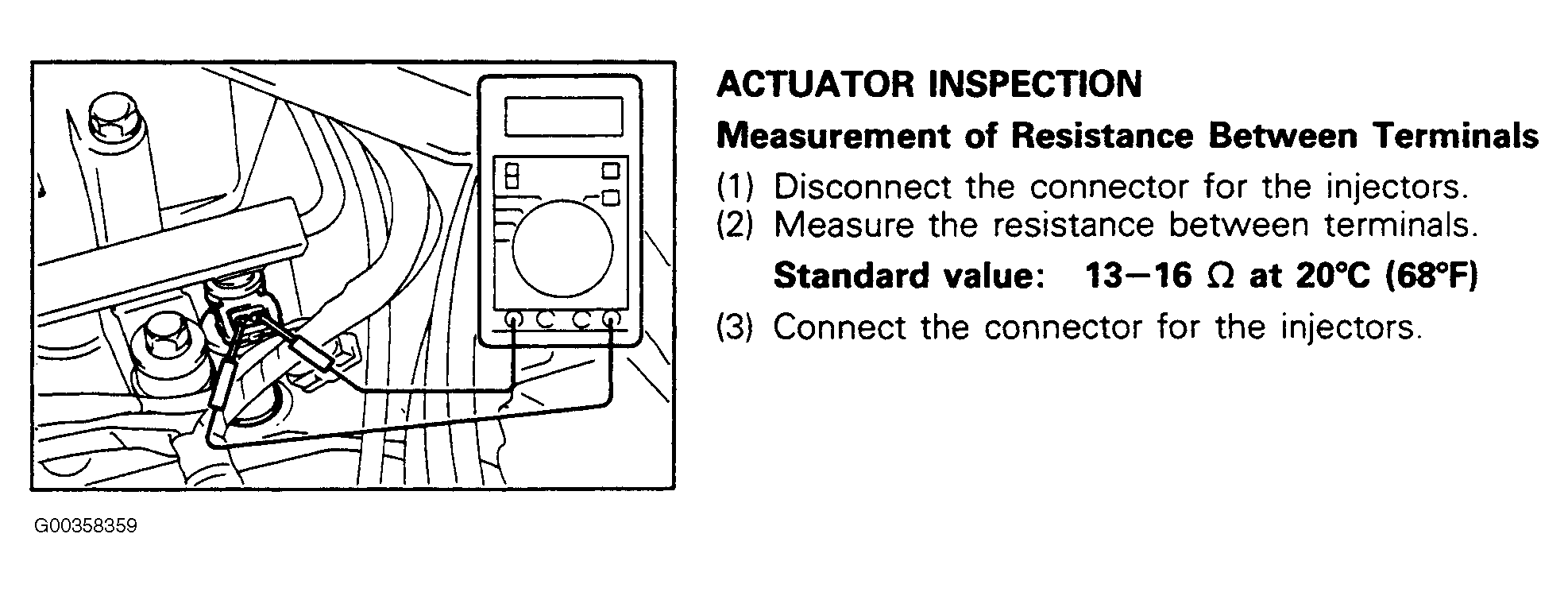

Fig 1: Injector Inspection
G00358359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
