A/T Technical Data

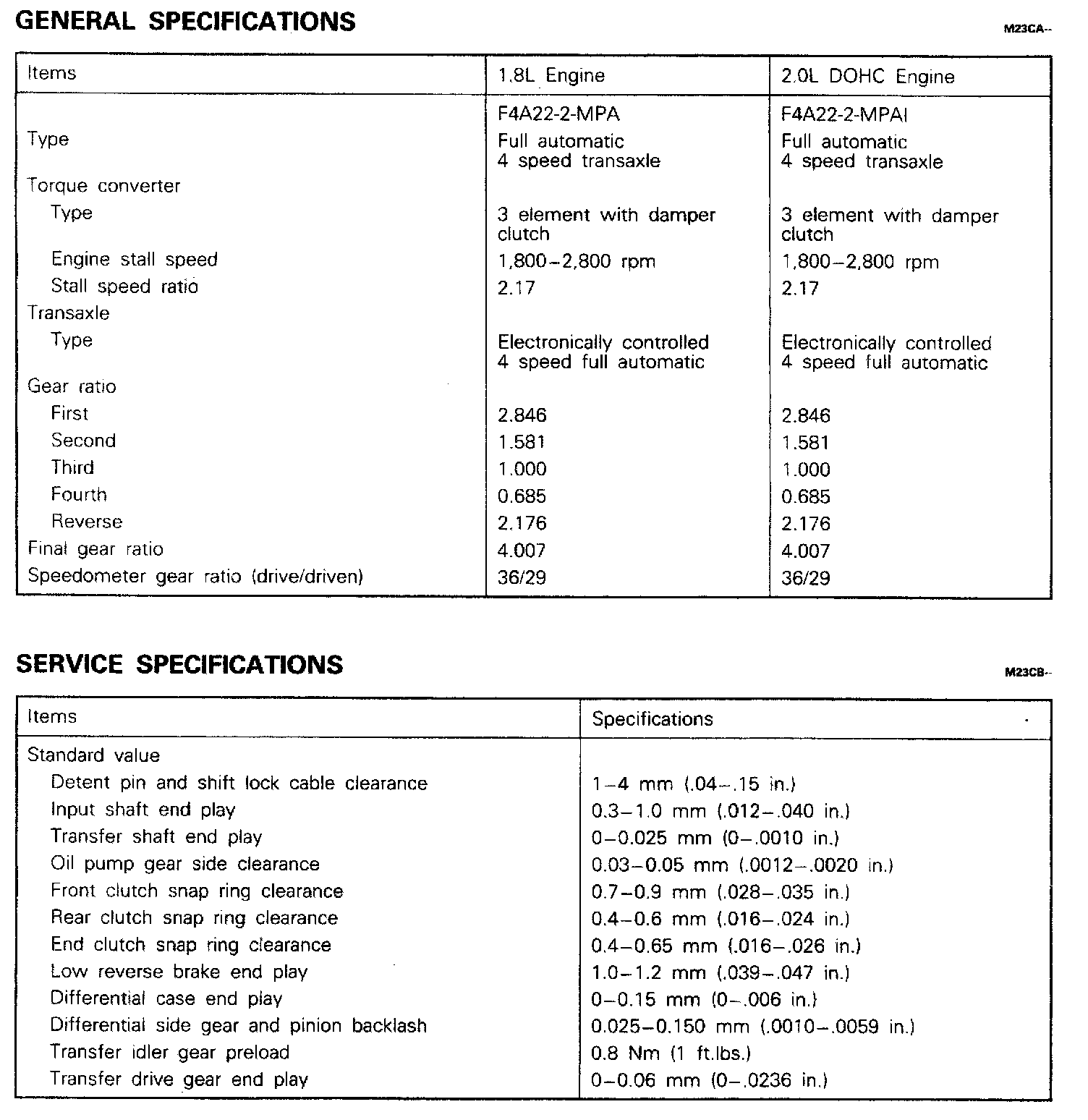

F4A22 4-spd A/T, Gear Ratios & Standard Values:

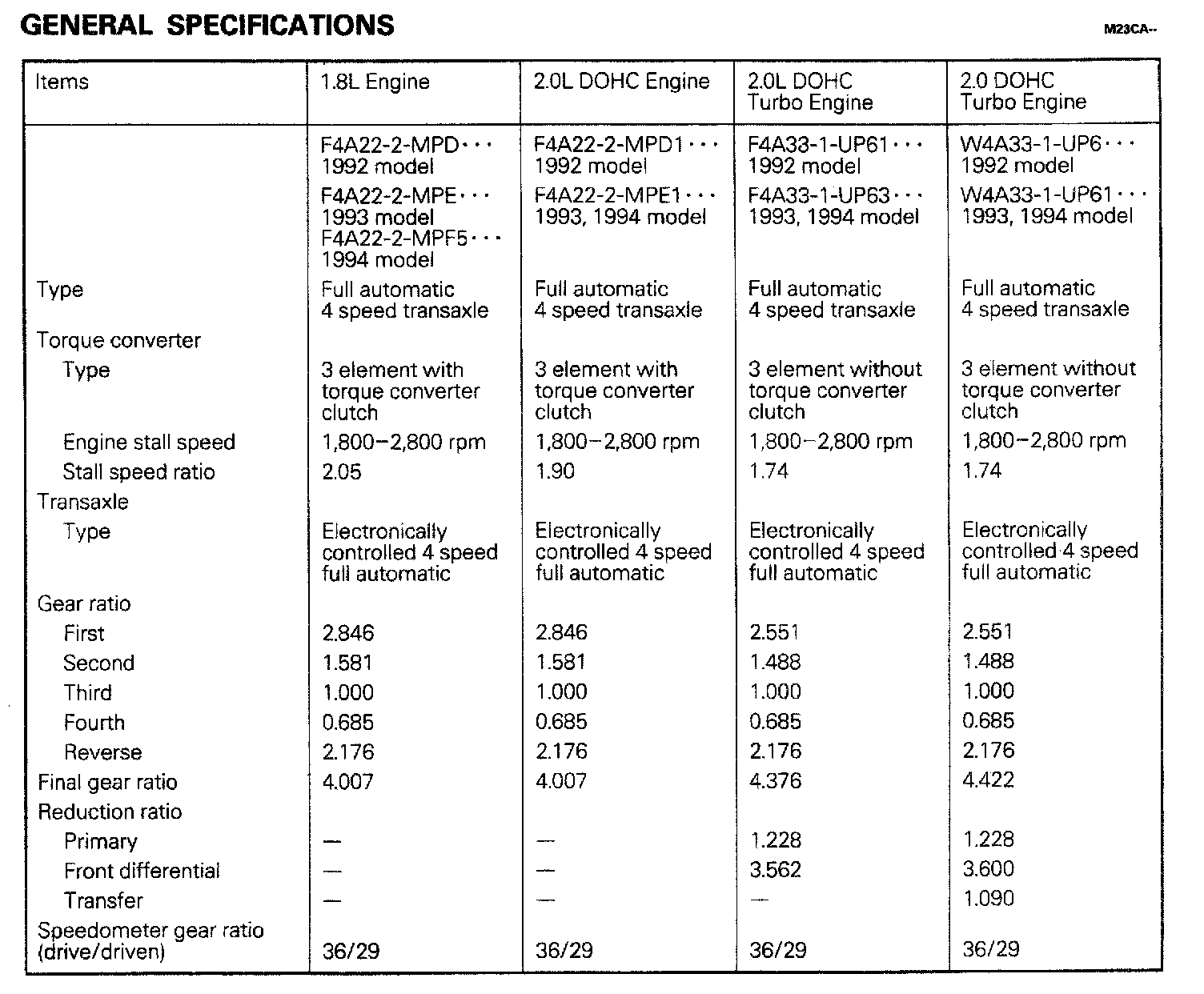

F4A22/F4A33 4-spd A/T, Gear Ratios:

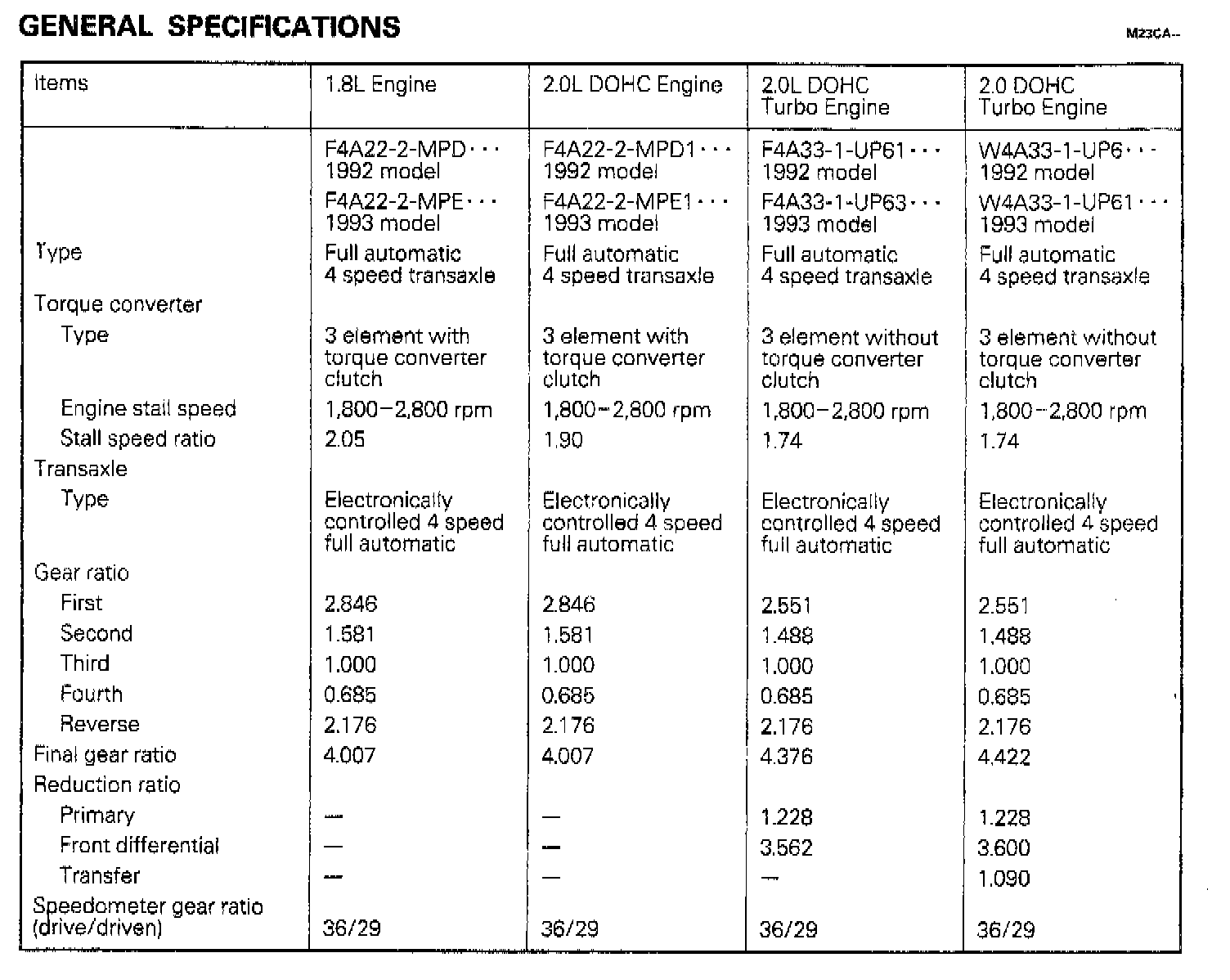

F4A22/F4A33/W4A33 4-spd A/T, Gear Ratios Cont. ('94):

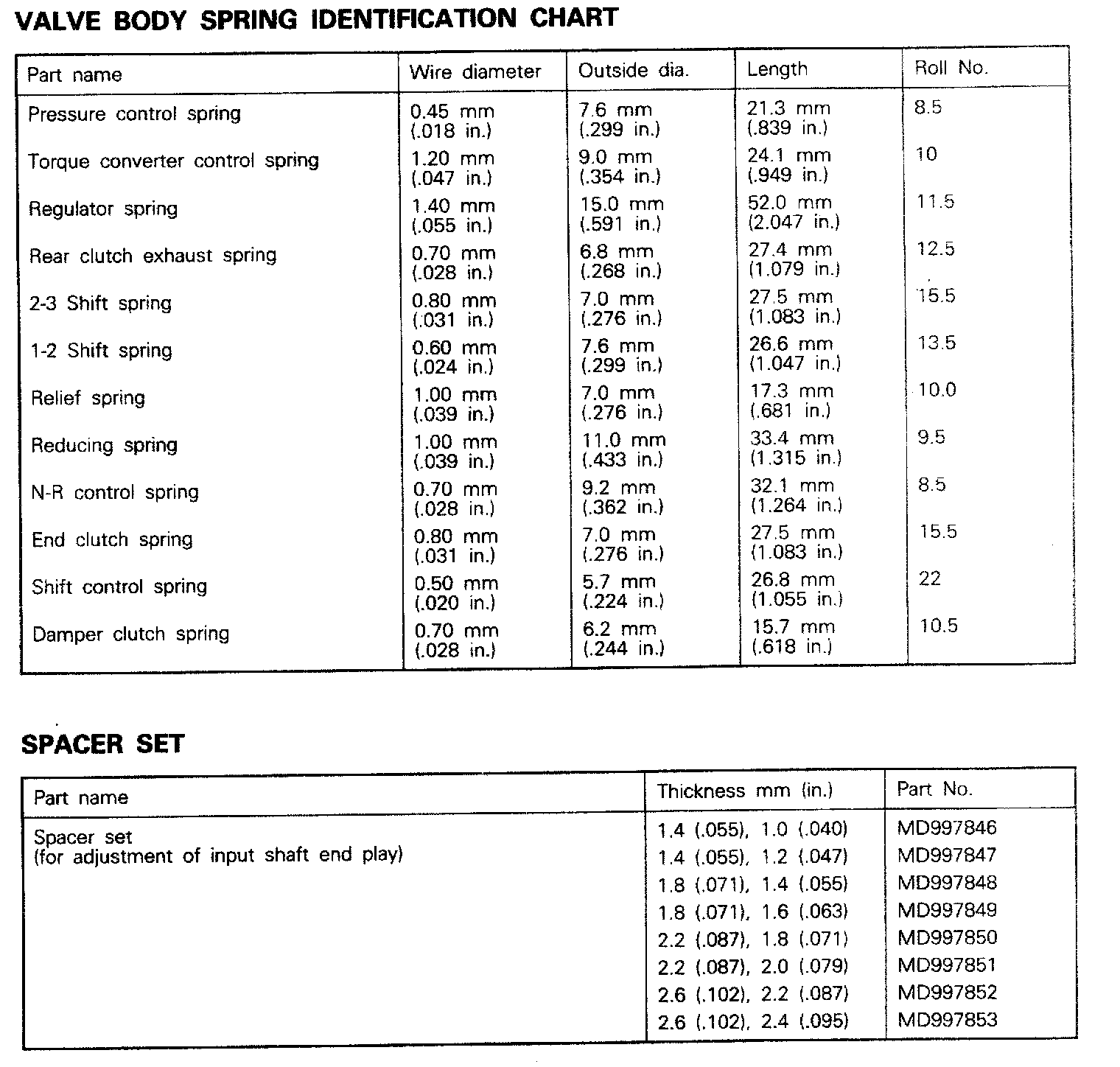

F4A22 4-spd A/T, Spring Chart & Spacer Set:

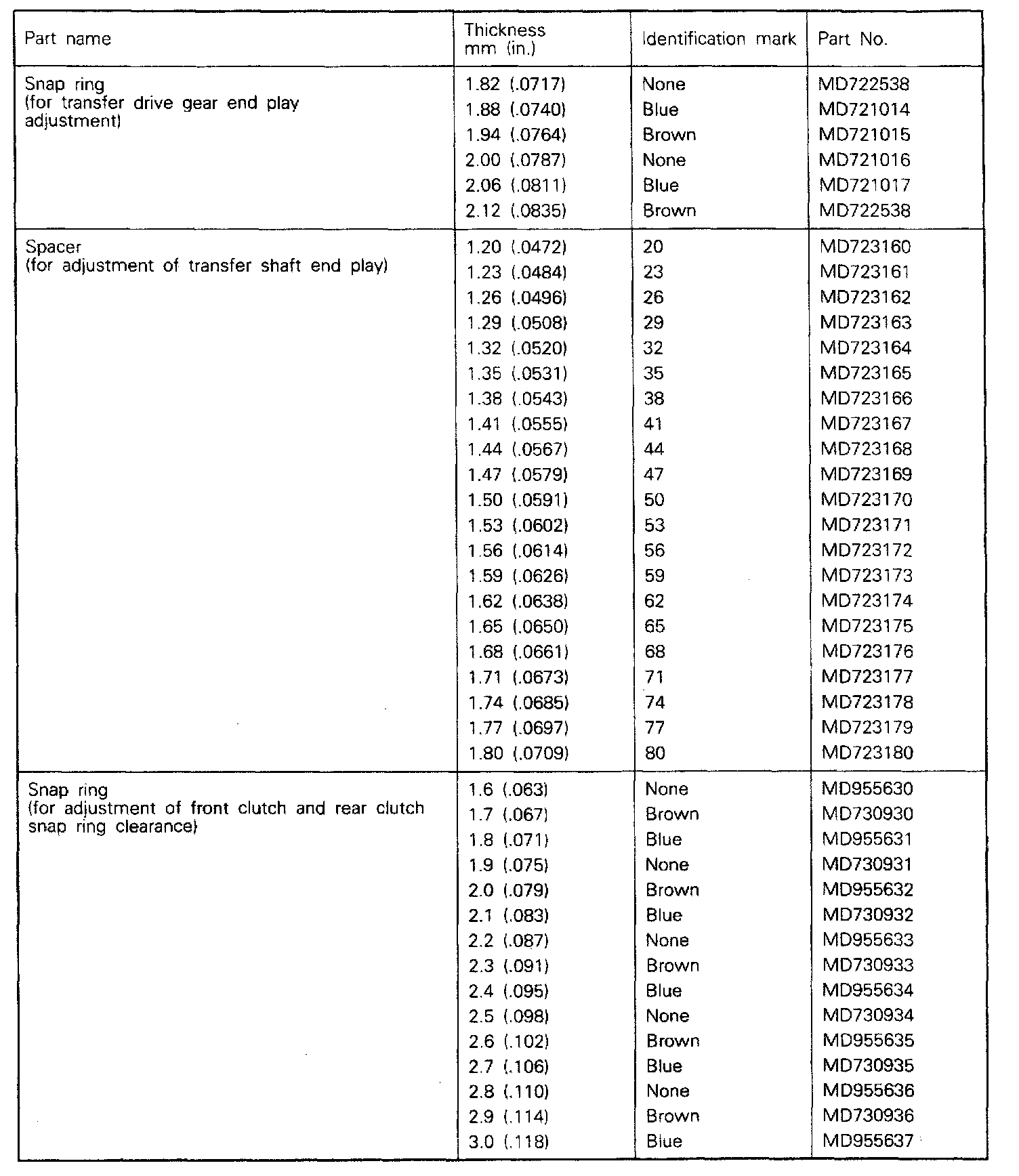

F4A22 4-spd A/T, Drive Gear, Transfer Shaft, Frt & Rear Clutch:

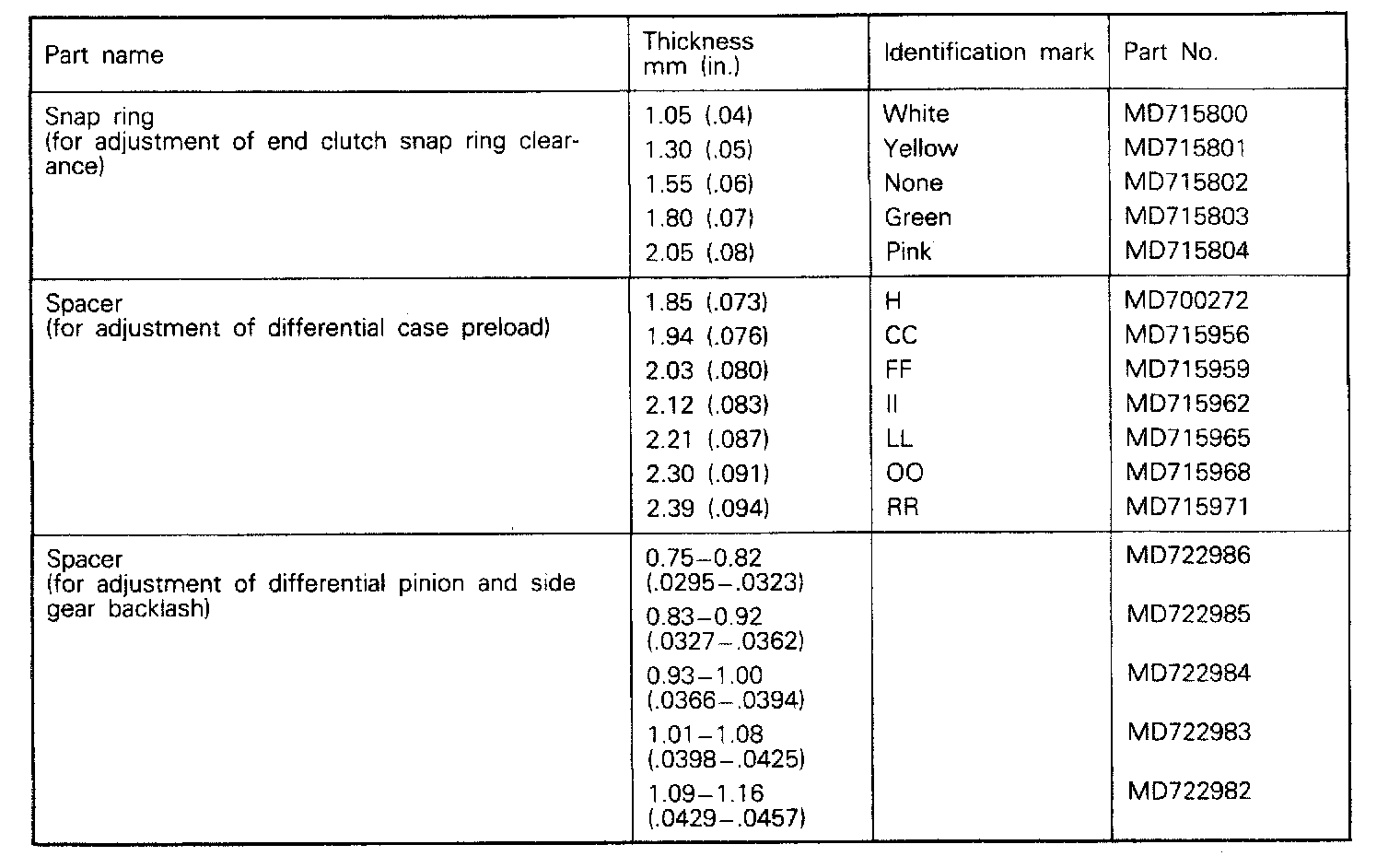

F4A22 4-spd A/T, End Clutch / Differential Pinion & Side Gear.:
