Wiring Diagrams

Fig 1: Wiring Diagram (Mirage)
G94420

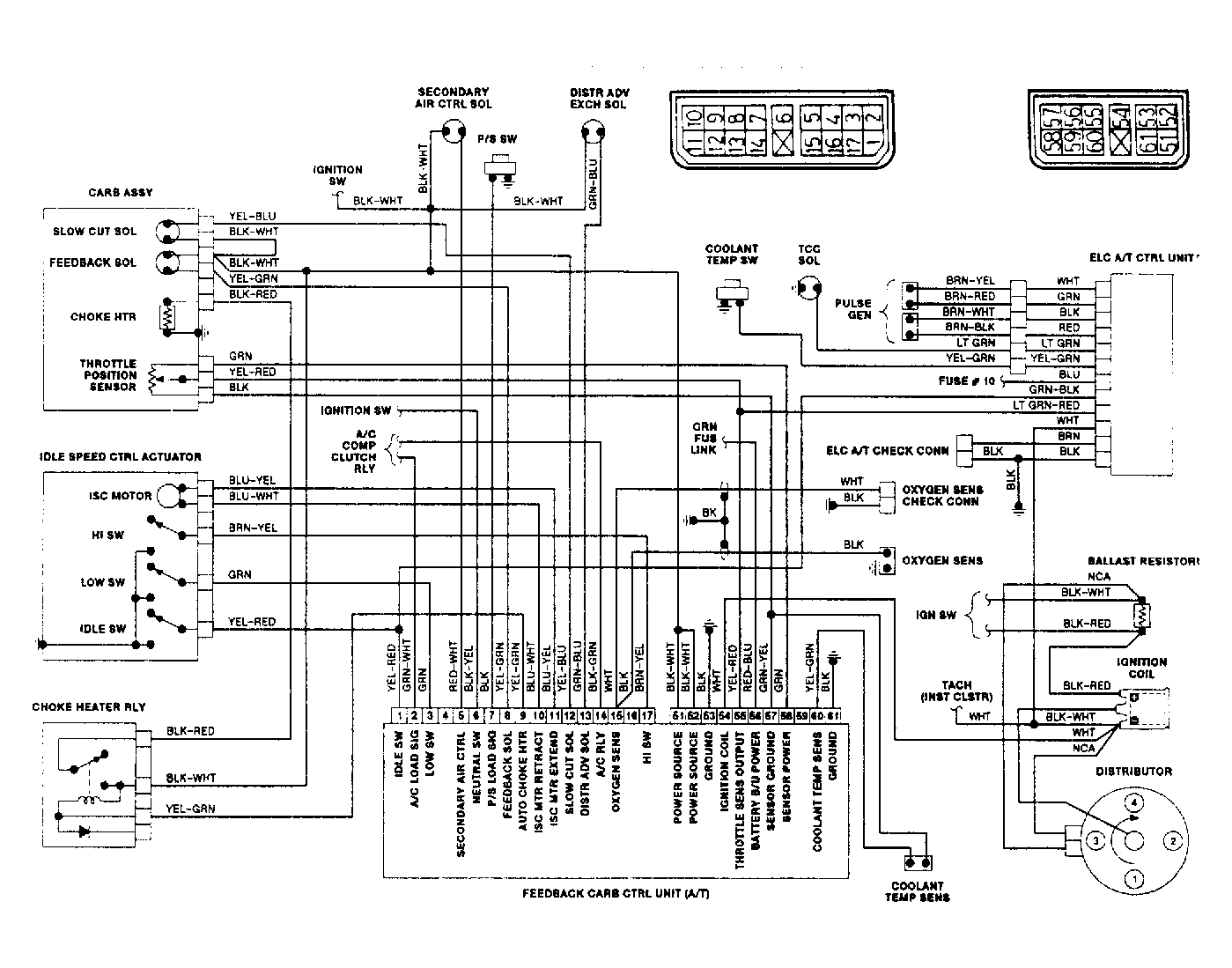

Fig 2: Wiring Diagram (Cordia/Tredia Auto. Trans.)
G94421

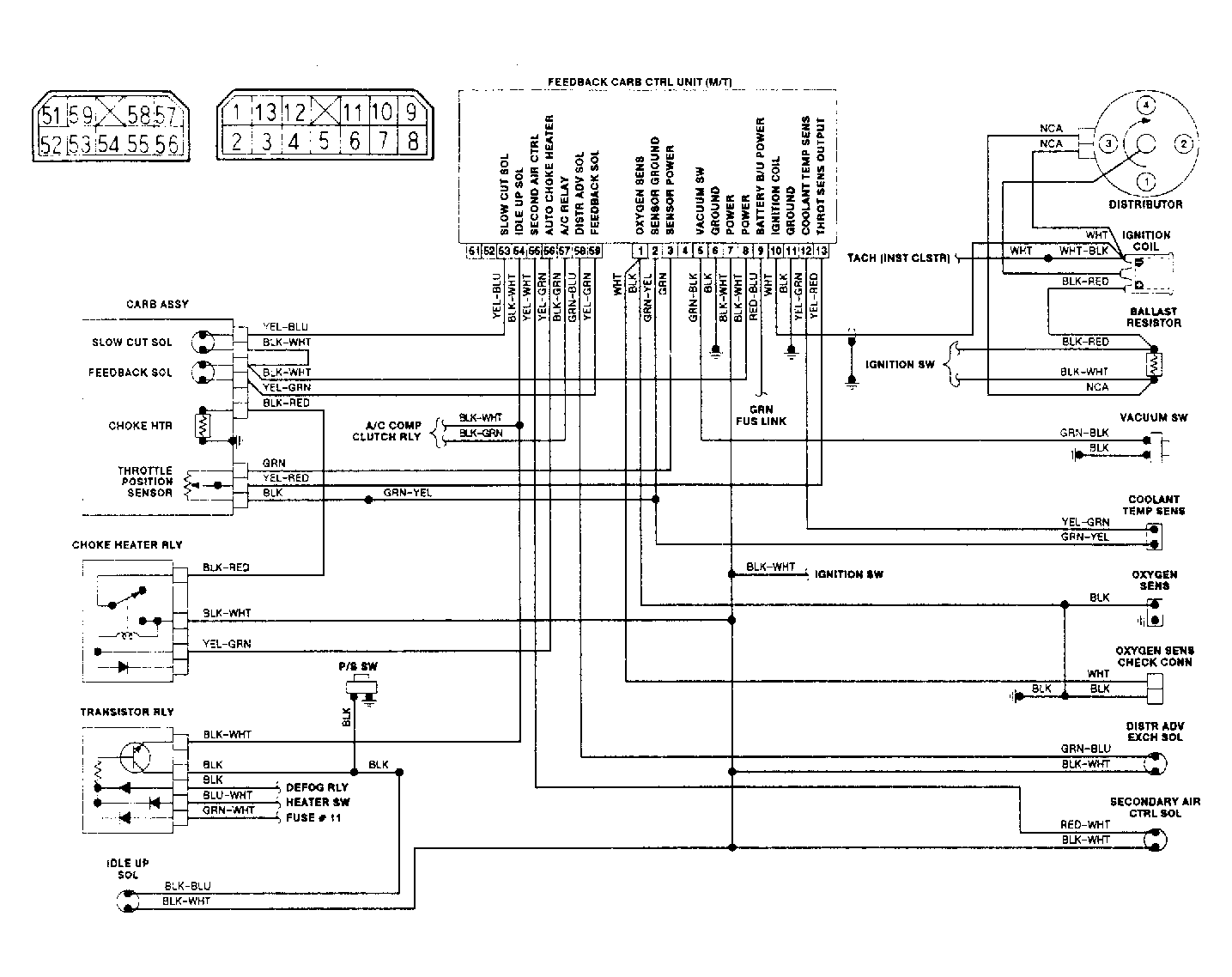

Fig 3: Wiring Diagram (Cordia/Tredia Man. Trans)
G94422
Fig 4: Wiring Diagram (Montero/Pickup)
G94423
