Wiring Diagrams

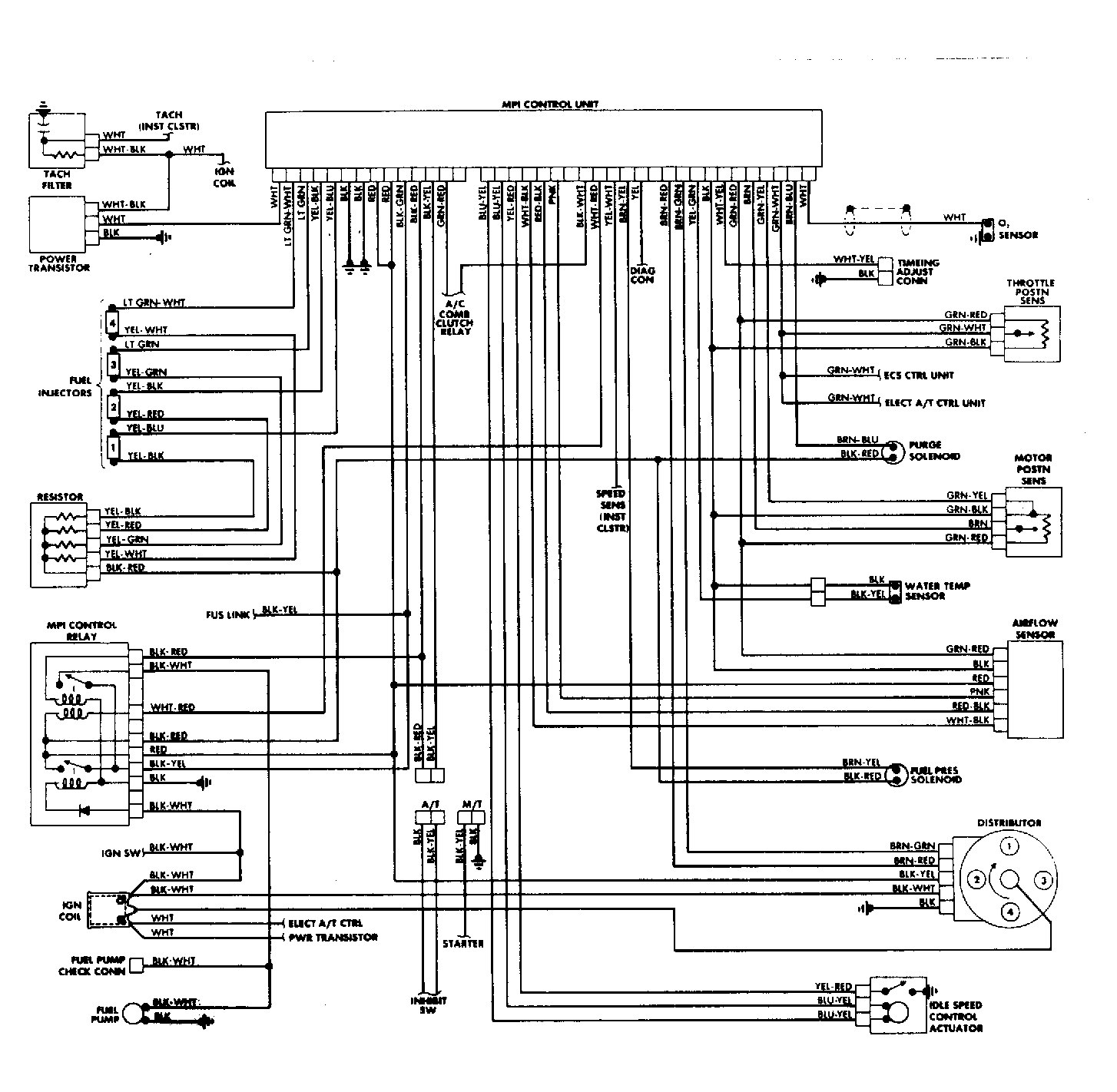

Fig 1: Wiring Diagram for Galant

G61436

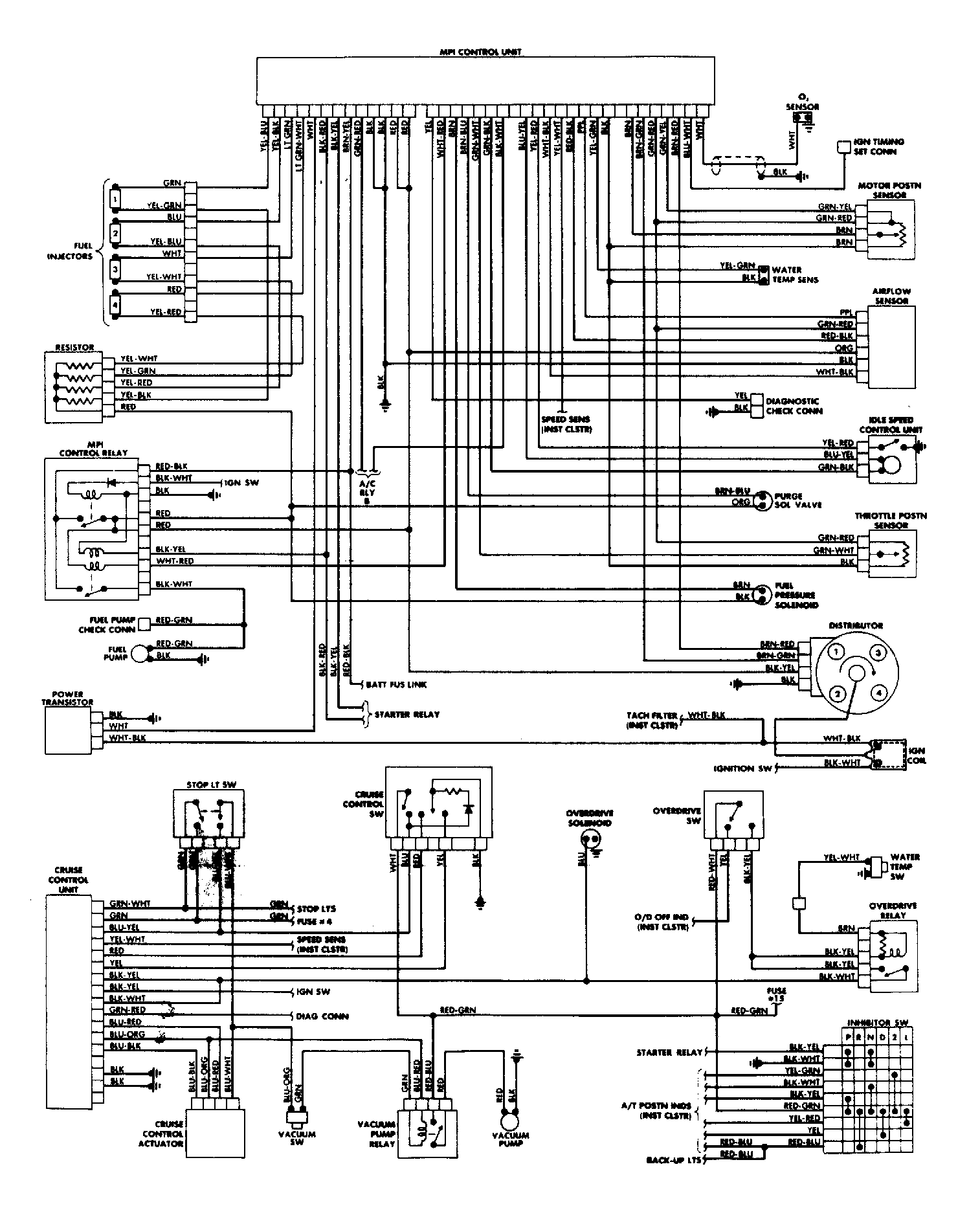

Fig 2: Wiring Diagram for Van/Wagon

G61437
