Trouble Shooting
NOTE:

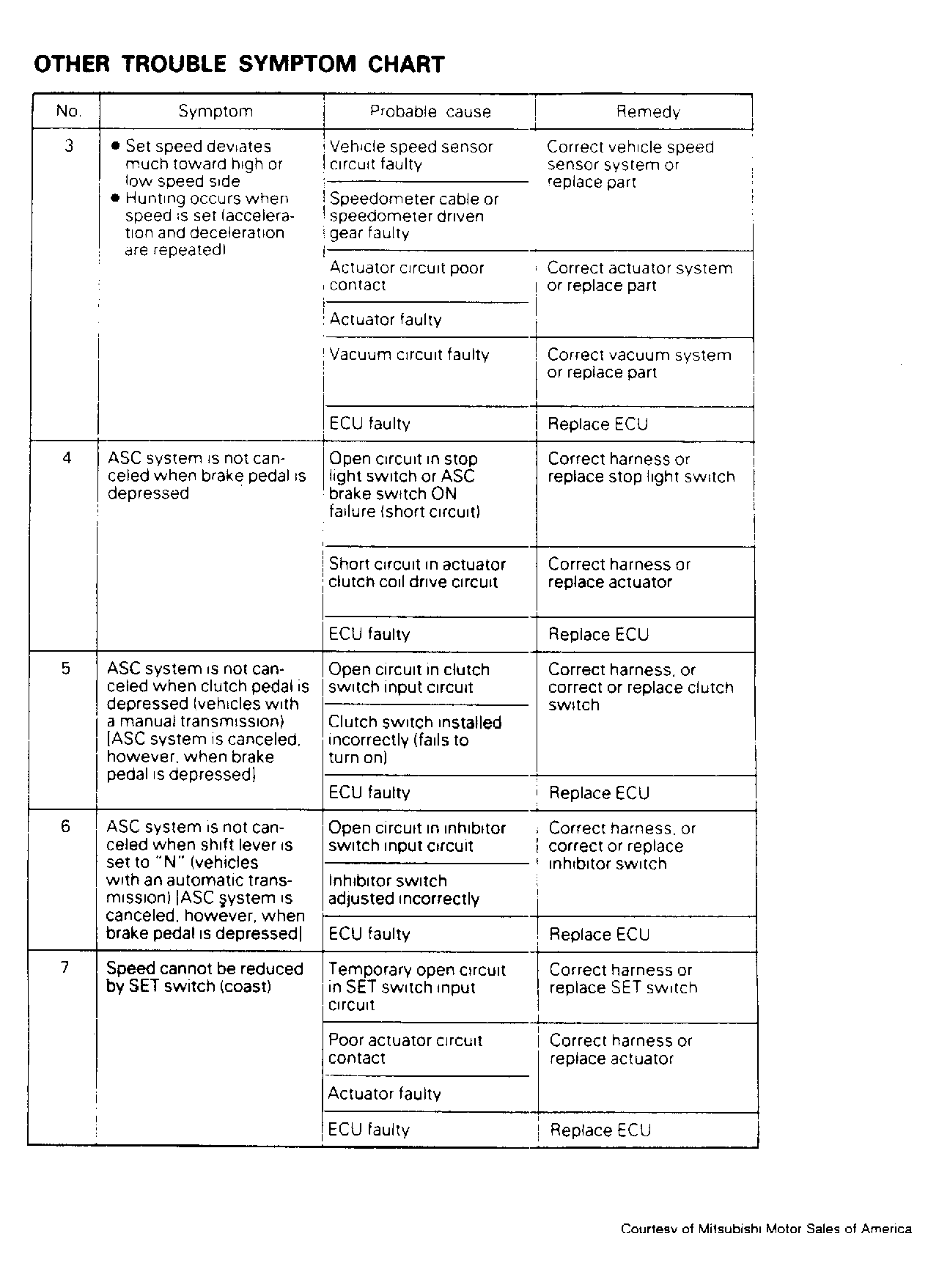

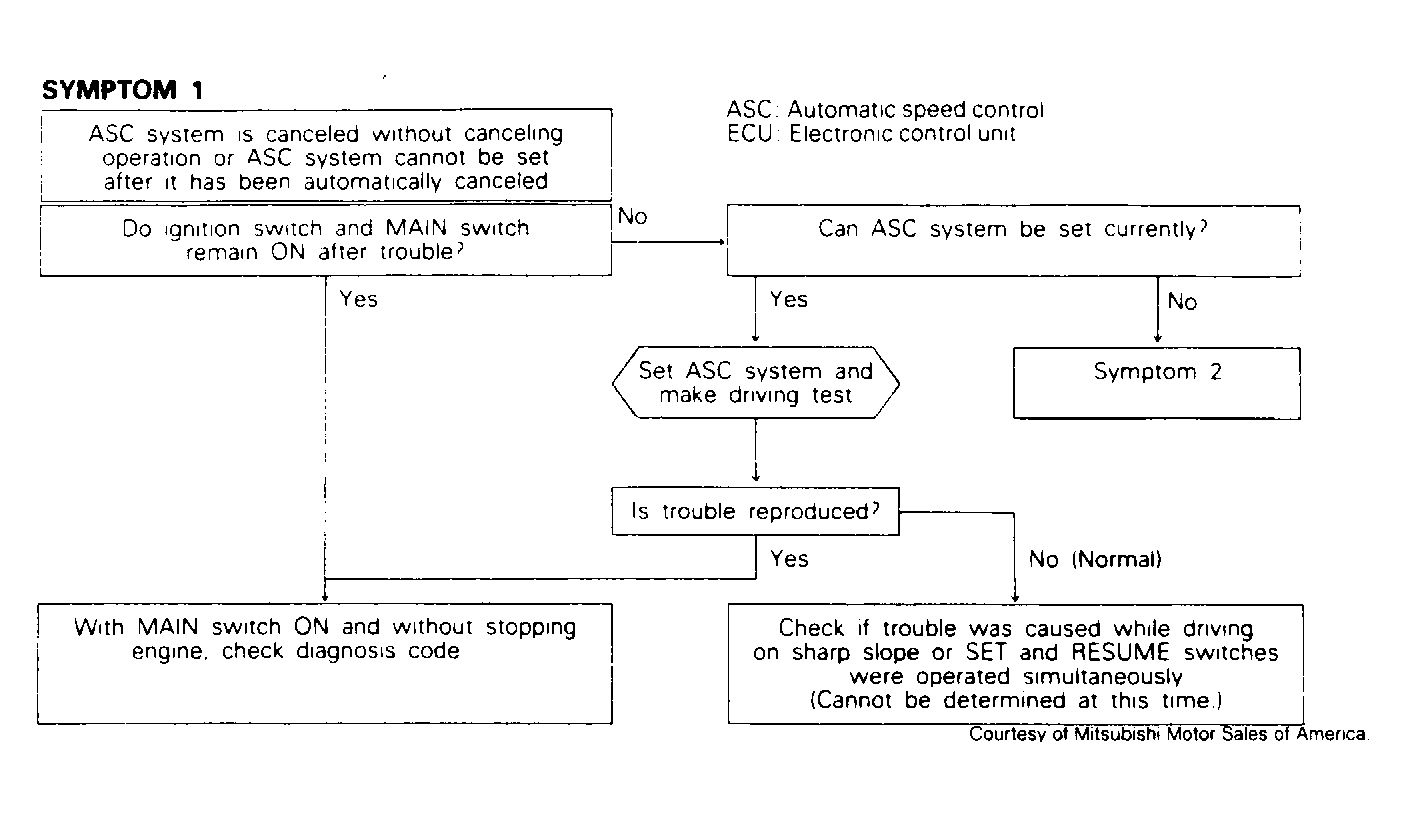

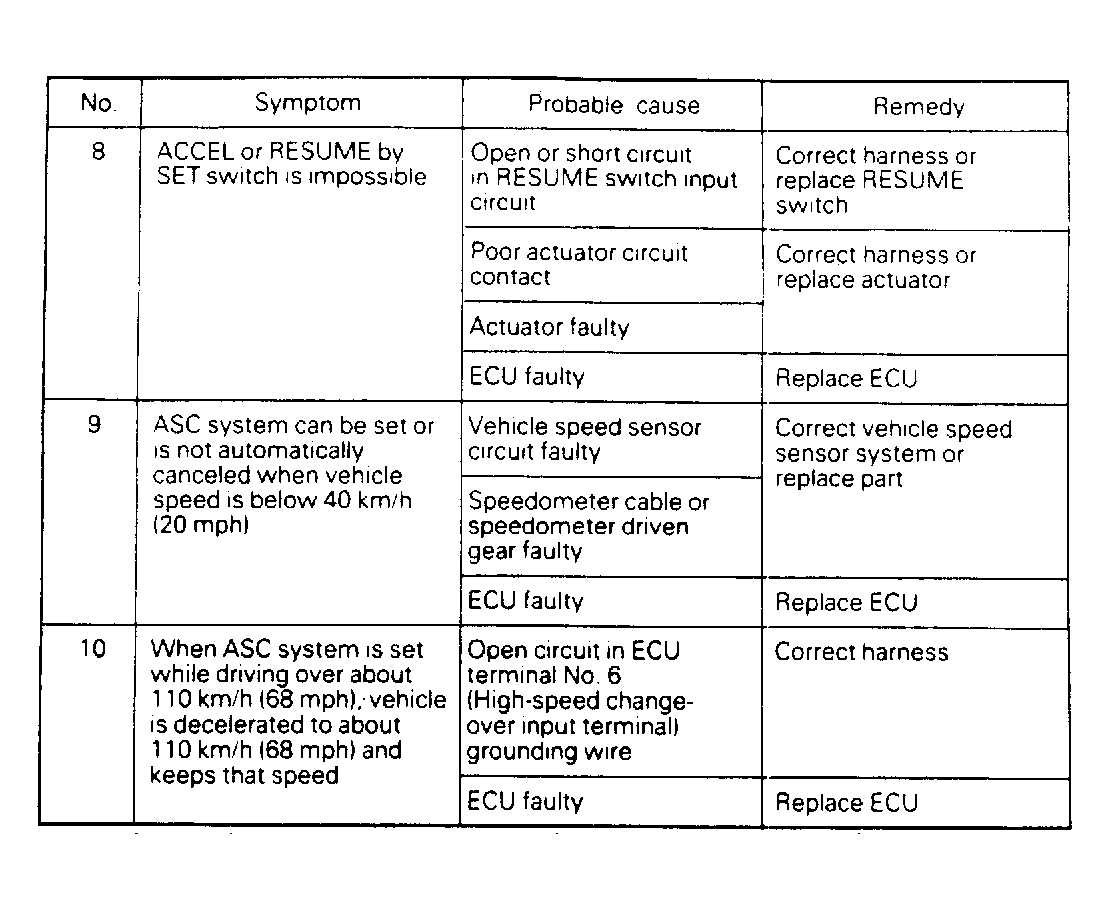

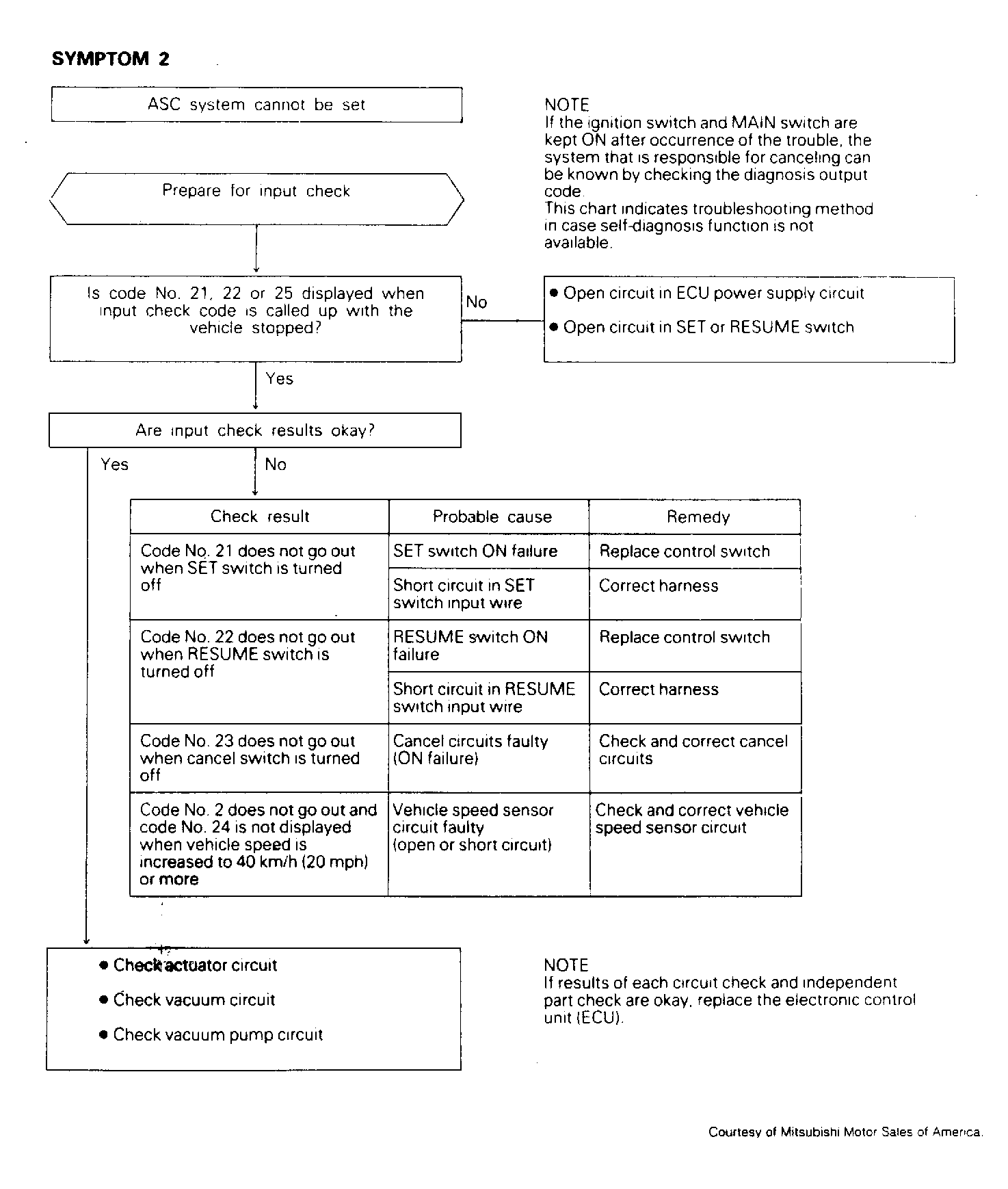

Refer to trouble shooting flow charts for trouble shooting diagnosis. See Fig 1
through Fig 4
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of CHRYSLER MOTORS.
