M/T Technical Data

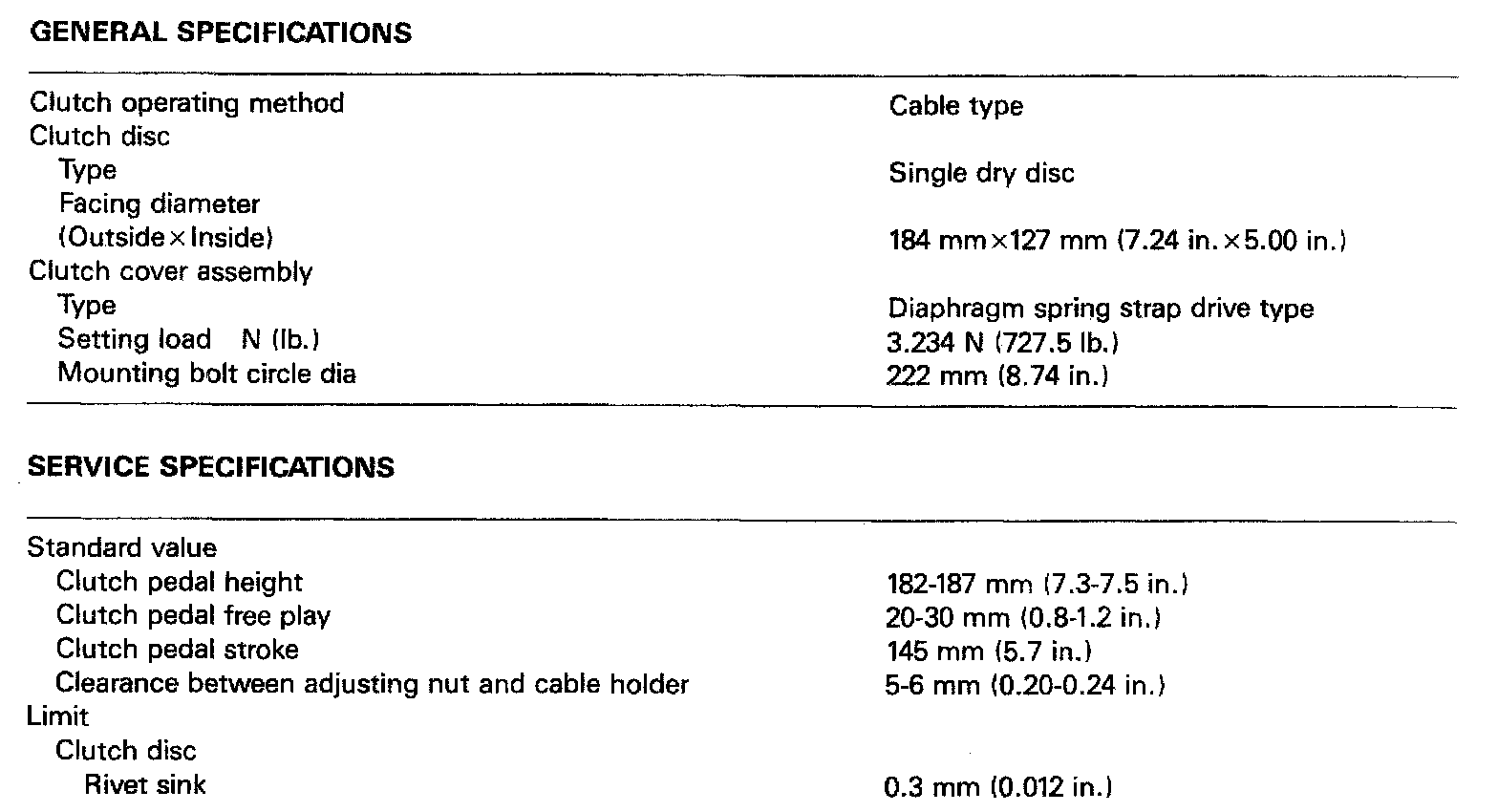

4-spd M/T / 5-spd M/T, Clutch Dimensions:

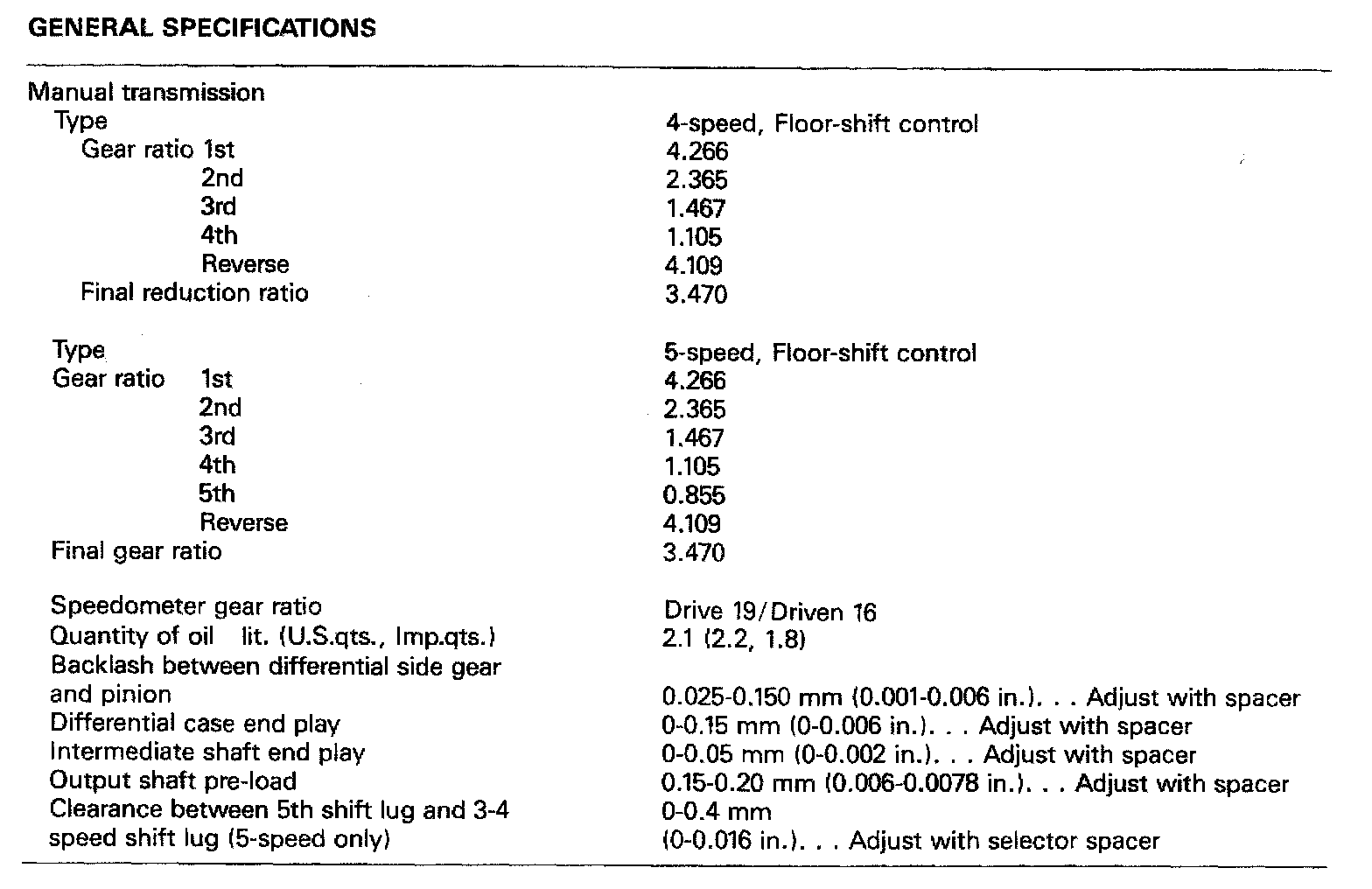

4/5 Spd M/T, Gear Ratio:

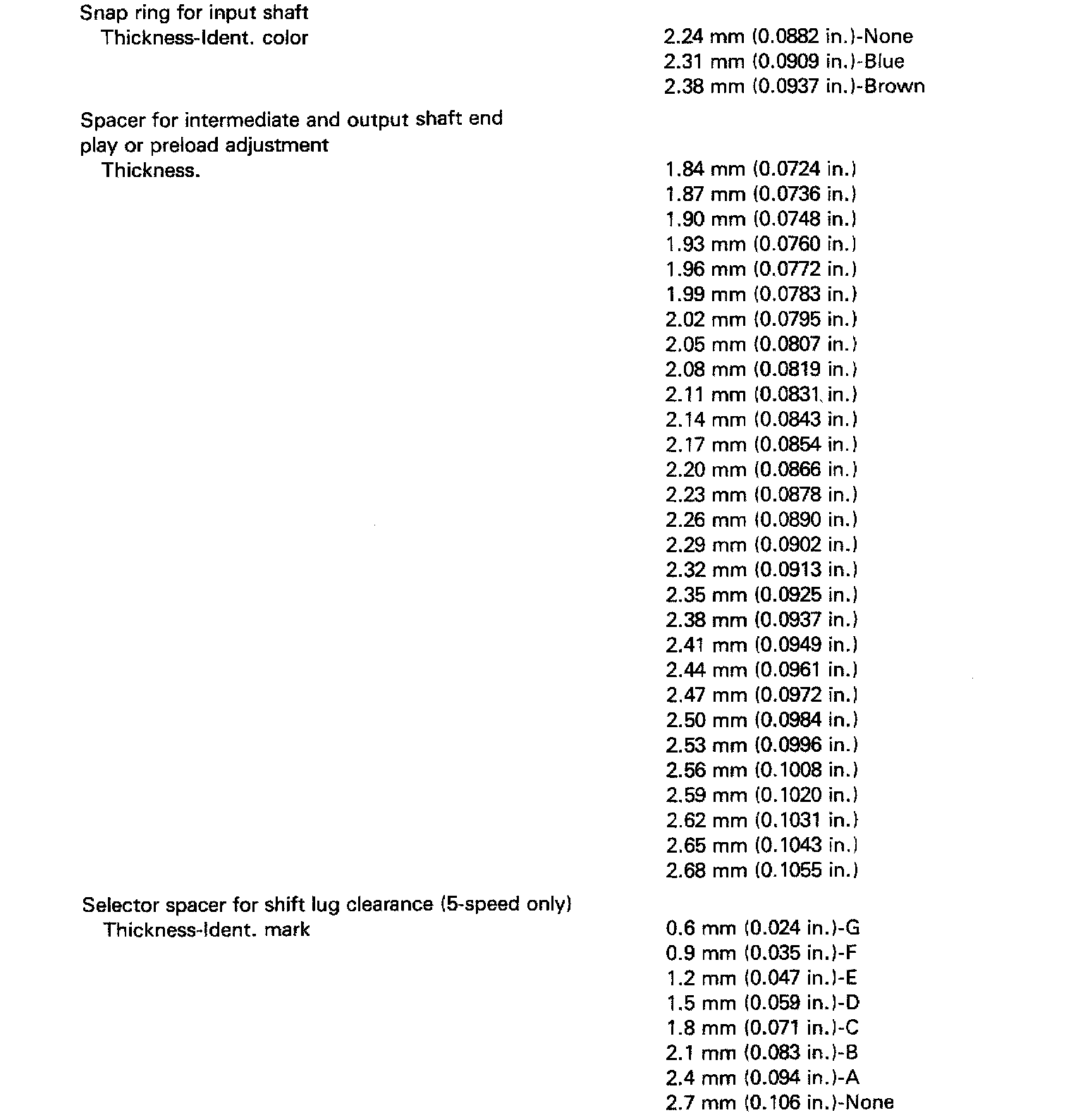

4/5-spd M/T, Input, Intermediate & Output Shaft End Play/Thickness:
