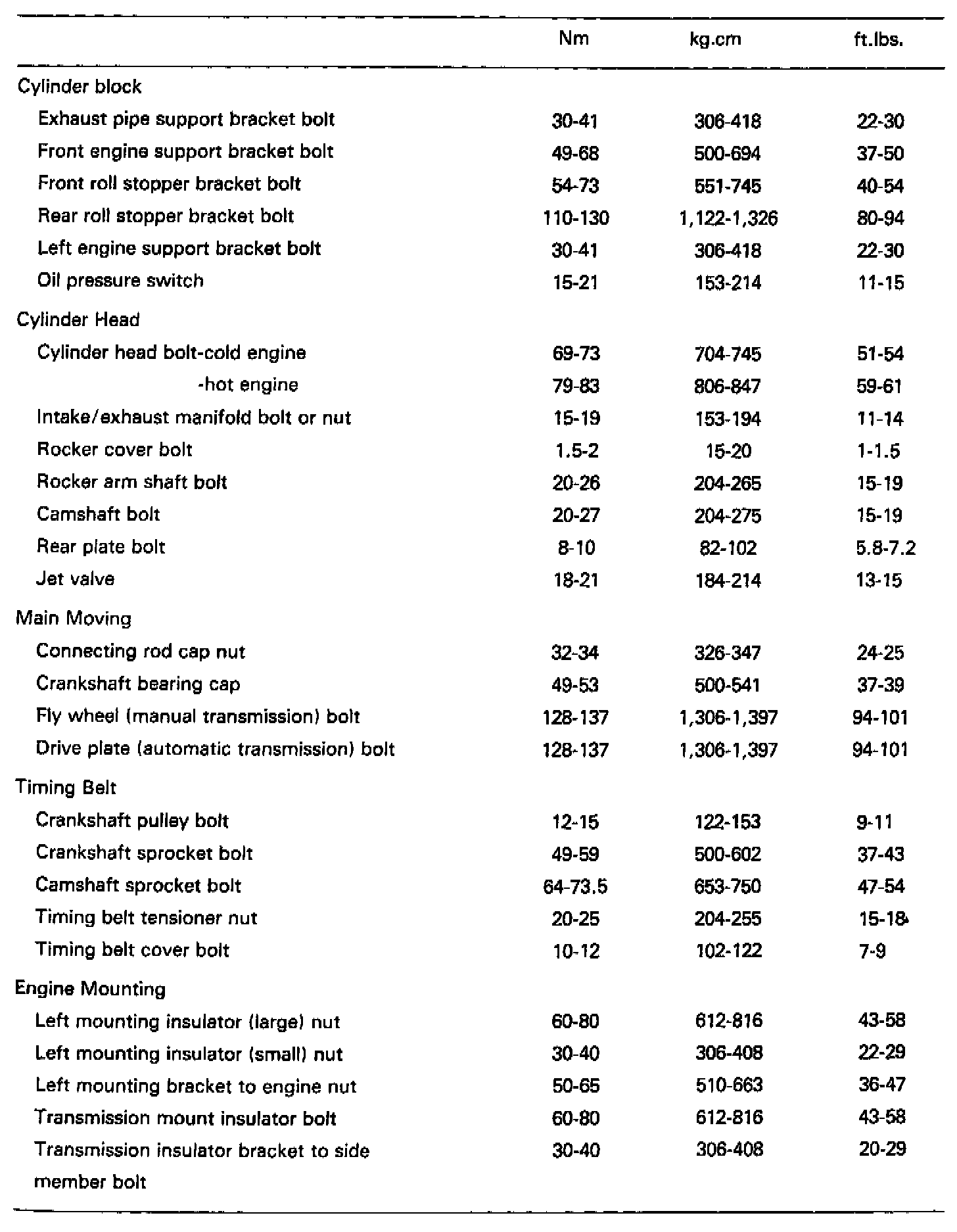

Torque Specifications




Cylinder Head Bolt Removal Sequence:




Cylinder Head Bolt Torque Sequence:
