Control Module HVAC: Locations

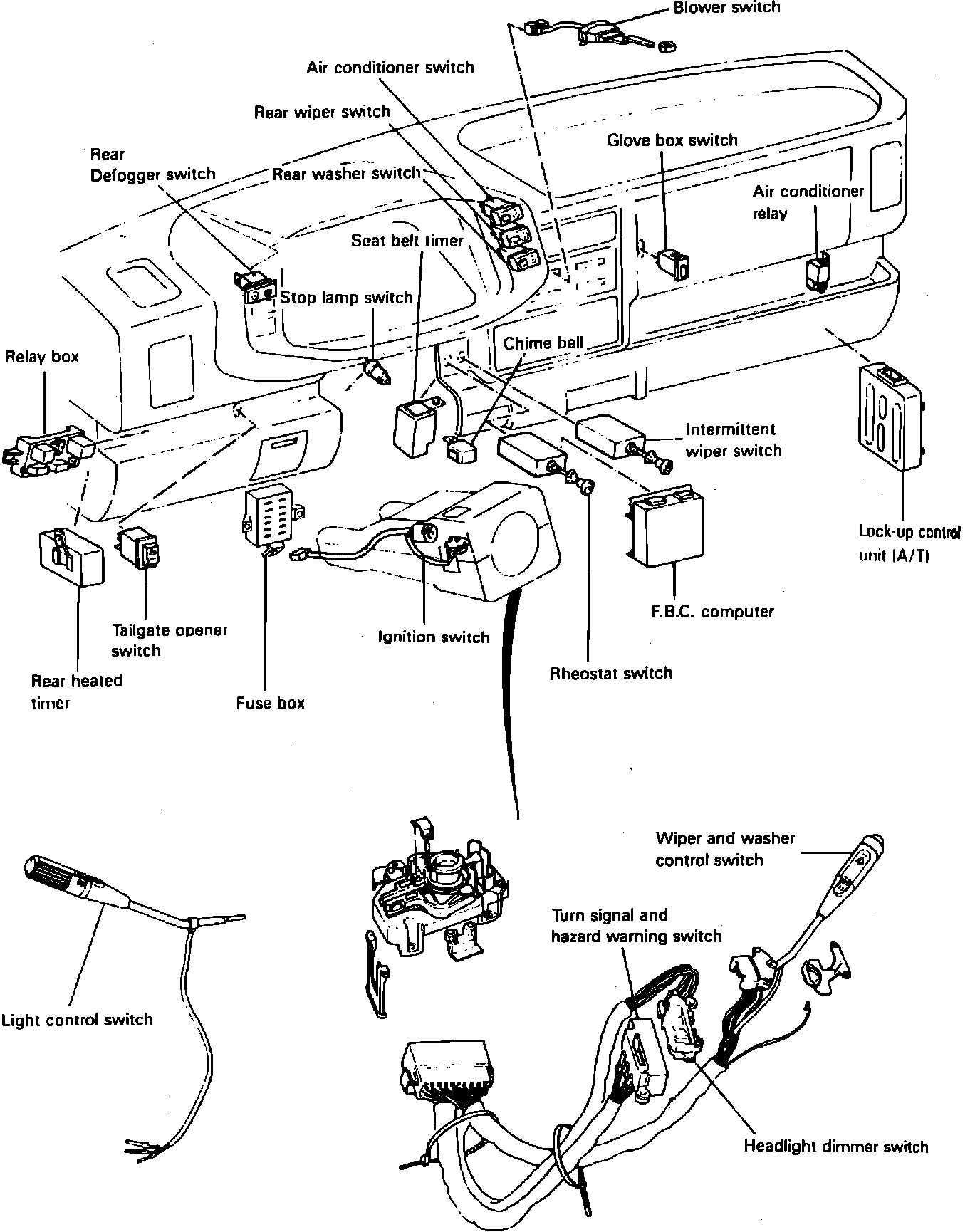

Dash & Steering Column Switches & Relays.:

LH Side Of I/P

Applicable to: Precis
