Code No. L0630 S/R Power Supply: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

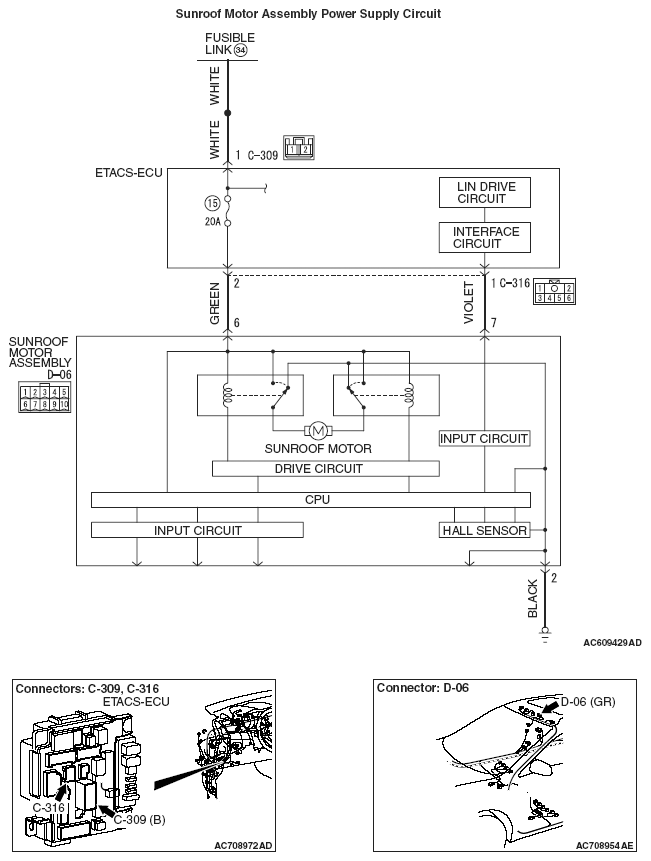

Fig 1: Sunroof Motor Assembly Power Supply Circuit Diagram
G05394984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
