Enrichment System

The enrichment system consists of metering jet and a solenoid-operated enrichment on-off valve. Valve provides additional fuel for main metering system. When additional fuel is required during heavy acceleration, heavy engine loads, cold start or warm-up operation, the ECU energizes the solenoid at pre-set duty cycles.

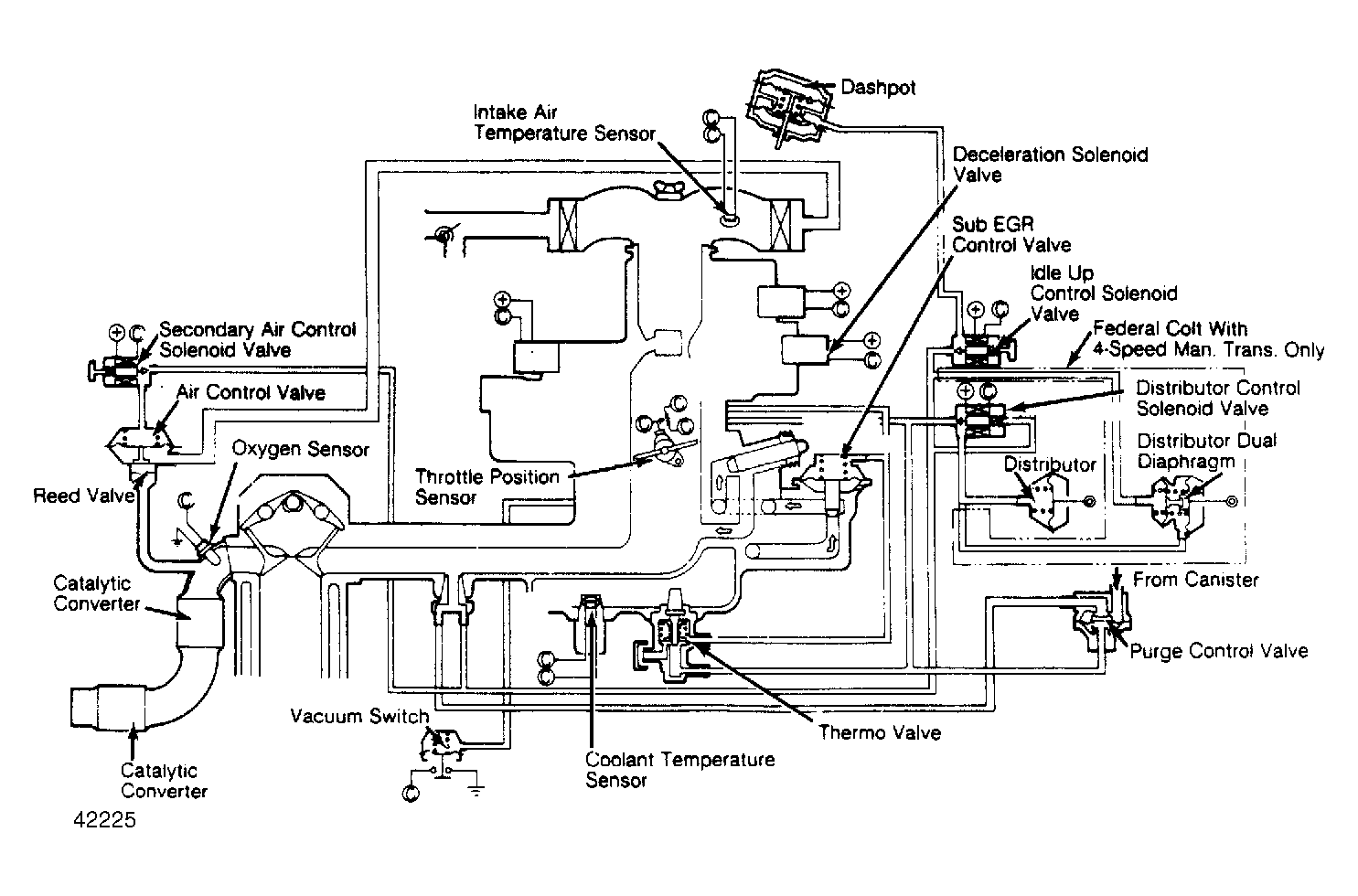

Fig 1: Feedback Carburetor System Colt is shown; other models are similar.
