Wiring Diagrams

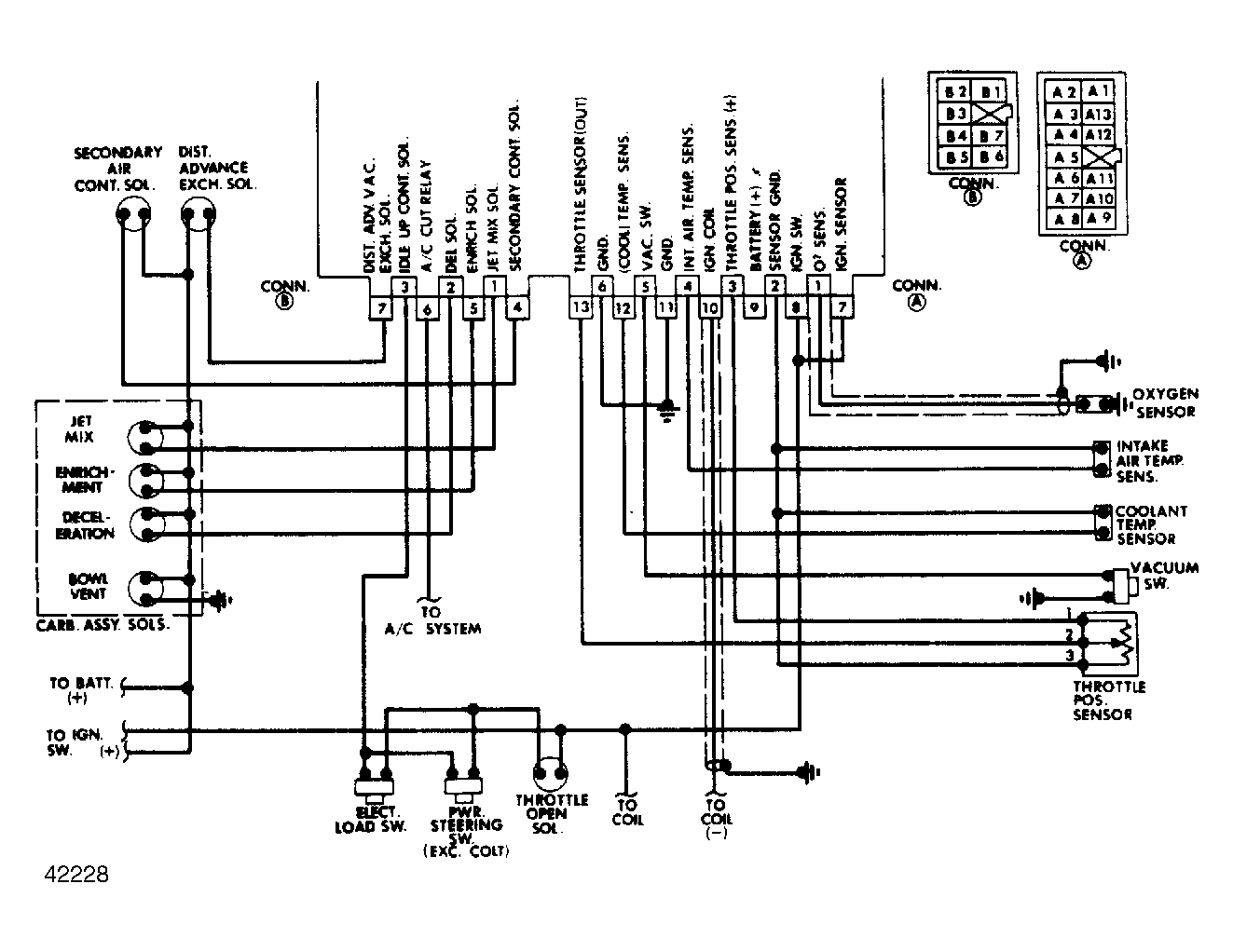

Fig 1: Feedback Carburetor Wiring Diagram for Cordia & Tredia
G42228

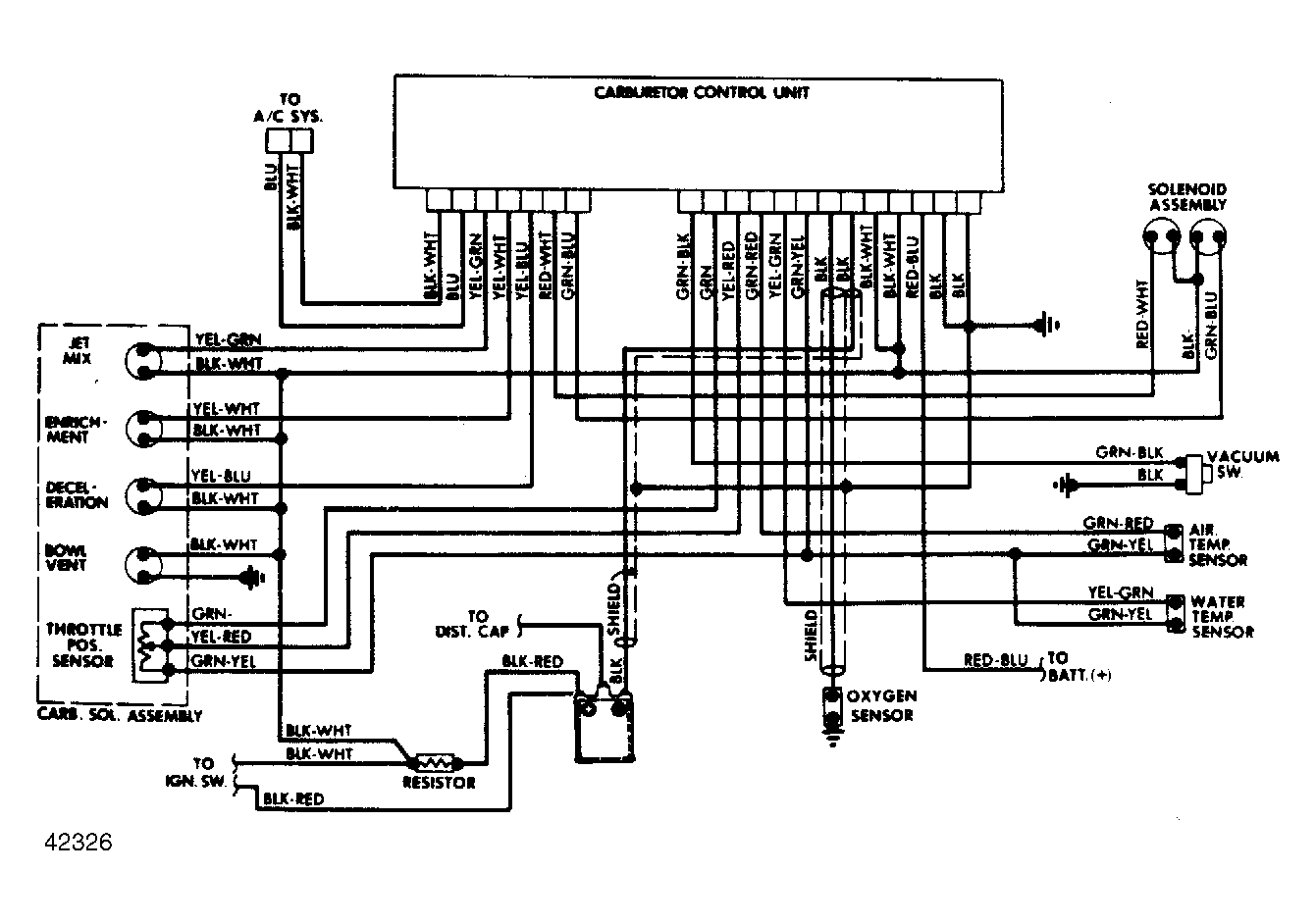

Fig 2: Feedback Carburetor Wiring Diagram for Montero
G42326
