Control Units
CONTROL UNITS LOCATION
Component
Location

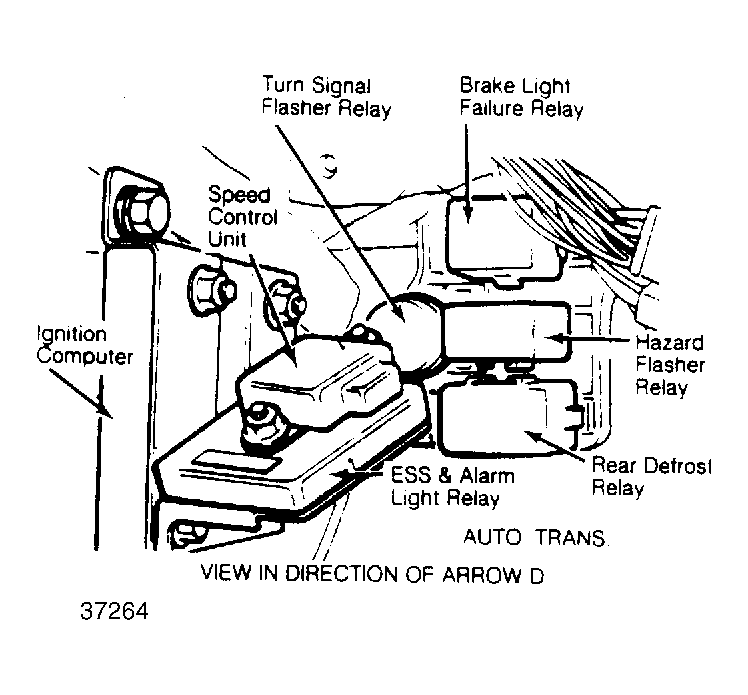

Ignition Computer
Below left side of dash. See
Figure
.
Electronic Control Transmission (ECT) Computer
Below left side of dash.
Speed Control Unit
Under left side of dash. See

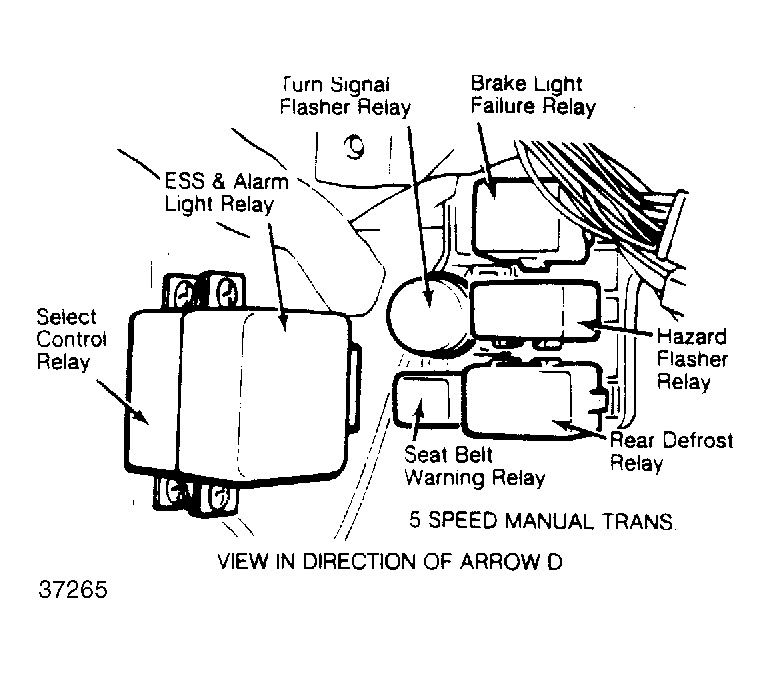

Figure
&
Figure
.
