Installing center rear undershield

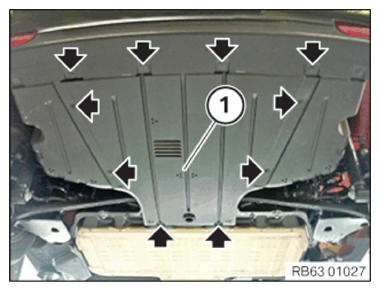

- Position the undershield (1) at the center in the rear.
- Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection to body |
| Screw |
tightening torque |
2.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
