Electromechanical Power Steering A67*1B Connector End View

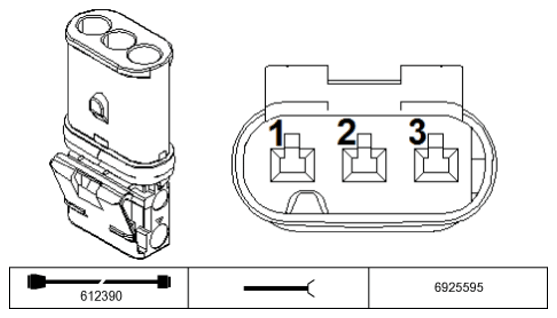

Fig 1: Electromechanical Power Steering A67*1B Connector End View
G11228001Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A67*1B

Pin Type Description /Signal type Connection /Measuring information
1 E Supply, terminal 15 Fuse F54
2 E/A FlexRay bus signal A258 Body Domain Controller, module 8
3 E/A FlexRay bus signal A258 Body Domain Controller, module 8
