Head Unit A42*17B Connector End View

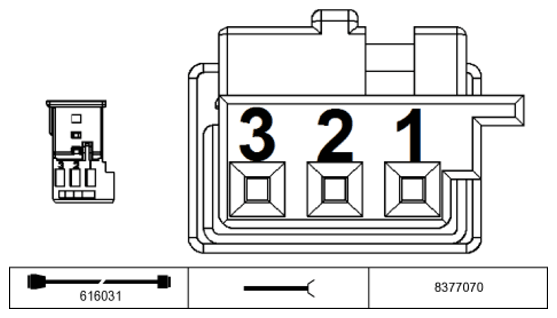

Fig 1: Head Unit A42*17B Connector End View
G11234417Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A42*17B

Pin Type Description /Signal type Connection /Measuring information
1 M Shield Electrochromic interior rear view mirror
2 E Data cable toll function Electrochromic interior rear view mirror
3 E Data cable toll function Electrochromic interior rear view mirror
