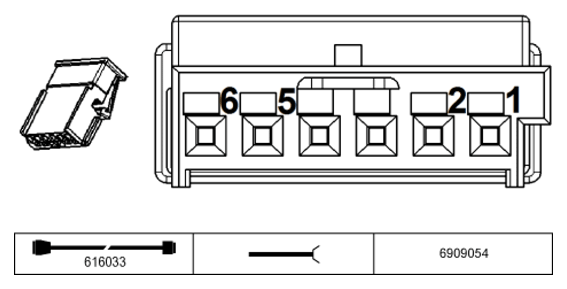

Roof Operating Unit SX14288A Connector End View
Pin Assignments At Plug Connector X14288
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal, switch lighting blue | Footwell module |
| 2 | E | Signal, switch lighting orange | Footwell module |
| 3 | A | Signal, sunroof switch | Sunroof |
| 4 | A | Signal, sunroof switch | Sunroof |
| 5 | A | Signal, sunroof switch | Sunroof |
| 6 | E | Signal, switch lighting | Footwell module |
