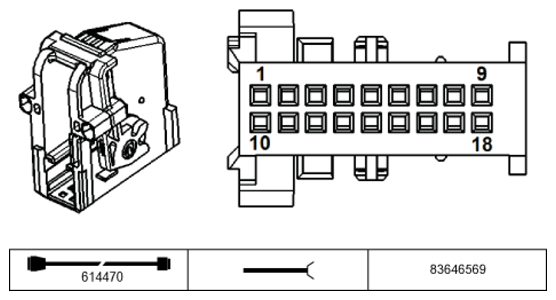

Park Distance Control (PDC) SX18013A Connector End View
Pin Assignments At Plug Connector X18013
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | E | Ground | Ultrasonic sensor, rear right |
| 3 | E | Ground | Ultrasonic sensor, rear center right |
| 4 | -- | Not occupied | |
| 5 | A | Positive supply | Ultrasonic sensor, rear right |
| 6 | A | Positive supply | Ultrasonic sensor, rear center right |
| 7 | A | Positive supply | Ultrasonic sensor, rear center left |
| 8 | A | Positive supply | Ultrasonic sensor, rear left |
| 9 | -- | Not occupied | |
| 10 | E | Ground | Ultrasonic sensor, rear center left |
| 11 | E | Ground | Ultrasonic sensor, rear left |
| 12 | -- | Not occupied | |
| 13 | -- | Not occupied | |
| 14 | E | Sensor signal | Ultrasonic sensor, rear right |
| 15 | E | Sensor signal | Ultrasonic sensor, rear center right |
| 16 | E | Sensor signal | Ultrasonic sensor, rear center left |
| 17 | E | Sensor signal | Ultrasonic sensor, rear left |
| 18 | -- | Not occupied |
