61 31 ... Overview of switches in steering wheel area

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

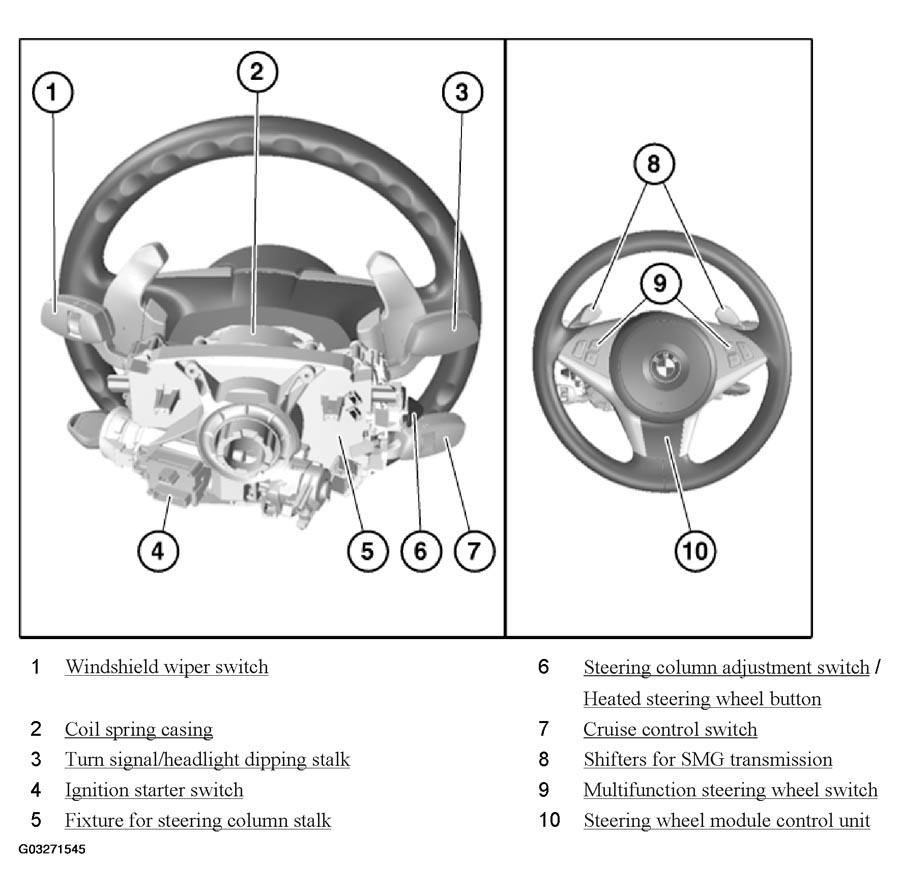

Fig 1: Identifying Switches In Steering Wheel Area
G03271545Courtesy of BMW OF NORTH AMERICA, INC.
