31 5 110 Removal fork

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing output shaft from front axle gearbox (AWD)

Series: E53, E60, E61, E83, E90, E91, E92

SI number: 1 17 05 (212)

Order number: 31 5 110

Removal fork

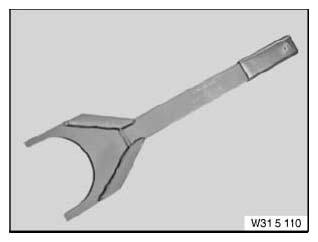

Fig 1: Identifying Removal Fork (31 5 110)
G04739425Courtesy of BMW OF NORTH AMERICA, INC.
