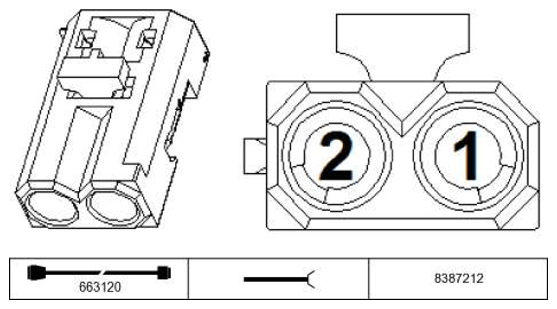

CCC/CHAMP SX13815A Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X13815
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E/A |
Signal, MOST bus |
Component(s) according to vehicle equipment level |
| 2 |
E/A |
Signal, MOST bus |
Component(s) according to vehicle equipment level |
