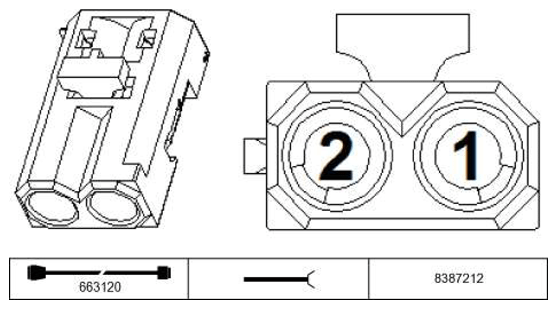

ULF-SBX SX14134A Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X14134
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E |
Signal, MOST bus |
Component(s) according to vehicle equipment level |
| 2 |
A |
Signal, MOST bus |
Component(s) according to vehicle equipment level |
