Special Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Cross Member (00 0 200)

G00157849

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Engine Lifter (11 0 000)

G00157870

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Fixture (31 2 113)

G00155833

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Hood Stay (51 2 170)

G00157871

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Press-Off Tool (32 3 090)

G00155832

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Identifying Puller Fixture (33 4 400)

G00148271

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying Removal & Installation Tool (33 2 110)

G00103357

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Spacer Ring (33 2 150)

G00162752

Courtesy of BMW OF NORTH AMERICA, INC.

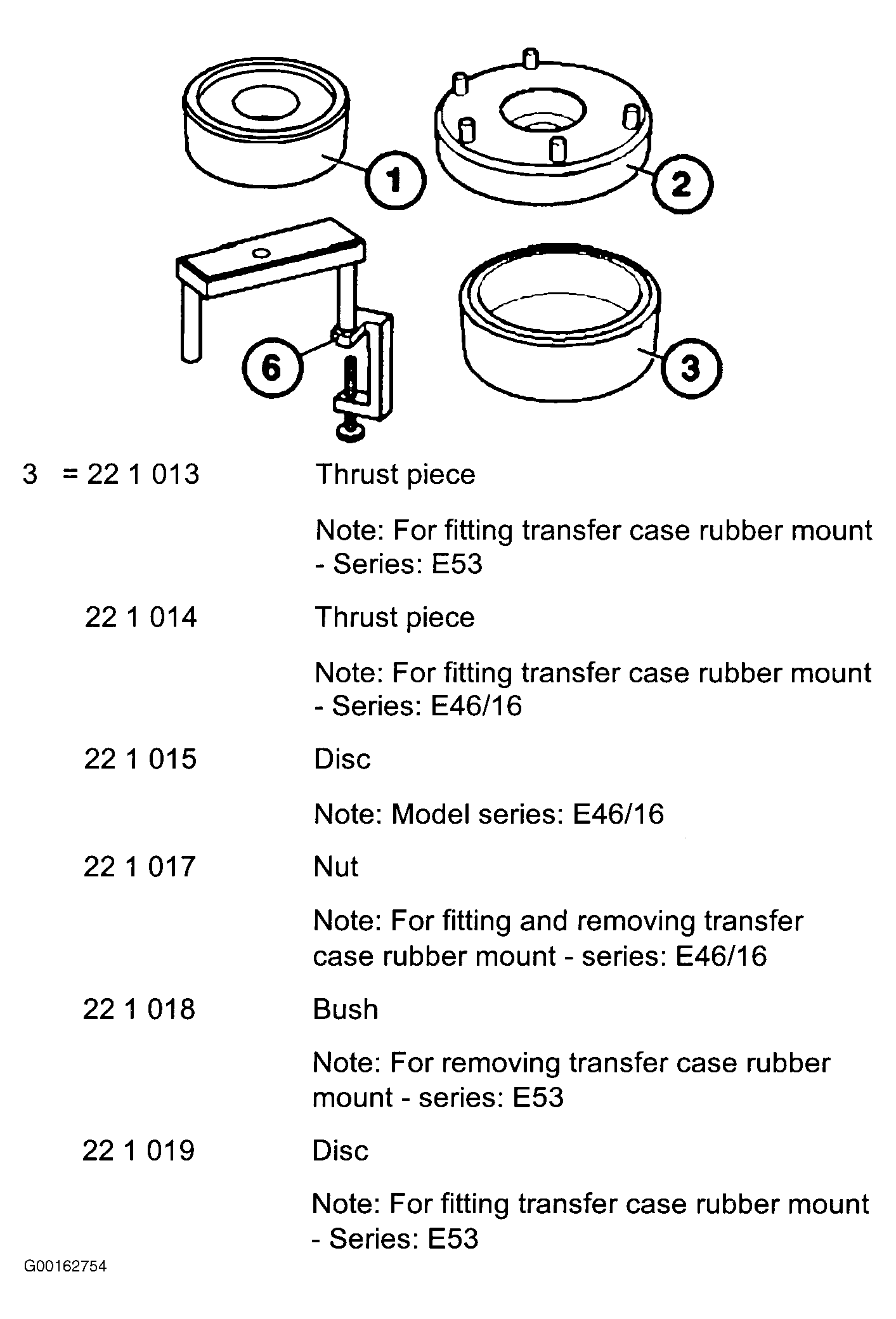

Fig 9: Identifying Set Of Tools (22 1 010)

G00162754

Courtesy of BMW OF NORTH AMERICA, INC.

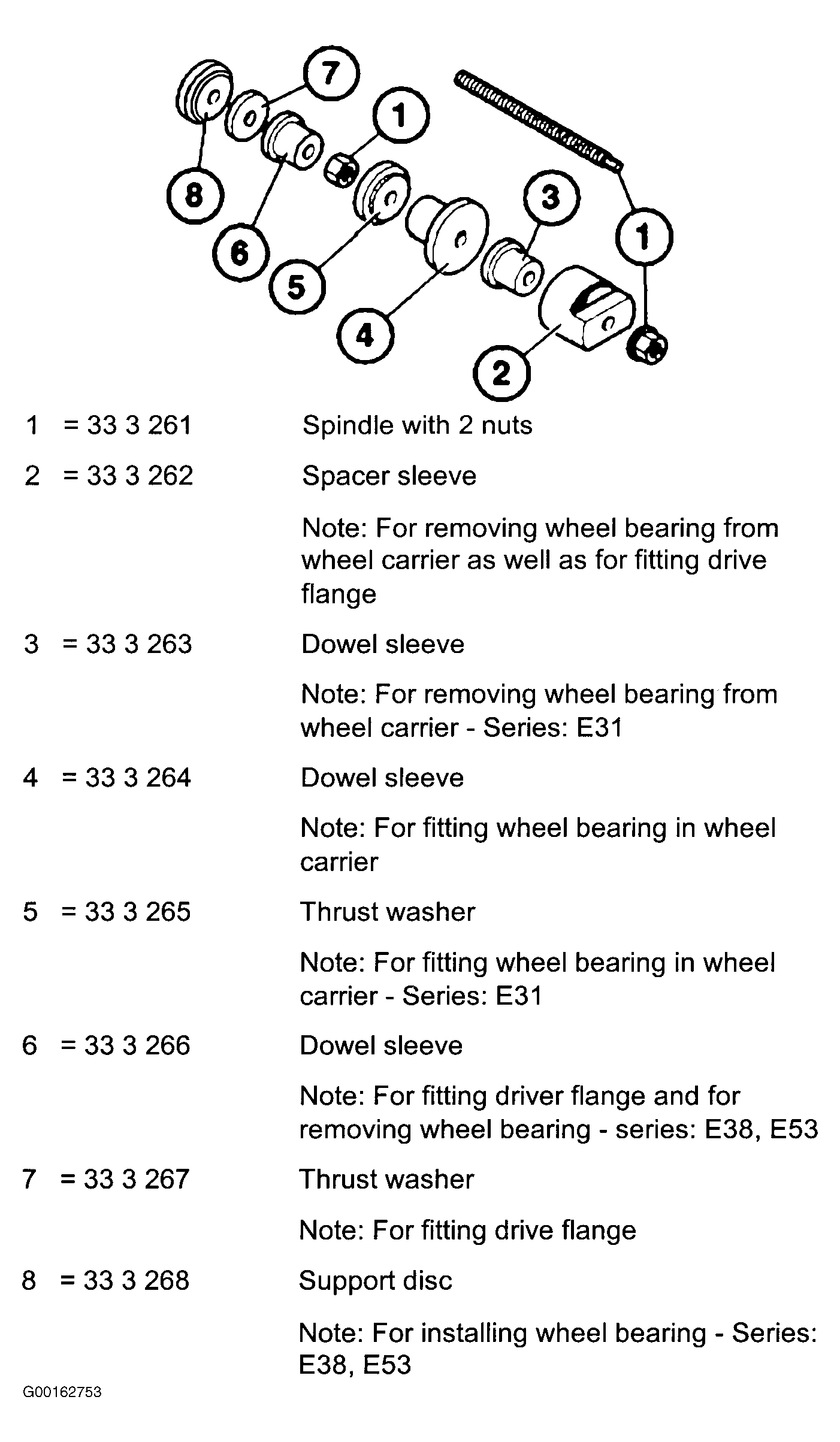

Fig 10: Identifying Set Of Tools (33 3 260)

G00162753

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Identifying Set Of Tools (33 4 200)

G00148272

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Identifying Socket Wrench Socket (31 2 210)

G00155836

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Identifying Spring Holder Set (31 3 350)

G00148275

Courtesy of BMW OF NORTH AMERICA, INC.

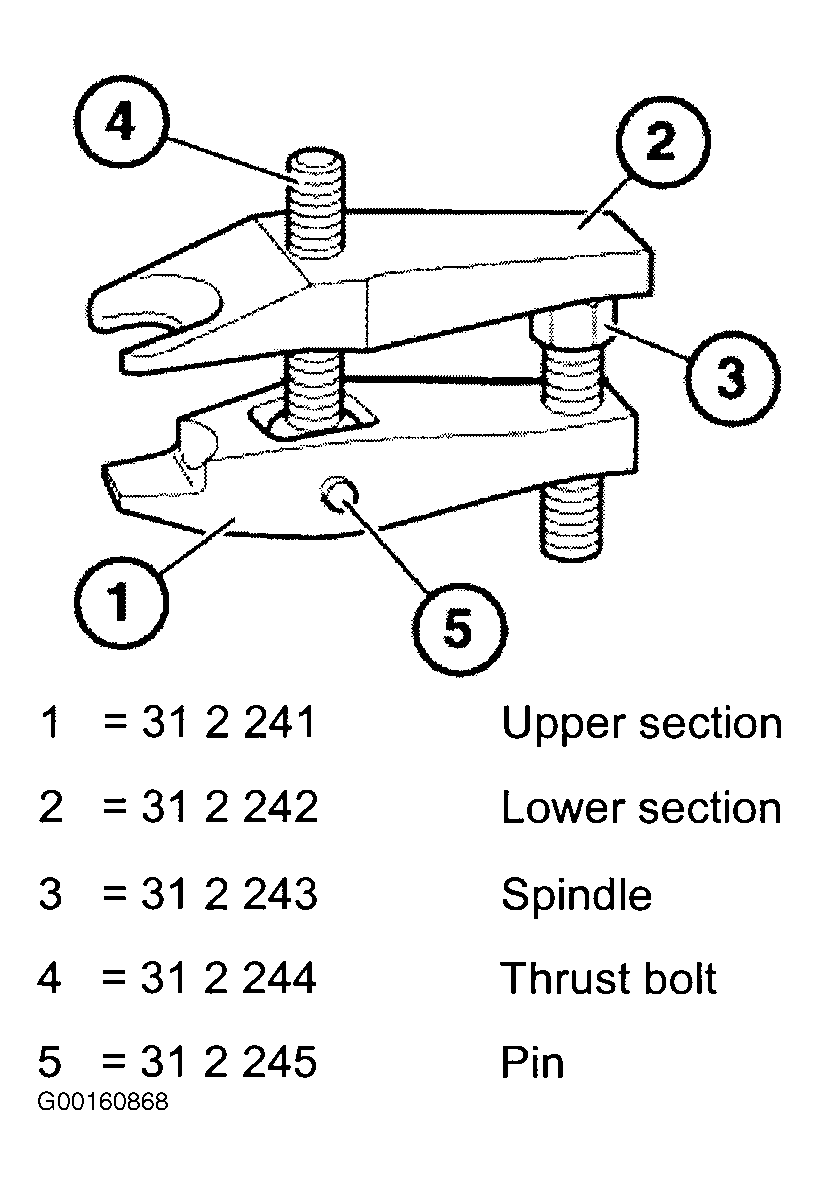

Fig 14: Identifying Tool (31 2 240)

G00160868

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Identifying Tool (31 2 260)

G00160897

Courtesy of BMW OF NORTH AMERICA, INC.
