Assembly Of Fast-Release Coupling

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Press in lock (1) before installing fast-release coupling.

Push on hose.

Fast-release coupling must audibly snap into place.

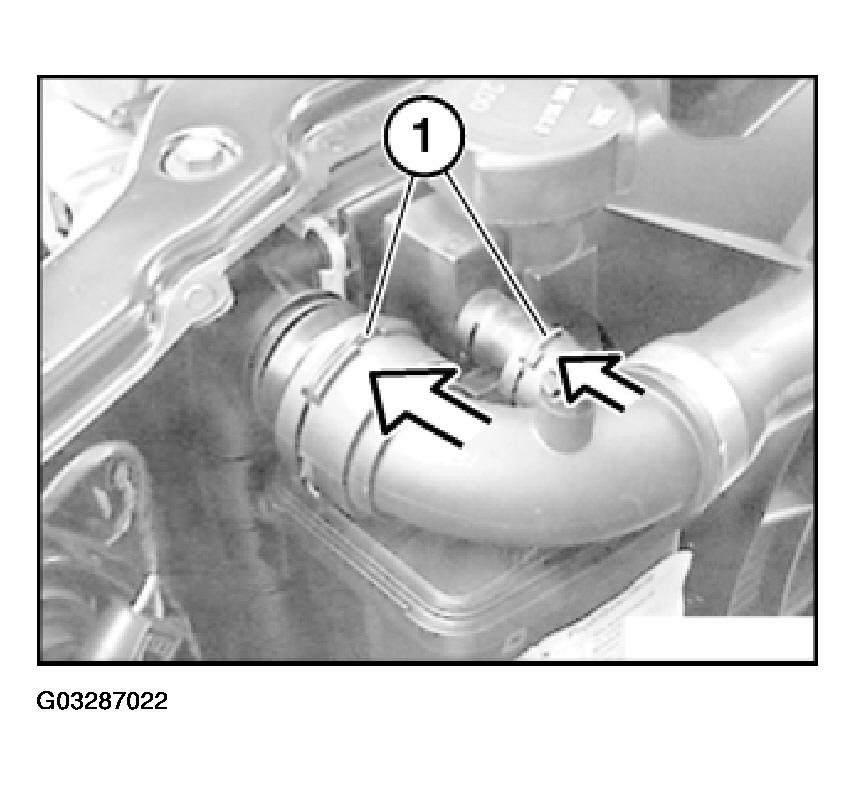

Fig 1: Assembling Fast-Release Coupling
G03287022Courtesy of BMW OF NORTH AMERICA, INC.
