Typical Use: A/C Performance Quick Check

WARNING: This page does not describe the selected car, but rather 41 other vehicles, including the 2003 BMW M5, 2003 BMW M3, 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Test conditions = 90°F & 50% Humidity

Note ambient temperature
Close all windows and doors.
Engine Speed = 1500-2000 RPM.
Blower Volume = Medium Speed
Temperature Wheel = "Max Cold
"Snowflake" Button = A/C On
Test conditions > 3 minutes

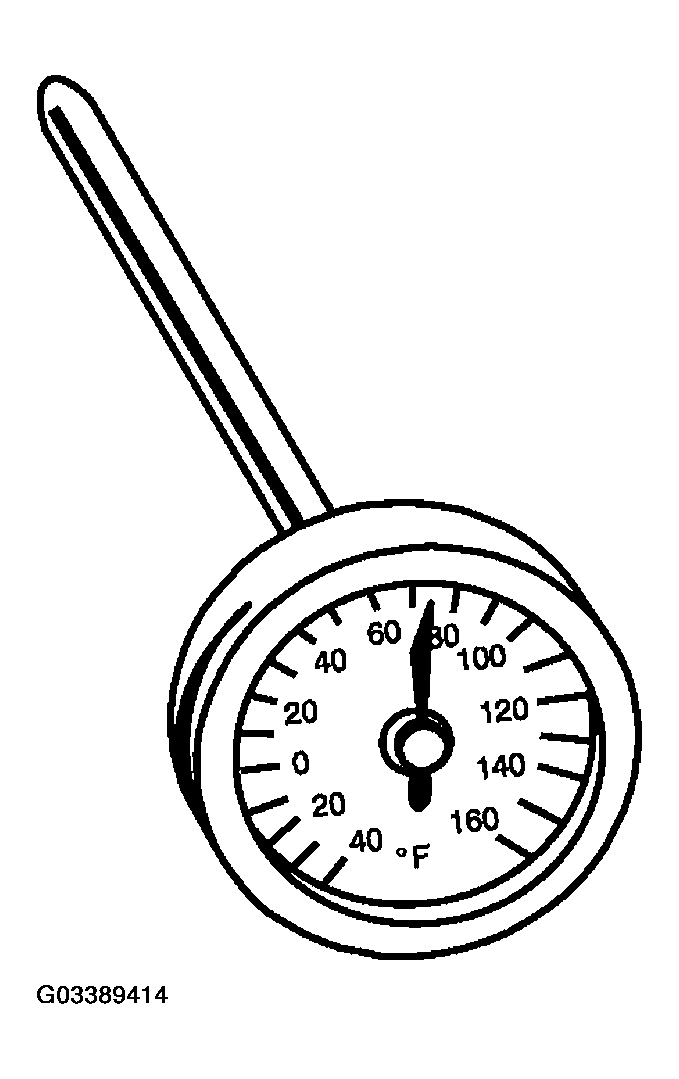

Fig 1: Identifying Temperature Sensing Equipment (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

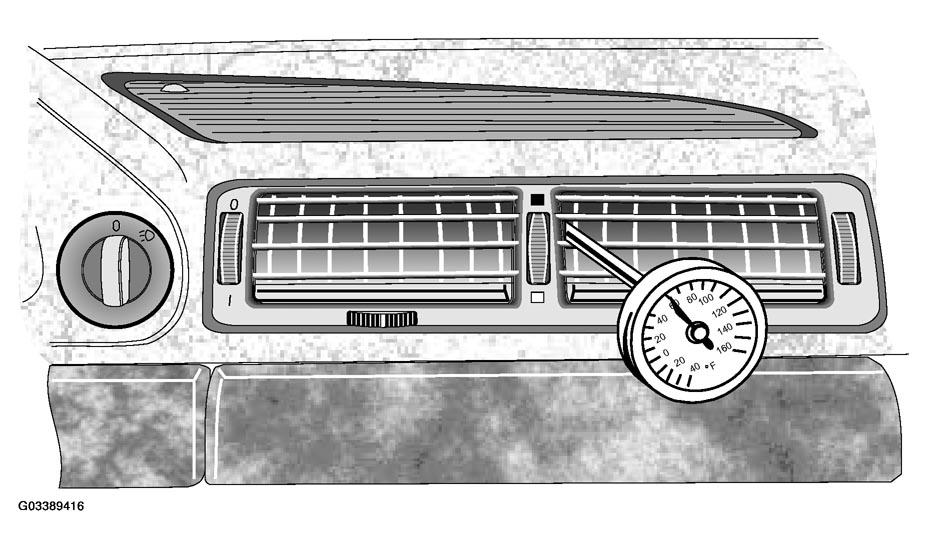

Fig 2: Identifying Temperature Sensing Equipment (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Temperature Sensing Equipment (3 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.
Center vent discharge = .20°F less than the ambient temperature.
