Cooper JCW Convertible (R57) L4-1.6L Turbo (N14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top Control Module
>>

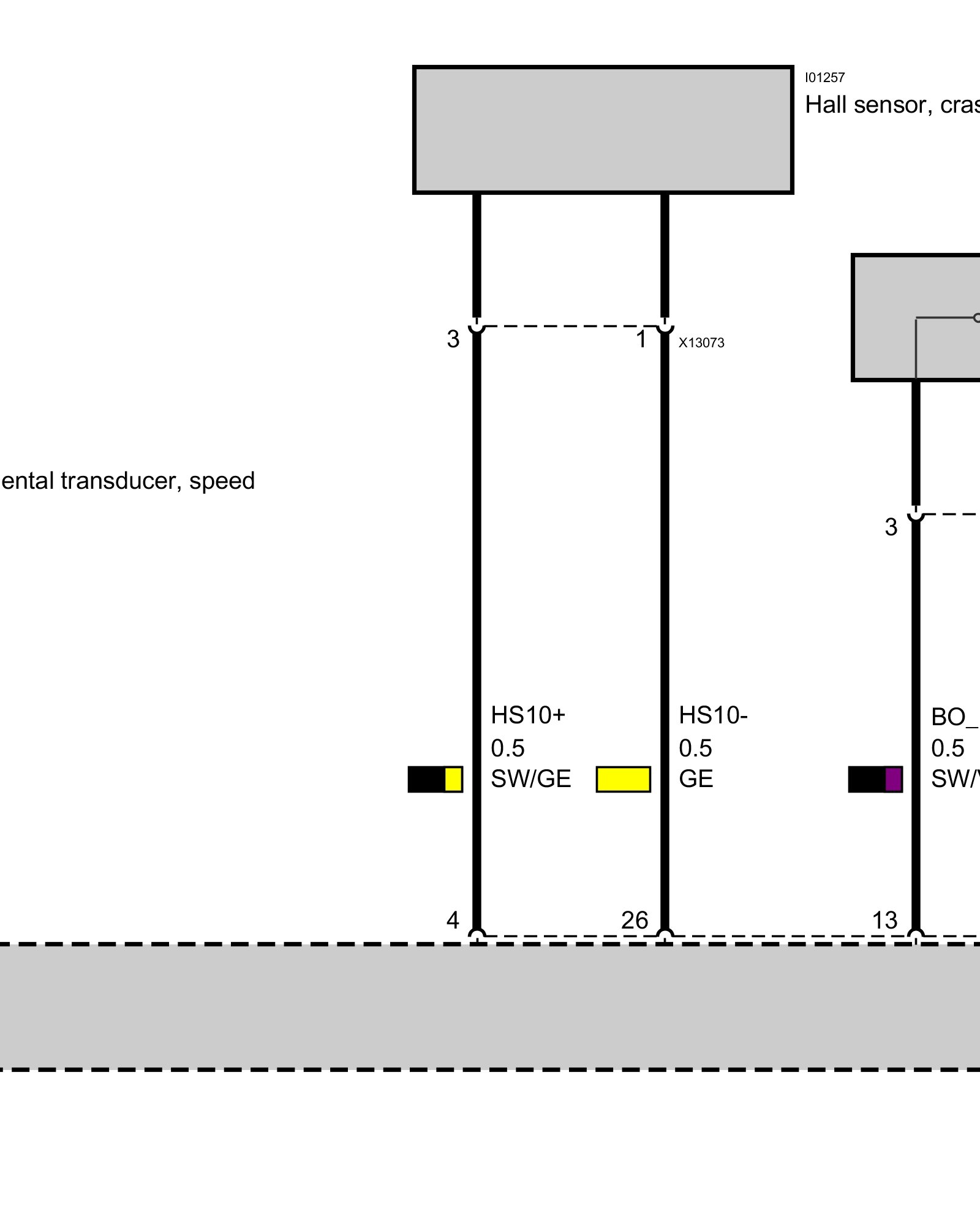

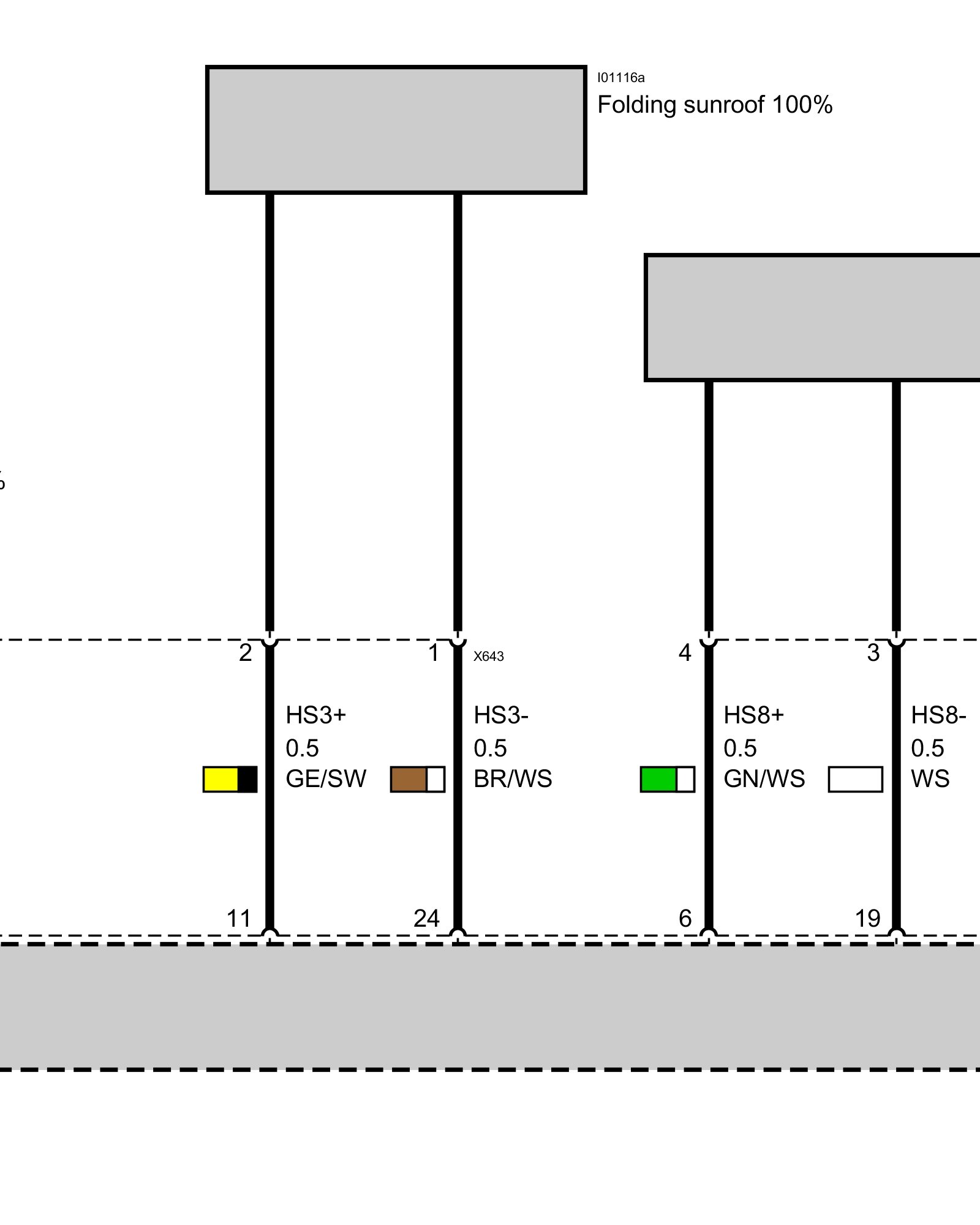

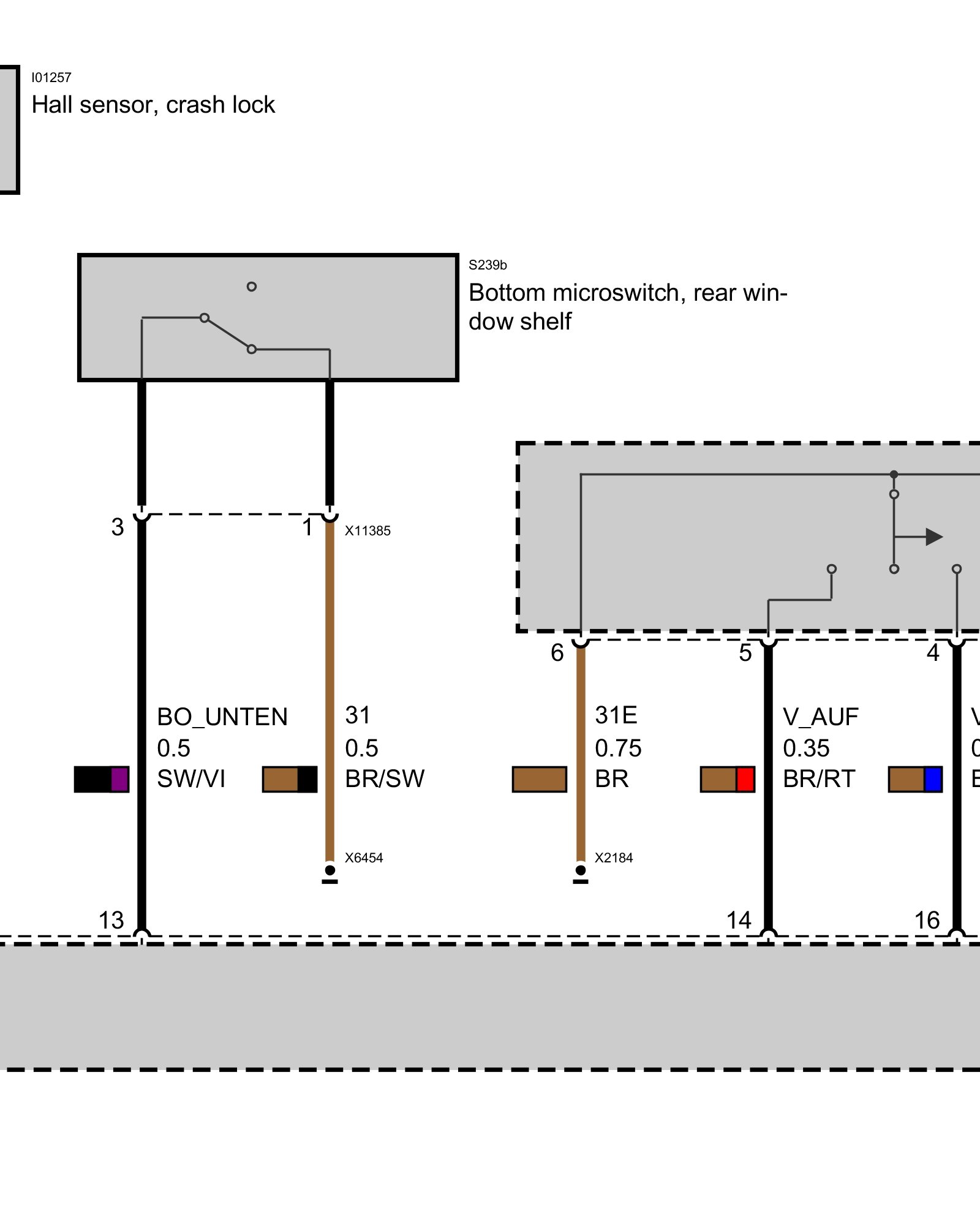

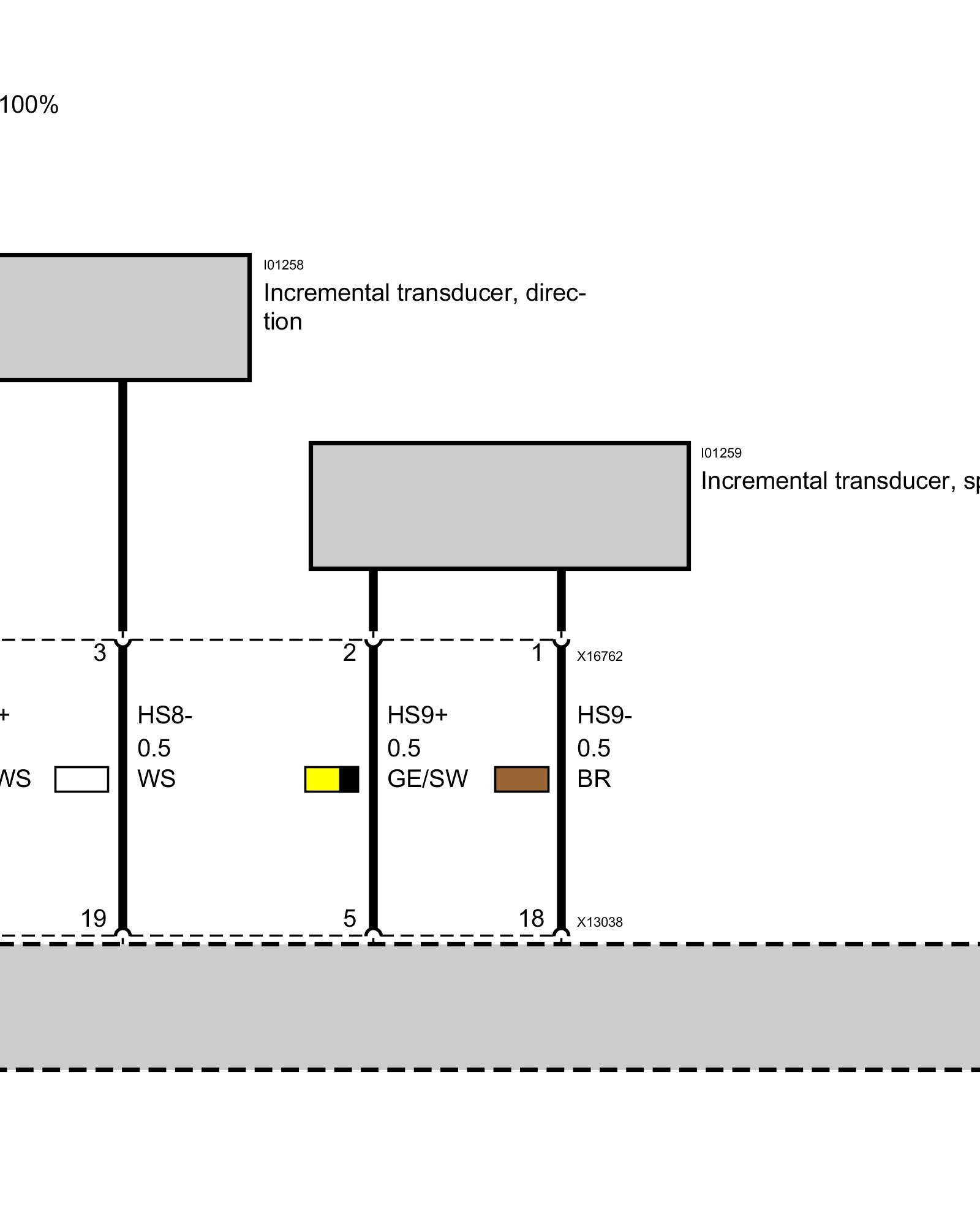

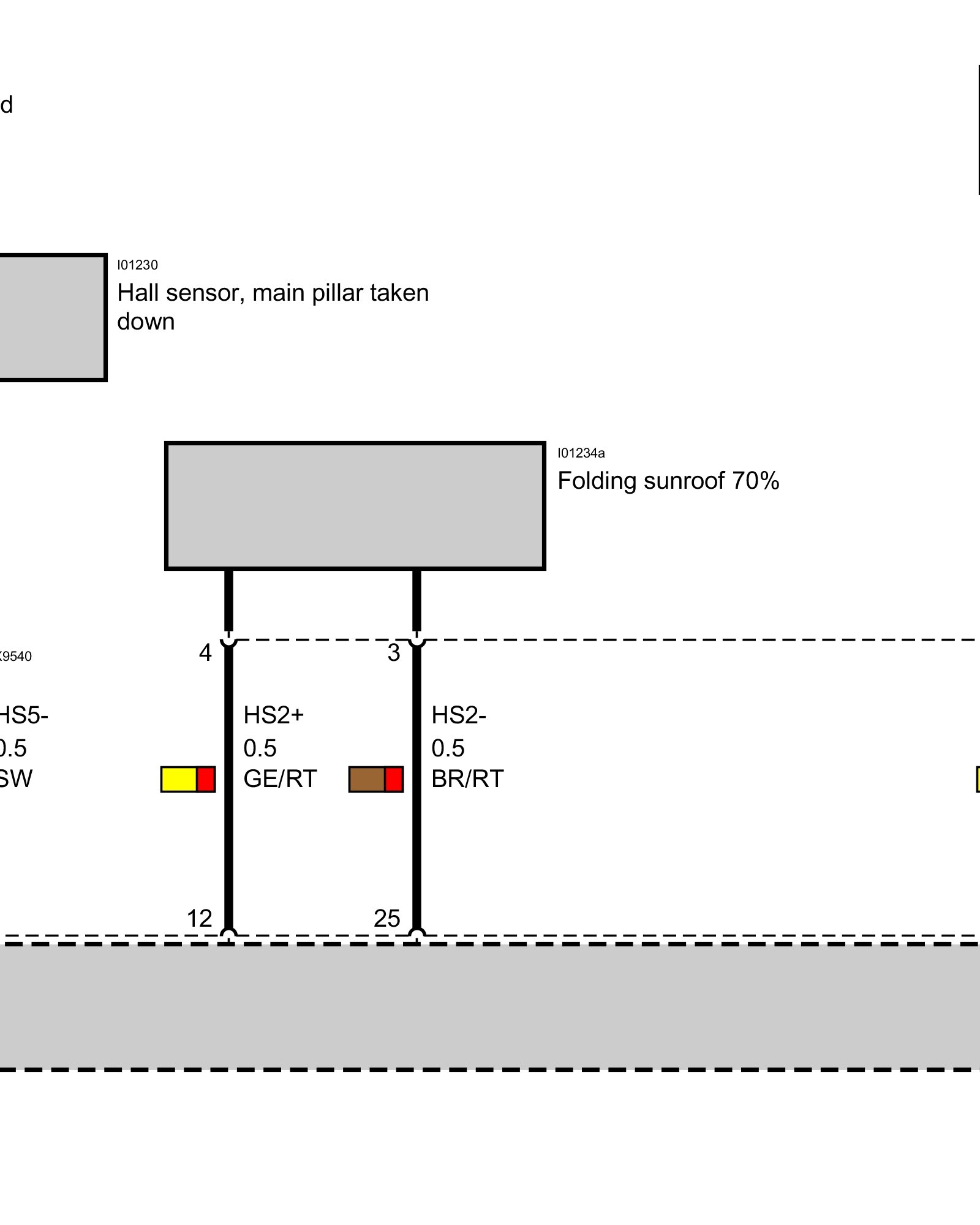

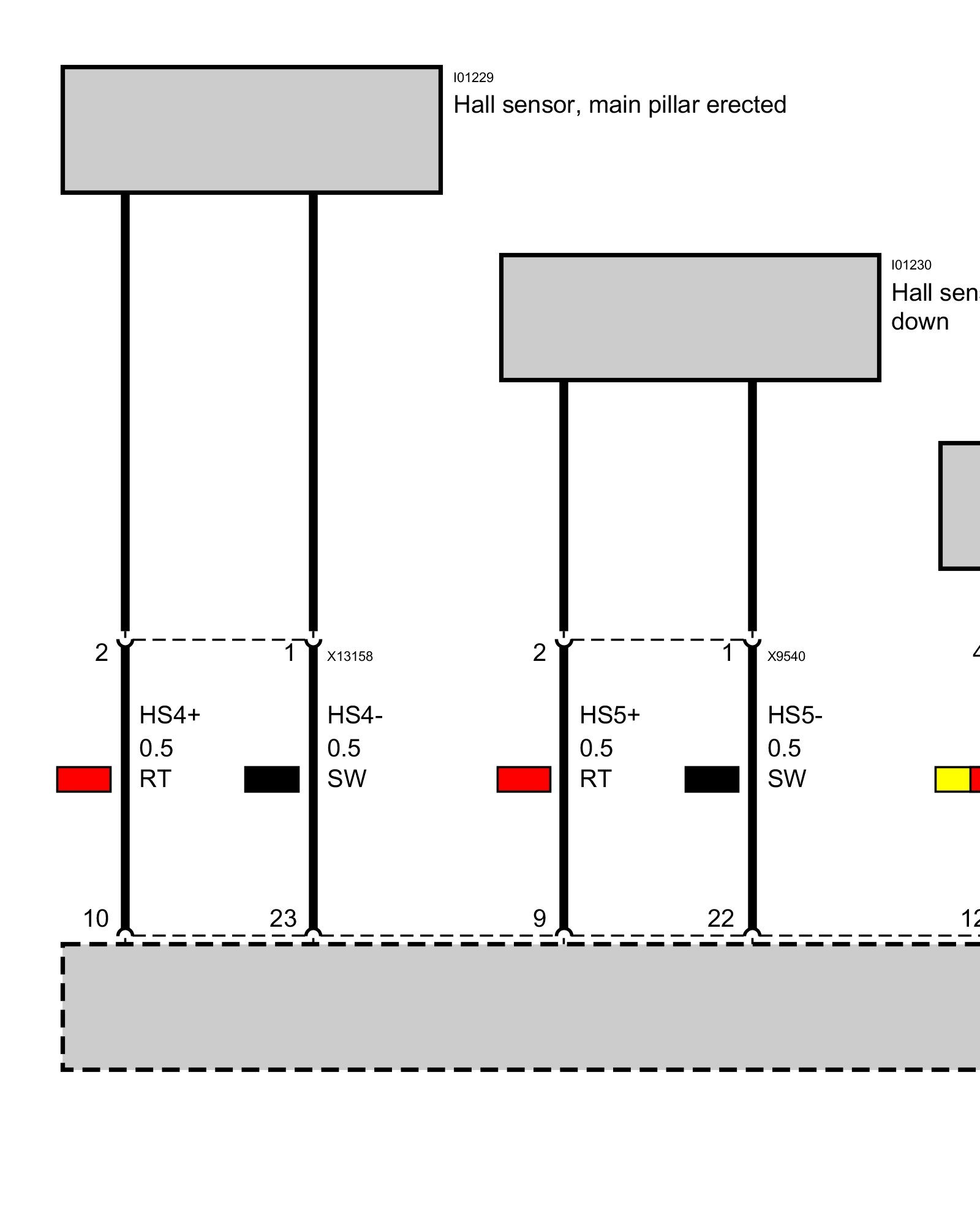

Sensor System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Sensor System
Sensor System
