Removing and Installing/Replacing Control Unit/Module for Seat Heating

61 35 095 - Removing and installing/replacing control unit/module for seat heating





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Move seat completely towards rear/top.

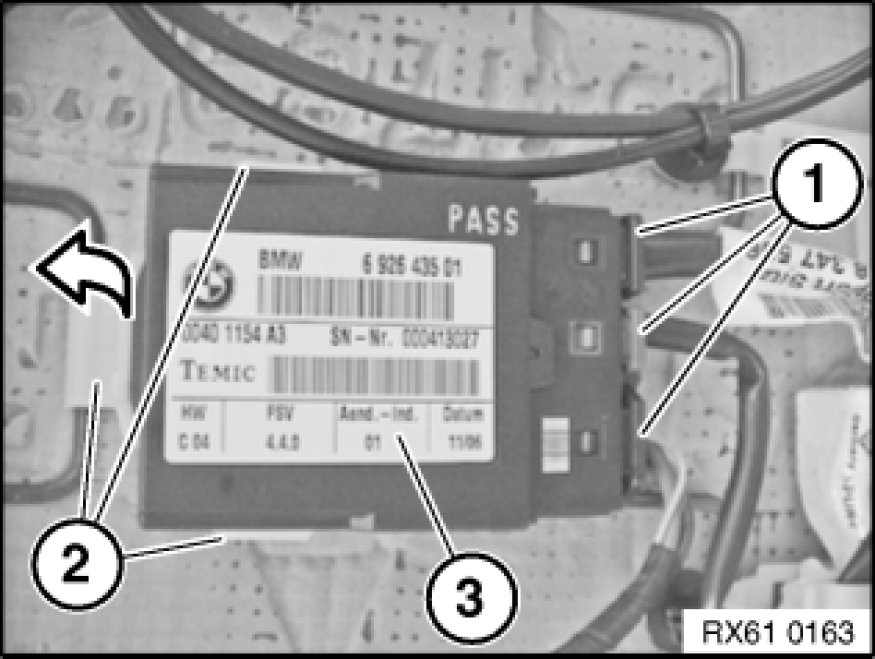

Disconnect plug connection (1).
Unlock catches (2) and remove control unit/module for seat heating (3) in direction of arrow.

Installation Note:
Catches (2) must not be damaged.
Make sure control unit/module for seat heating (3) is correctly seated on holder.
