Heater Core Temperature Sensor / Switch: Service and Repair



64 11 951 Replacing temperature sensor for heater







Necessary preliminary work:
- Remove centre console cover

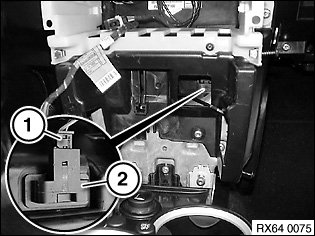

Disconnect plug connection (1).
Withdraw temperature sensor (2).
