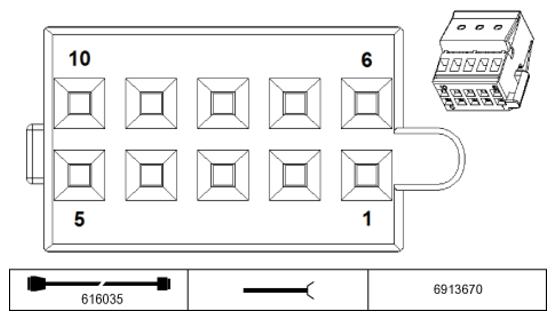

CCC/CHAMP SX13820A Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X13820
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E/A |
LVDS data signal |
Central information display |
| 2 |
M |
Ground |
Central information display |
| 3 |
E/A |
LVDS data signal |
Central information display |
| 4 |
M |
Ground |
Central information display |
