Ignition Switch: Service and Repair

61 31 021 Removing And Installing/Replacing Emergency Starting Coil







Necessary preliminary tasks:
- Remove steering column shroud lower section

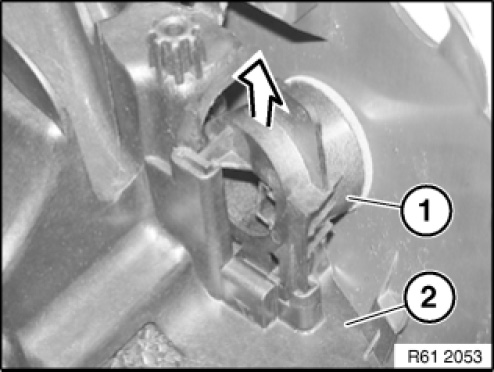

Release emergency starting coil (1) and pull in direction of arrow out of steering column shroud (2).

Installation note:
Make sure emergency starting coil (1) is correctly seated.
