Convertible Top Control Module: Service and Repair

61 35 147 - Removing and installing/replacing Convertible top module





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove left luggage compartment wheel arch trim

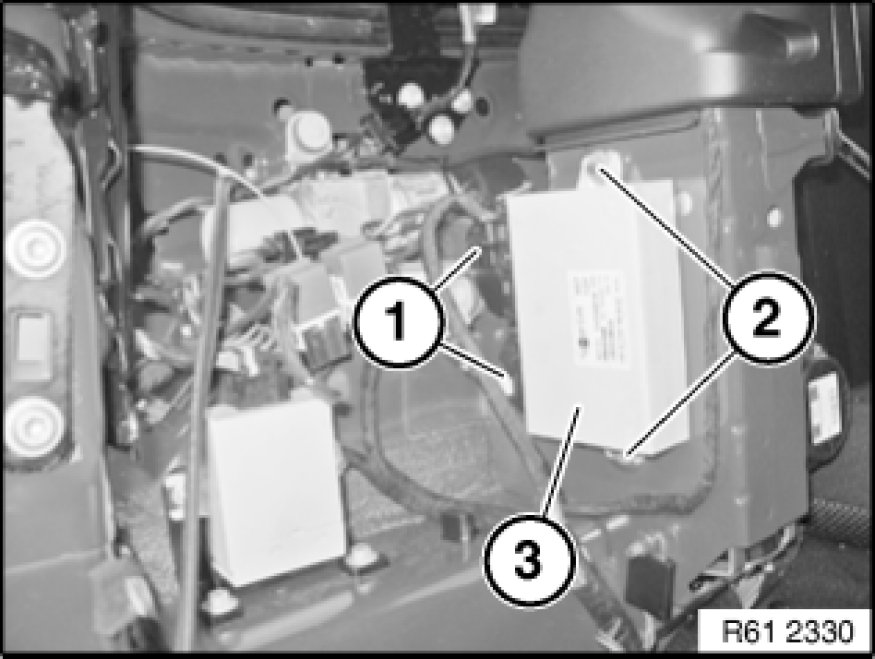

Unlock plug connections (1) and disconnect.
Unscrew nuts (2).
Remove Convertible top module (3).





Replacement:
Carry out programming/coding Programming and Relearning.
