32 00 601 Adjusting Toe-In on Front Axle

32 00 601 Adjusting toe-in on front axle

Note:
If wheel camber is not in the setpoint value range, it is necessary to carry out troubleshooting.

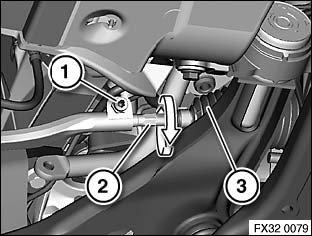

Adjusting toe: Move wheels and steering gear to straight-ahead position.

Release screw (1).

Adjust toe-in to specified value by turning tie rod at hexagon (2).

Installation:
Make sure that boot (3) of tie rod does not turn as well.

Installation:
Tighten tie rod end to tie rod 27.5 Nm
