61 13... Inline plugs, 2-pin, System MPQ 2.8

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

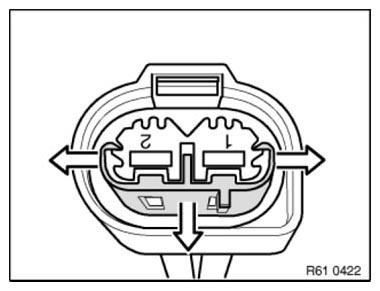

Press catch on outside in direction of arrow and remove towards top.

Fig 1: Removing Catch
G08422379Courtesy of BMW OF NORTH AMERICA, INC.

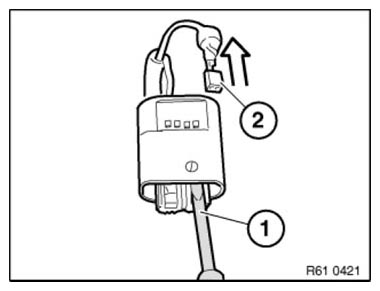

Press down retaining hook (1) with screwdriver and pull out cable and contact (2) towards rear.

Fig 2: Pulling Out Cable And Contact
G08422380Courtesy of BMW OF NORTH AMERICA, INC.
