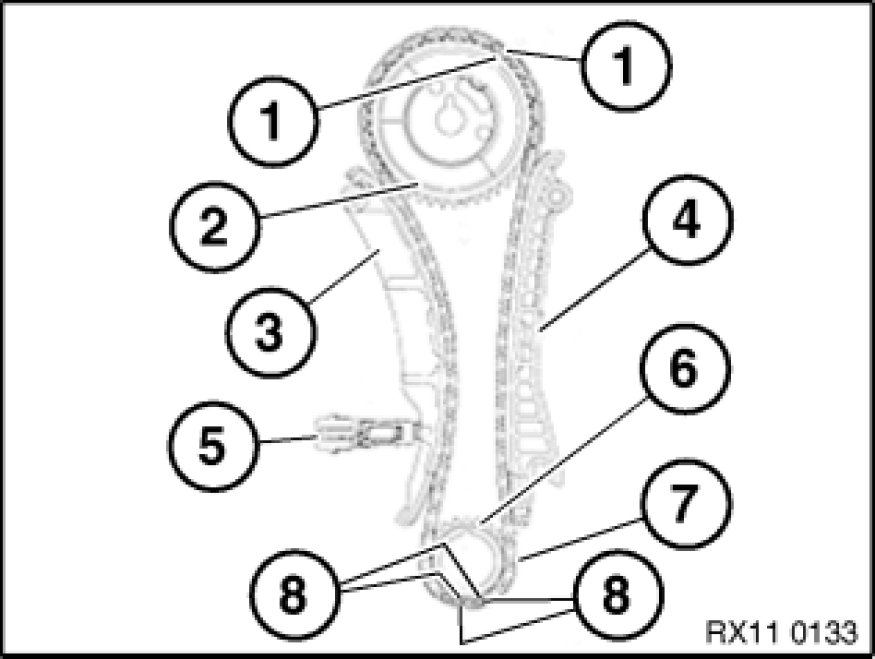

Timing Component Alignment Marks: Locations

The following is taken from "Replacing timing chain"
Service and Repair






1. Camshaft adjustment mark lines up with colored chain link.
2. Camshaft gear.
6. Crankshaft gear.
7. Chain.
8. Crankshaft adjustment mark lines up with the two colored chain links.
